Product Overview

الSpring Loaded Silent Check Valve is a precision-engineered non-return valve designed for reliable backflow prevention in low-pressure and sensitive fluid systems. Featuring a stainless steel body and a spring-loaded poppet mechanism, this valve provides instant, silent closure with an exceptionally low cracking pressure—making it ideal for applications where even minimal backflow could compromise system integrity. The vertical mount design enables installation in tight spaces and vertical piping configurations where conventional swing check valves cannot be used. Manufactured from premium stainless steel with PTFE/RPTFE/PPL sealing options, this valve delivers excellent corrosion resistance, reliable sealing, and long service life across a wide temperature range from -40°C to +210°C. With 1/4″ NPT threaded connections and pressure ratings up to 800 ووغ (PN63/1000 PSI), it is suitable for instrumentation, chemical processing, معالجة المياه, الصيدلانية, and analytical systems. CE certified and backed by OEM/ODM customization support, it is the trusted choice for engineers requiring reliable, low-pressure backflow protection.

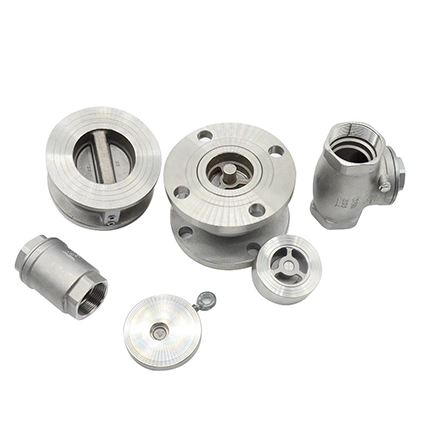

Spring Loaded Silent Check Valve

Technical Specifications

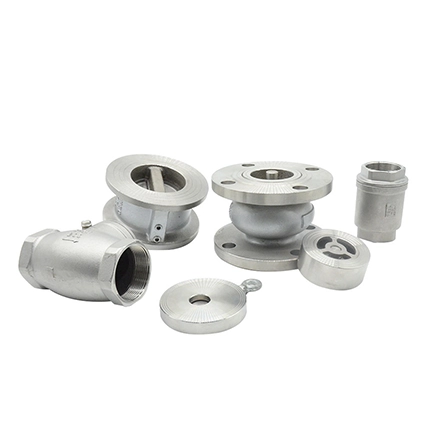

Spring Loaded Silent Check Valve

Key Features

1. Low Cracking Pressure – Minimal System Resistance
2. Silent Closure – No Water Hammer
3. Spring-Loaded Design – Instant Response
4. Premium Stainless Steel Construction – Corrosion Resistant
5. CE Certified – International Compliance

Working Principle

The spring-loaded silent check valve operates through a simple yet highly effective mechanism:

• 1. Forward Flow (Valve Open): Upstream fluid pressure exceeds the spring force, lifting the poppet off the seat. The poppet lifts vertically, allowing flow to pass through the valve with minimal pressure drop.
• 2. Reverse Flow (Valve Closed): When flow stops or reverses, downstream pressure and spring force immediately push the poppet back onto the seat. The spring ensures instant, positive seating before reverse flow can occur.
• 3. Silent Closure: The spring-assisted design eliminates slamming and water hammer, ensuring quiet operation even under rapid flow changes.

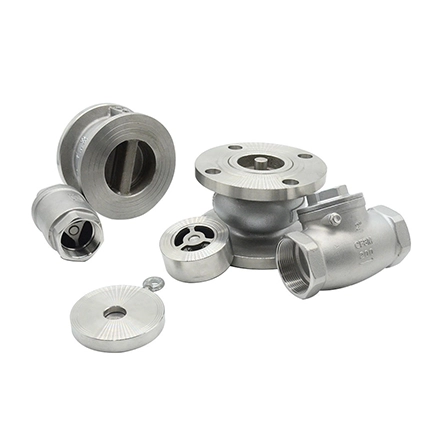

Spring Loaded Silent Check Valve

التطبيقات

1. Instrumentation & Analytical Systems
2. كيميائي & Pharmaceutical Dosing
3. معالجة المياه & Purification
4. هوائي & Hydraulic Systems

التعبئة والشحن

Packing depends on the product type and quantity. Options include carton boxes with proper protection for threaded ends. Shipment can be arranged by sea, السكك الحديدية, هواء, or as per customer’s request.

ملف الشركة

شركة لويانغ داتانغ لتكنولوجيا الطاقة, المحدودة is a professional industrial valve supplier, dedicated to providing reliable flow control solutions for instrumentation, chemical, الصيدلانية, معالجة المياه, وأنظمة الأنابيب الصناعية في جميع أنحاء العالم. All products are manufactured to international standards with CE and ISO 9001 certifications. مع أكثر 10 years of experience, منشأة حديثة من 80,000 م², و 200+ الموظفين المحترفين, نحن نخدم العملاء في 10+ countries with quality products, أسعار تنافسية, والتسليم الموثوق.

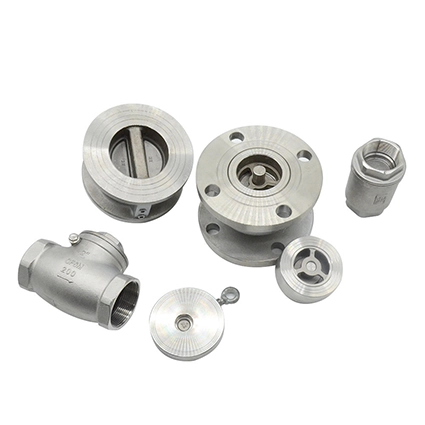

Spring Loaded Silent Check Valve

شروط الدفع

تي/تي, خطاب الاعتماد في الافق, ويسترن يونيون, PayPal, Apple Pay, Google Pay, Credit Card, إلخ.

التعليمات

س1: What is the difference between a low-cracking-pressure check valve and a standard check valve?

أ: Low-cracking-pressure check valves feature a precision spring-loaded poppet design with a very low cracking pressure (typically 0.5–2 psi), making them suitable for low-differential-pressure systems. Standard check valves (such as swing check valves) may require higher pressure to open. Low-cracking-pressure check valves are particularly well-suited for gravity-flow lines, low-pressure systems, and sensitive instrumentation.

Q2: Must spring-loaded check valves be installed vertically?

أ: Spring-loaded check valves can be installed in any orientation—horizontal, vertical (upward or downward), or inclined. The spring force ensures the poppet reseats instantly when flow stops or reverses, independent of gravity. In contrast, swing check valves must be installed horizontally.

س3: Can this valve be used for vertical downward flow?

أ: نعم. The spring-loaded design ensures reliable operation even with vertical downward flow; the spring force causes the poppet to close immediately when flow stops, unaffected by gravity. This is not possible with traditional swing check valves.

س 4: What applications is this valve suitable for?

أ: It is suitable for applications requiring low pressure drop, silent operation, and reliable backflow protection, including instrumentation and analytical systems, chemical dosing, معالجة المياه, pneumatic and hydraulic control circuits, and pharmaceutical production lines.
