Choosing the Right HDPE Pipe Fittings for Pressure Pipeline Systems

Selecting the right HDPE pipe fittings is essential for building reliable pressure pipeline systems. The performance of a pipeline depends not only on the quality of the HDPE pipes but also on the fittings used to connect, control, and extend the pipeline network.

In water supply, һуғарыу, industrial pipelines, һәм тау-байыҡтырыу ҡушымталары, different projects require different fitting designs, connection methods, and pressure ratings. Choosing unsuitable fittings may lead to leakage, reduced service life, or increased maintenance costs.

This article explains how to select the right HDPE fittings for pressure pipeline systems, covering fitting types, connection methods, pressure considerations, and common applications.

HDPE pipe fittings

Why HDPE Pipe Fittings Matter in Pressure Pipeline Systems

In any pressure pipeline system, HDPE pipe fittings are far more than simple connectors. They are the structural backbone that enables the pipe network to function as a cohesive, reliable system. Every change in direction, every branch line, every diameter transition, and every connection to equipment or valves depends on the quality and correctness of the fittings used.

Poorly chosen fittings create weak points. Weak points lead to leaks. Leaks in pressure systems mean water loss, energy waste, costly repairs, and in the worst cases, catastrophic failures. The right HDPE pipe fittings, properly selected and installed, create joints that are as strong as — or stronger than — the pipe itself.

Here’s a quick overview of what each major type of HDPE fitting does in a pressure system:

HDPE Pipe Fittings used in Pressure Pipeline Systems

Main Types of HDPE Pipe Fitting

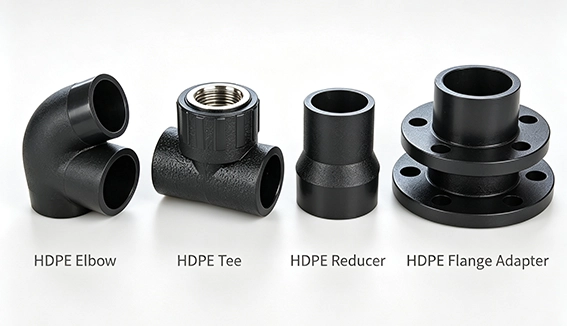

When you’re specifyingHDPE pipe fittings for a pressure application, you’ll encounter several core types. Each serves a distinct purpose, and most pressure pipeline projects require a combination of several types.

HDPE Elbow

In any pressure pipeline, you’ll eventually need to change direction. HDPE elbows — available in 90° and 45° configurations — allow the pipeline to navigate around obstacles, follow terrain, or connect to equipment at specific angles. For pressure applications, elbows must maintain their structural integrity under operating pressure without deforming or creating turbulence that could erode the pipe wall over time.

HDPE Tee

HDPE tees are essential when you need to split flow from a main line into branch lines. Available as equal tees (same diameter on all three ends) or reducing tees (branch line has a different diameter), tees are fundamental to any distribution network. In pressure systems, the tee must handle stress from both the main flow and the branch flow simultaneously.

HDPE Reducer

When your pipeline needs to transition from a larger diameter to a smaller one — or vice versa — you need anHDPE reducer. Reducers come in concentric (aligned centers) and eccentric (offset centers) configurations. In pressure applications, concentric reducers are common in vertical runs, while eccentric reducers are often used in horizontal piping to maintain a consistent bottom-of-pipe elevation.

HDPE Flange Adapter

One of the most critical fittings for pressure systems is theHDPE flange adapter. It provides the interface between HDPE piping and metal valves, насостар, flanged equipment, or other non-HDPE components. In pump stations, treatment plants, and industrial facilities, flange adapters are the connection points where the plastic pipe system meets the rest of the infrastructure.

Main Types of HDPE Pipe Fitting

HDPE Electrofusion Fittings vs. Butt Fusion Fittings

This is one of the most critical decisions you’ll make when selectingHDPE pipe fittings for a pressure project. BothHDPE electrofusion fittings һәмHDPE butt fusion fittings create permanent, leak-free joints that are as strong as the pipe itself. But they serve different conditions, and choosing the wrong method can add unnecessary cost or create installation challenges.

When to Choose Electrofusion Fittings

HDPE electrofusion fittings are the go-to choice when:

• In space-constrained environments：Working in deep trenches, overhead pipe racks, or crowded urban areas where bulky butt-welding equipment can’t fit
• During repairs：Repairing existing pipelines where you can’t move or rotate the pipe
• When dealing with complex systems：Connecting fittings in valve pits, manholes, or buildings
• During cold or wet weather：Electrofusion is less affected by weather conditions than butt fusion

When to Choose Butt Fusion Fittings

HDPE butt fusion fittings are the industry standard for:

• Large-diameter piping：Large-diameter pipelines (ғәҙәттә 4 inches and above)
• Long-distance straight-run piping：Long-distance systems with long straight runs
• New large-scale projects：New installations where space and access are not constraints
• Cost-sensitive projects：Projects where fitting cost is a major consideration

Critical Note ：When using butt fusion, pipes and fittings must have matching SDR values. Mismatched SDR creates joint misalignment and weak points. In such cases, electrofusion or mechanical transition fittings should be prioritized.

HDPE Electrofusion Fittings vs. Butt Fusion Fittings

How to Select HDPE Pipe Fittings for Pressure Applications

Selecting the right HDPE pipe fittings for a pressure pipeline system involves four key factors. Get any one wrong, and the entire system’s integrity is compromised.

1. Pipe Size Compatibility

HDPE pipe connectors must match the pipe’s outside diameter exactly. HDPE fittings are sized by outside diameter (OD), not by nominal pipe size (НПС). Even a few millimeters off can cause a bad connection that will fail under pressure.

• Measure the pipe’s actual outside diameter with a caliper
• Check the pipe markings for SDR rating and diameter
• Select fittings with matching OD and SDR

2. Баҫым рейтингы

This is where many projects go wrong. The pressure rating of HDPE fittings is determined by theStandard Dimension Ratio (СДР) — the ratio of the pipe’s outside diameter to its wall thickness. Lower SDR = thicker wall = higher pressure capacity.

The formula is straightforward: SDR = Outside Diameter ÷ Wall Thickness. Always select both pipes and fittings with a PN rating that exceeds your system’s maximum operating pressure.

3. Material Grade

HDPE fittings are manufactured from different material grades, withПЭ100 һәмПЭ80 being the most common.

ПЭ100 is the superior choice for pressure applications:

• Higher long-term design stress
• Better pressure-bearing capacity
• Improved resistance to environmental stress cracking
• Allows thinner walls for the same pressure rating
• Longer service life

Critical Rule ：PE100 fittings can be used to connect PE80 pipe, but using PE80 fittings with PE100 pipe is not recommended — the fitting becomes a weak point in the system.

For most modern pressure systems, PE100 fittings are strongly recommended.

4. Connection Method

As discussed above, choose betweenelectrofusion һәмbutt fusion based on:

• Available installation space
• Pipe diameter
• Project budget
• Access to equipment and power
• Whether it’s new installation or repair

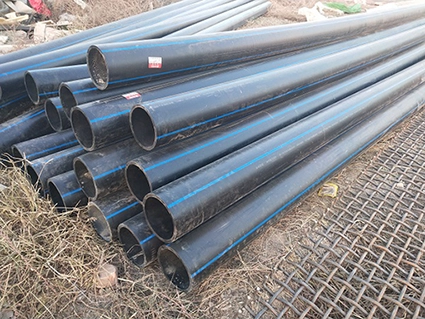

HDPE Pipe Fittings for Pressure Applications

HDPE Pipe Fittings Applications

The selection of HDPE pipe fittings is closely related to the operating environment and pipeline requirements. Due to their excellent corrosion resistance, һығылмалылыҡ, һәм оҙайлы хеҙмәт итеү ваҡыты, HDPE fittings are widely used in municipal, ауыл хужалығы, сәнәғәт, and mining pipeline systems. Different applications require different fitting designs, pressure ratings, and connection methods.

HDPE Fittings for Water Supply Systems

Municipal and residential water supply systems require reliable pipeline connections to ensure continuous water delivery and minimize maintenance requirements. HDPE water pipe fittings are widely used because they provide:

• Leak-resistant connections
• Excellent corrosion resistance
• Long-term underground service performance
• Low maintenance requirements

Common fittings used in water supply projects include:

• HDPE elbows for pipeline direction changes
• HDPE tees for distribution branches
• HDPE flange adapters for valve connections

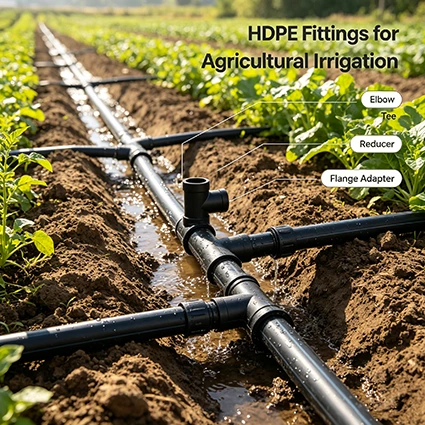

HDPE Fittings for Agricultural Irrigation

Modern irrigation systems require flexible and durable pipeline networks that can operate efficiently under different field conditions.

HDPE fittings for irrigation help farmers and irrigation engineers create reliable water distribution systems.

Typical applications include:

• Drip irrigation systems
• Sprinkler irrigation systems
• Agricultural water transportation pipelines

HDPE fittings are especially suitable for outdoor applications because they can withstand moisture, soil contact, and changing environmental conditions.

HDPE Fittings for Agricultural Irrigation

HDPE Fittings for Industrial Pipeline Systems

Industrial facilities often require pipeline systems that can handle demanding operating conditions, including chemical exposure, pressure changes, and continuous operation.

HDPE fittings for industrial pipelines are commonly used in:

• Chemical transfer systems
• Wastewater treatment plants
• Process water pipelines
• Cooling water systems

The chemical resistance and corrosion protection of HDPE make it a reliable alternative to traditional metal pipeline systems in many industrial applications.

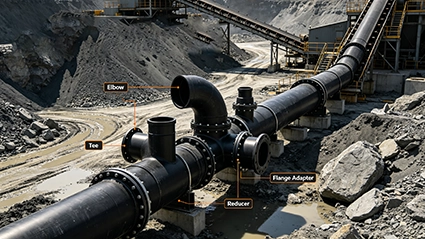

HDPE Fittings for Mining and Slurry Applications

Mining pipelines require extremely durable materials because slurry transportation involves abrasive particles and harsh operating conditions.

HDPE fittings for mining applications are widely used because they provide:

• Excellent abrasion resistance
• Flexible installation capability
• Reliable fusion joints
• Reduced maintenance frequency

They are commonly installed in:

• Slurry transportation systems
• Mine water drainage
• Tailings pipelines

HDPE Fittings for Mining and Slurry Applications

HDPE Pipe Fittings Installation Considerations

Even the highest-qualityHDPE pipe fittings will fail if not installed correctly. Here are the critical installation factors for pressure applications.

Proper Fusion Equipment

Use the right equipment for the job. Butt fusion requires a machine capable of maintaining consistent temperature (typically 200°C–220°C for HDPE) and pressure throughout the fusion cycle. Electrofusion requires a compatible electrofusion machine with the correct voltage and cycle settings.

Clean Pipe Surfaces

Both fusion methods require clean, dry, contamination-free pipe ends. Any moisture in contact with the fusion surfaces during the assembly or fusion cycle can cause voids when the moisture turns into expanding steam. This creates weak points that will fail under pressure.

Correct Alignment

Misaligned joints create stress concentrations and potential failure points. For butt fusion, pipes must be properly aligned before heating. For electrofusion, the pipe must be fully inserted into the fitting to the correct depth.

Pressure Testing

After installation, every pressure pipeline system must be hydrostatically tested before being put into service. This verifies that allHDPE pipe fittings and joints can withstand the design pressure without leakage.

Why Choose HDPE Fittings for Pressure Pipeline Projects

Conclusion

Choosing the rightHDPE pipe fittings for pressure pipeline systems is not a one-size-fits-all decision. It requires careful consideration of fitting types (HDPE elbow, tee, reducer, flange adapter), connection methods (electrofusion vs.butt fusion), pressure ratings (SDR and PN), and material grades (PE100 vs. ПЭ80).

The right fittings, properly specified and installed, create a pressure pipeline system that delivers leak-free performance for decades. The wrong fittings — even a single incorrect choice — can compromise the entire network.

Whether you’re building a municipal water main, an irrigation network, an industrial pipeline, or a mining slurry line, start with the rightHDPE pipe fittings. Your pipeline’s integrity depends on it.

Need help selecting the right HDPE pipe fittings for your pressure project? Контакт Луоян Датанг Энерджи Тех Ко., ООО for a free consultation and customized fitting recommendations.
