Complete Fire Protection Piping System Guide: পাইপ, ভালভ & খাঁজযুক্ত জিনিসপত্র

A reliable Fire Protection Piping System is one of the most critical safety infrastructures in commercial buildings, industrial facilities, warehouses, এবং শক্তি প্রকল্প.

Unlike ordinary water pipelines, fire protection systems must provide rapid, stable, and controlled water delivery during emergency situations. Every component — from fire sprinkler pipes and grooved fittings to control valves and fire department connections — plays an important role in ensuring system performance.

A complete fire protection piping system typically includes three major parts:

• Fire sprinkler pipes for water transportation
• Grooved pipe fittings for pipeline connection and installation
• Fire protection valves for flow control and system safety

Choosing the correct materials, connection methods, চাপ রেটিং, and certified components is essential for building a reliable fire suppression network.

This guide explains the structure of fire protection piping systems, key components, selection considerations, and applications to help engineers, ঠিকাদার, and distributors make better purchasing decisions.

What Is a Fire Protection Piping System?

ক Fire Protection Piping System is a specially designed pipeline network that delivers water or other fire suppression media to extinguish or control fires. The system connects the water supply source with sprinkler heads, hydrants, and other fire protection equipment through a carefully engineered pipeline layout.

During a fire event, the system must ensure that sufficient water pressure and flow are available at the required locations within the prescribed time. A properly designed fire protection piping system must consider:

• Flow capacity – hydraulic calculations per NFPA 13 প্রয়োজনীয়তা
• Pressure requirements – minimum 175 PSIG for listed fittings
• Pipe material – steel, তামা, or CPVC based on occupancy hazard
• Corrosion protection – coatings, গ্যালভানাইজিং, or corrosion inhibitors
• Installation environment – wet, dry, or preaction system conditions
• Fire safety standards – NFPA 13, এনএফপিএ 20, এনএফপিএ 24, and local codes

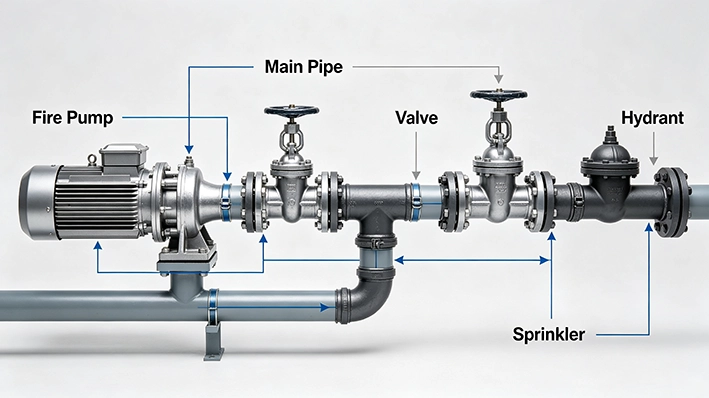

Fire protection piping system layout with fire pump valves pipes and sprinkler components

Main Components of Fire Protection Piping Systems

A completeFire Protection System relies on multiple components working together. তাদের মধ্যে ড, পাইপ, জিনিসপত্র, and valves form the basic structure of the entire system.

The three most important categories are：

1. Fire Sprinkler Pipes – the transport network
2. Grooved Pipe Fittings – the connection system
3. ফায়ার প্রোটেকশন ভালভ – the control points

Each component has a specific role in maintaining safe and efficient fire water distribution.

Fire Sprinkler Pipe: The Foundation of Fire Water Distribution

Grooved Pipe Fittings: Efficient Connections for Fire Protection Systems The Fire Sprinkler Pipe is responsible for transporting pressurized water throughout the fire protection network. Carbon steel pipe is one of the most widely used materials because it provides:

• উচ্চ যান্ত্রিক শক্তি
• Good pressure resistance
• Cost efficiency
• Compatibility with grooved connections

Common standards include：

• ASTM A795 – the primary specification for black and hot-dipped galvanized welded and seamless steel pipe for fire protection use
• ASTM A53 – general-purpose steel pipe also used in fire sprinkler applications
• ASTM A135 – electric-resistance-welded steel pipe

For fire protection applications, pipes are commonly available with:

• Black steel surface (standard for wet systems)
• Galvanized coating (for dry systems and corrosive environments)
• Grooved ends (for mechanical coupling installation)
• Threaded ends (for smaller diameters and traditional systems)

Among these options, grooved end fire sprinkler pipes are increasingly popular because they simplify installation and reduce construction time. UL-listed and FM-approved options are available for critical fire protection applications.

Grooved Pipe Fittings: Efficient Connections for Fire Protection Systems

Grooved Pipe Fittings are one of the most commonly used connection solutions in modern Fire Protection Piping Systems.

Unlike traditional welded or threaded connections, grooved systems use mechanical couplings to connect pipes and fittings. This installation method provides a faster, cleaner, and more flexible solution for fire sprinkler and industrial piping networks.

A typical grooved connection consists of：

• Grooved pipe end
• EPDM rubber gasket (temperature range: -40°C to 120°C)
• Grooved coupling (ductile iron body)
• Bolts and nuts

The coupling compresses the gasket between the pipe ends, creating a reliable seal while allowing a certain degree of movement. UL and FM certifications ensure these fittings meet rigorous fire safety protocols.

Advantages of Grooved Pipe Fittings

1. Faster Installation

Grooved connections require no welding equipment, reducing installation time and labor requirements. Compared to threaded systems, grooved design can reduce installation time by approximately 20%. This makes them especially suitable for large-scale fire protection projects where construction speed is critical.

2. Flexible Pipeline Movement

Flexible grooved couplings allow limited pipe movement caused by:

• Thermal expansion and contraction
• Building settlement
• Vibration

This improves system durability in demanding environments and is particularly valuable in seismic zones.

3. Easy Maintenance

Grooved connections can be easily removed and reassembled, making inspection and maintenance more efficient. Split-flange designs can clamp onto grooved ends without removing pipes or valves, cutting labor time by over 50%.

4. No Hot Work

Eliminating welding removes fire hazards from the job site—a critical safety advantage in occupied buildings or facilities with flammable materials.

Ductile iron grooved pipe fittings assembly for fire protection piping system

Main Types of Grooved Pipe Fittings

2.2.1 Grooved Coupling

কGrooved Coupling is used to connect two pipes with the same diameter. It is one of the most fundamental components in fire protection piping systems.

Two common types include：

Grooved Elbow

ক Grooved Elbow changes the direction of pipeline routing without welding. Common angles include 90° and 45°. Ductile iron grooved elbows are widely used in fire sprinkler branch lines, riser connections, এবং শিল্প জল সিস্টেম.

সুবিধা：

• উচ্চ যান্ত্রিক শক্তি
• চমৎকার চাপ প্রতিরোধের
• Easy installation
• UL and FM certified options available

Grooved Equal Tee

ক Grooved Equal Tee provides branch connections in fire sprinkler systems, allowing water flow distribution from the main pipeline to multiple branch lines.

Typical applications：

• Sprinkler branch piping
• Fire hydrant networks
• Industrial water distribution
• Retrofitting existing pipelines with threaded outlets

Grooved Reducer

ক Grooved Reducer connects pipes with different diameters. It is commonly used when a fire protection system transitions from larger main pipes to smaller branch pipes.

Examples：

• DN100 to DN80
• DN150 to DN100

Key benefits：

• Smooth size transition
• Reliable grooved connection
• Suitable for high-pressure fire systems

Ductile iron grooved pipe fittings including coupling elbow tee and reducer for fire protection systems

ফায়ার প্রোটেকশন ভালভ: Controlling Safety and Water Flow

ফায়ার প্রোটেকশন ভালভ are essential components that control, isolate, and monitor water flow inside fire protection systems. Unlike standard industrial valves, fire protection valves must meet strict requirements for:

• Reliability – must function flawlessly in emergency conditions
• Pressure resistance – minimum 175 PSIG for listed fittings
• Long-term operation – often standby for years before activation
• Safety certification – UL Listed and/or FM Approved

Common fire protection valves include：

• Fire Butterfly Valve
• Fire Gate Valve (OS&Y and NRS)
• Fire Alarm Check Valve

Fire Butterfly Valve

ক Fire Butterfly Valve is widely used as an isolation and control valve in sprinkler systems. The compact structure makes it suitable for limited installation spaces.

Main features：

• Quick operation (quarter-turn)
• লাইটওয়েট ডিজাইন
• EPDM coated disc for reliable sealing
• Signal monitoring option (tamper switch)
• Grooved-end configurations for fast installation

অ্যাপ্লিকেশন：

• Fire sprinkler systems
• Fire water pipelines
• Industrial fire protection

Fire Gate Valve

ক Fire Gate Valve provides full flow isolation for fire protection pipelines. OS&Y (Outside Screw and Yoke) gate valves are commonly used in fire systems because their valve position can be visually identified at a glance.

এনএফপিএ 20 Requirement：

“A listed outside screw and yoke (OS&Y) gate valve shall be installed in the suction pipe. No control valve other than a listed OS&Y valve and the following devices shall be installed in the suction pipe within 50 ft (15.3 মি) of the pump suction flange.”

Advantages of OS&Y Gate Valves：

• Full bore flow – no pressure drop
• Visual position indication – stem rises when open, lowers when closed
• Reliable shut-off performance
• Stem is protected from water and debris

NRS (Non-Rising Stem) গেট ভালভ：

• Stem rotates but does not rise
• Position indicated by separate indicator
• Used in confined spaces where OS&Y won’t fit

Fire Alarm Check Valve

ক Fire Alarm Check Valve prevents reverse water flow and provides alarm activation when water movement occurs in sprinkler systems. It is commonly installed in wet pipe sprinkler systems.

Functions：

• Prevent backflow
• Maintain system pressure
• Activate fire alarms (water motor gong or electronic alarm)

When a sprinkler head opens, water flows through the valve, lifting the clapper and allowing water to enter the alarm port, which triggers the alarm. No separate control valves shall be installed unless supervised by a central station, proprietary, or remote station alarm service.

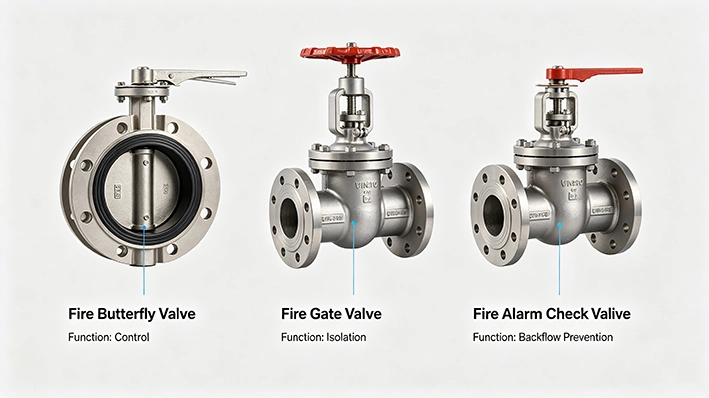

Fire protection valve types including butterfly gate and alarm check valves

How Does a Fire Sprinkler System Work?

কফায়ার স্প্রিঙ্কলার সিস্টেম is an automatic fire suppression system designed to detect and control fires by releasing water through sprinkler heads when abnormal heat is detected. Unlike manual firefighting equipment, automatic sprinkler systems can respond immediately without human operation.

A typical fire sprinkler system includes：

• Water supply source
• Fire pump
• Main pipeline
• Control valves
• Alarm check valve
• Branch pipes
• Sprinkler heads

The working process is：

Heat Detection (sprinkler bulb/fusible link activates)
        ↓
Sprinkler Activation (sealing element opens)
        ↓
Water Flow Starts (pressurized water discharges)
        ↓
Alarm Signal Triggered (water motor gong or electronic)
        ↓
Fire Suppression (water applied to fire area)

When the temperature reaches the activation point of the sprinkler head (typically 57°C to 74°C for standard sprinklers), the glass bulb breaks or fusible link melts, opening the sealing element and allowing pressurized water to discharge directly onto the fire area.

Types of Fire Protection Piping Connections

The connection method directly affects installation efficiency, system reliability, and maintenance requirements. The three common connection methods used in fire protection piping systems are:

1. Grooved Connection – mechanical coupling
2. Threaded Connection – traditional screw connections
3. Flanged Connection – bolted flange joints

Grooved Connection

Grooved connections are widely used in modern fire protection systems because they provide fast installation and reliable performance.

সুবিধা：

• No welding required – eliminates hot work hazards
• Reduced installation time – up to 20% faster than threaded
• Easy maintenance – can be disassembled and reassembled
• Allows limited pipe movement – absorbs vibration and thermal expansion
• Suitable for vibration environments – seismic zones and pump connections

Grooved connections are especially common in fire sprinkler systems, commercial buildings, industrial facilities, and high-rise buildings.

Threaded Connection

Threaded connections are commonly used for smaller diameter fire protection pipes.

সুবিধা：

• Simple installation
• Low equipment requirements
• Suitable for small branch lines

সীমাবদ্ধতা：

• Not suitable for large diameter pipelines (typically above 2″)
• Requires precise threading
• সময়সূচী 10 pipe cannot be threaded – Schedule 40 required

Flanged Connection

Flanged connections are mainly used for large equipment connections and sections requiring frequent maintenance.

Typical applications：

• Fire pumps
• Valve connections
• Equipment interfaces

সুবিধা：

• Strong connection – high mechanical integrity
• Easy disassembly – bolted design
• Suitable for large diameter systems

Comparison of grooved threaded and flanged connections for fire protection piping systems

How to Select Fire Protection Piping Components?

Selecting suitable fire protection components requires considering system requirements, installation conditions, and certification standards.

The key selection factors include：

• Application environment (ভিজা, dry, or preaction system)
• Pipe size and schedule
• কাজের চাপ
• Material compatibility
• Certification requirements (ইউএল, FM, VdS, LPCB)

Selecting Fire Sprinkler Pipe

নির্বাচন করার সময়Fire Sprinkler Pipe, consider：

উপাদান：Carbon steel is widely used due to its strength and cost efficiency.

স্ট্যান্ডার্ড：

• ASTM A795 – primary standard for fire protection pipe
• ASTM A53 – general purpose
• ASTM A135 – ERW pipe

Schedule Selection：

Surface Protection：

• Black coating – standard for wet systems
• Galvanized coating – for dry systems and corrosive environments

Selecting Grooved Pipe Fittings

Important factors include：

প্রেসার রেটিং：Most fire protection systems require 300 পিএসআই (2.07 এমপিএ) working pressure. UL-listed systems are rated for 300 পিএসআই, while FM-approved systems may be rated for 365 পিএসআই.

উপাদান：Ductile iron is preferred because of high strength, good impact resistance, এবং দীর্ঘ সেবা জীবন.

সার্টিফিকেশন：

• UL Listed – for fire service compliance
• FM Approved – for performance reliability
• VdS – German certification (common in European projects)
• LPCB – UK certification

Gasket Material：

• EPDM rubber – standard, temperature range -40°C to 120°C
• Other materials available for special media

Selecting Fire Protection Valves

Different valves serve different functions：

Choosing the correct valve type ensures reliable system operation and compliance with NFPA standards.

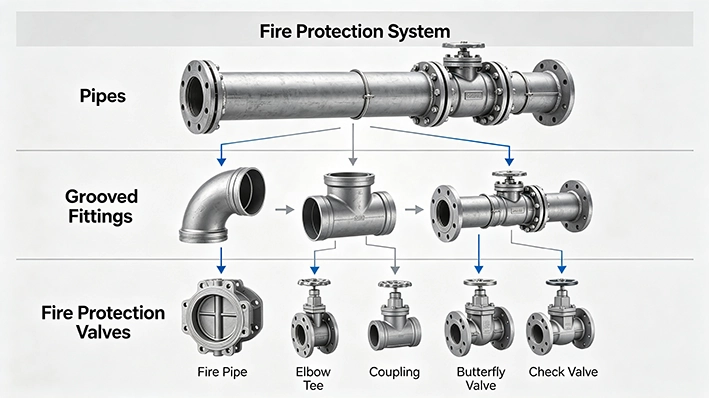

Main components of fire protection system including pipes fittings and valves

Fire Protection Standards and Certifications

Fire protection products must comply with strict safety requirements. The most commonly referenced standards include：

UL Listed

UL certification verifies that products have passed safety testing requirements.

Common products：

• Fire valves
• Grooved fittings
• Fire pipes

FM Approved

FM certification focuses on performance reliability under fire protection conditions. It is widely recognized in industrial projects, commercial buildings, and international engineering projects.

NFPA Standards

NFPA provides internationally recognized fire protection design guidelines.

Common references：

• এনএফপিএ 13 – Standard for the Installation of Sprinkler Systems
• এনএফপিএ 20 – Standard for the Installation of Stationary Pumps for Fire Protection
• এনএফপিএ 24 – Standard for the Installation of Private Fire Service Mains

Fire Protection System Applications

Fire protection piping systems are widely used in：

Commercial Buildings：Office buildings, shopping malls, হোটেল, হাসপাতাল, convention centers

Industrial Facilities：Manufacturing plants, chemical facilities, energy projects, পাওয়ার প্ল্যান্ট

Warehouses and Logistics Centers：Large storage areas require reliable sprinkler systems to control fire risks. High-piled storage presents unique challenges that demand careful system design.

Data Centers ：Fire protection systems protect critical equipment and infrastructure. Water-based fire protection must be carefully balanced with equipment protection requirements.

Complete Fire Protection Product Solutions

A complete fire protection piping system requires coordinated components from water supply to final discharge points.

Our fire protection product range includes：

These components provide complete solutions for fire sprinkler and industrial fire protection systems, all available with UL, FM, VdS, and LPCB certifications.

Complete fire protection piping system components including pipes fittings and valves

Frequently Asked Questions

প্রশ্ন ১: What is a fire protection piping system?

A fire protection piping system is a pipeline network designed to transport water to sprinklers, hydrants, and firefighting equipment during fire emergencies.

প্রশ্ন ২: What type of pipe is used for fire sprinkler systems?

Carbon steel pipes manufactured according to ASTM A795 and ASTM A53 standards are commonly used for fire sprinkler systems.

Q3: Why are grooved fittings used in fire protection systems?

Grooved fittings provide fast installation, reliable sealing, and flexibility, making them ideal for modern fire protection piping systems. They reduce installation time by approximately 20% compared to threaded systems.

Q4: What is the difference between fire butterfly valves and fire gate valves?

Butterfly valves provide compact flow control with quarter-turn operation and are often used for isolation in space-constrained areas. OS&Y gate valves are mainly used for full isolation of main pipelines and are required by NFPA 20 on fire pump suction. OS&Y valves provide visual position indication, while butterfly valves require a separate indicator or tamper switch.

প্রশ্ন5: Why are UL/FM certifications important for fire protection products?

UL/FM certifications demonstrate that fire protection components meet recognized safety and performance requirements. These certifications are often required by building codes, insurance companies, and local Authorities Having Jurisdiction (AHJs).

Ready to build a reliable fire protection piping system for your next project?

Whether you are a fire protection contractor, distributor, or industrial buyer, লুওয়াং দাতাং এনার্জি টেক কো., লিমিটেড offer a complete range of UL/FM certified fire sprinkler pipes, grooved fittings, and fire protection valves to meet your specific project needs. Our products feature:

• ✅Complete portfolio – Pipes, grooved fittings, and valves from a single source, ensuring compatibility and simplifying procurement.
• ✅Full certification – UL Listed, FM Approved, VdS, LPCB, and CE marked products for global project acceptance.
• ✅Engineering support – Technical assistance with hydraulic calculations, product selection, and system design.
• ✅Reliable delivery – Manufacturing facilities with 10+ অভিজ্ঞতার বছর, serving customers in 10+ countries.
• ✅OEM/ODM capabilities – Custom solutions for special sizes, coatings, and branding requirements.

Contact us today for expert fire protection piping system selection advice, পণ্যের স্পেসিফিকেশন, and competitive quotes.
