Industrial Pipe Fittings Guide: Tipus, Materials, Standards & Aplicacions

Industrial pipe fittings are essential components in modern piping systems. They are used to connect pipes, change flow direction, divide pipelines, reduce pipe sizes, and ensure reliable fluid transportation in various industrial applications.

Unlike standard pipes that mainly provide a flow path, pipe fittings determine the flexibility, layout, and long-term performance of a piping system.

From oil and gas pipelines to water treatment plants, fire protection systems, chemical processing facilities, and HVAC applications, selecting the right industrial pipe fittings is critical for safety, eficiència, and maintenance reliability.

This guide explains the major types of industrial pipe fittings, including butt weld fittings, grooved pipe fittings, and threaded fittings. It also covers common materials, international standards, industrial applications, and key factors for selecting suitable fittings.

For a complete understanding of piping components, you can also explore our guide:

La guia completa dels sistemes de canonades industrials: Vàlvules, Tubs & Accessoris per a cada aplicació

industrial pipe fittings overview with elbow tee reducer and coupling

What Are Industrial Pipe Fittings?

Industrial pipe fittings are components used to connect, terminate, control, or change the direction of flow in a piping system. They serve several essential functions that make modern industrial piping possible:

• Connect pipes – Fittings join individual pipe sections into a continuous, leak-free network. Whether through welding, grooved coupling, or threaded connections, fittings provide the mechanical interface that holds the system together.
• Change flow direction – Elbows and bends allow pipelines to navigate around obstacles, through walls, and between equipment. Standard angles include 45°, 90°, and 180°, with long-radius and short-radius options to suit different space and flow requirements.
• Branch pipelines – Tees and crosses enable a single pipeline to split into multiple branches or combine flows from different sources. Equal tees maintain the same diameter throughout, while reducing tees step down to smaller branch sizes.
• Reduce pipe diameter – Reducers transition between pipes of different diameters. Concentric reducers maintain a common centerline (ideal for vertical piping), while eccentric reducers offset the centerline (used at pump suctions to avoid vapor pockets).
• Improve maintenance – Unions, acoblaments, and flanged connections allow sections of piping to be disassembled for inspection, neteja, repair, or modification without cutting the pipe.

The quality and reliability of these fittings directly impact the safety, eficiència, and longevity of the entire piping system. Understanding the different types available is the first step toward making informed procurement decisions.

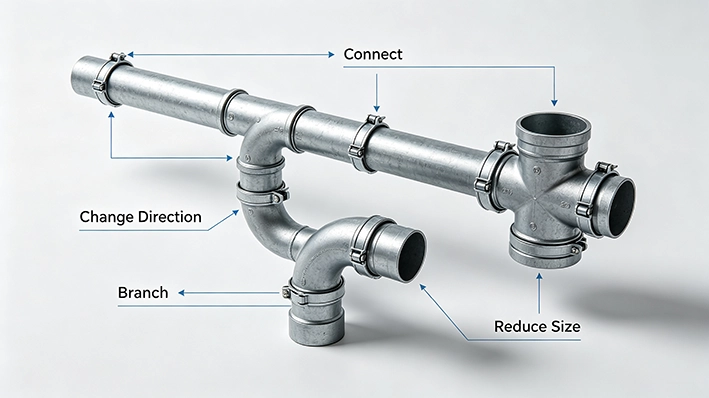

industrial pipe fitting functions connection direction change branch reducer

Main Types of Industrial Pipe Fittings

Industrial pipe fittings can be broadly classified into three main categories based on their connection method: Accessoris de soldadura a tope, Grooved Pipe Fittings, i Threaded Pipe Fittings. Each category offers distinct advantages for specific applications and operating conditions.

Accessoris de soldadura a tope

Butt weld fittings are among the most widely used industrial pipe fittings for high-pressure and high-temperature piping systems.

They are connected by welding directly to the pipe, creating a strong and leak-resistant joint.

Because of their excellent mechanical strength and smooth internal flow characteristics, butt weld fittings are commonly used in:

• Oil and gas pipelines
• Chemical processing
• Power plants
• Industrial water systems

Common butt weld fittings include:

• Butt weld elbow
• Butt weld tee
• Butt weld reducer

butt weld fittings types carbon steel elbow tee reducer cap

Stainless Steel Butt Weld Fittings

Stainless steel butt weld fittings are preferred in applications requiring corrosion resistance, hygiene, i llarga vida útil.

Common materials:

• Acer inoxidable 304
• Acer inoxidable 316

Typical applications:

• Chemical industry
• Food processing
• Pharmaceutical systems
• Marine environments

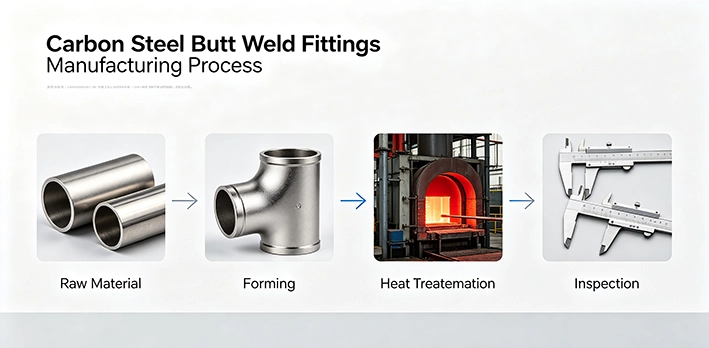

carbon steel butt weld fittings manufacturing process

Grooved Pipe Fittings

Grooved pipe fittings have become increasingly popular in commercial and industrial piping systems because they provide fast installation, fàcil manteniment, and reliable mechanical connections.

Unlike traditional welded connections, grooved fittings use a grooved coupling system that connects pipes through specially designed grooves and sealing components.

This connection method significantly reduces installation time and allows easier system modification or maintenance.

Grooved pipe fittings are widely used in:

• Fire protection systems
• HVAC systems
• Water supply pipelines
• Industrial process piping
• Mining applications

Common grooved pipe fittings include:

• Grooved coupling
• Grooved elbow
• Grooved tee
• Grooved reducer

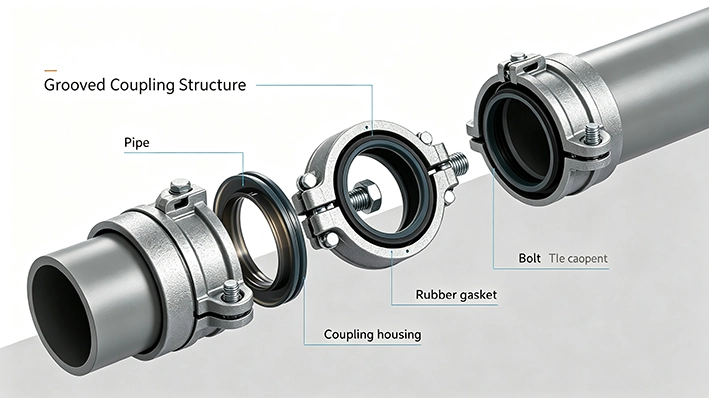

grooved pipe coupling installation structure for fire protection piping

Pipe Fitting Materials Selection

The material of a pipe fitting determines its strength, resistència a la corrosió, temperature range, and overall service life. Selecting the right material is critical for ensuring system reliability and safety.

industrial pipe fittings material comparison carbon steel stainless steel ductile iron

Industrial Pipe Fitting Standards

International standards play an important role in ensuring the quality, interchangeability, and reliability of industrial pipe fittings.

For global industrial projects, pipe fittings are usually manufactured according to recognized standards such as ASME, ASTM, DE, EN, and UL/FM requirements.

Selecting fittings that comply with proper standards helps ensure:

• Correct dimensions
• Reliable pressure performance
• Compatibility with piping systems
• Long-term operational safety

UL/FM Standards for Fire Protection Grooved Fittings

For fire protection piping systems, certification requirements are especially important.

UL and FM certifications are widely recognized in international fire protection projects.

Certified grooved fittings provide:

• Reliable sealing performance
• Fire safety compliance
• Stable pressure capability

Common applications:

• Fire sprinkler systems
• Commercial buildings
• Industrial facilities
• Warehouses

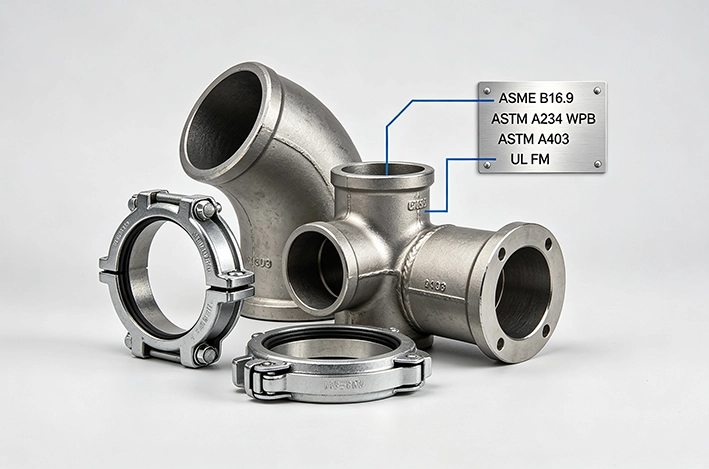

industrial pipe fittings standards ASME B16.9 ASTM A234 UL FM certification

How to Select the Right Pipe Fittings?

Selecting the right pipe fittings requires a systematic approach that considers multiple factors. Follow this step-by-step selection framework:

Pas 1: Determine the Connection Type

Pas 2: Select the Material

Carbon Steel: General industrial piping, oli & gas, moderate temperatures

Acer inoxidable: Corrosive media, hygienic applications, high temperatures

Ductile Iron: Protecció contra incendis, water systems, high-impact environments

Pas 3: Verify Pressure Rating

Butt weld fittings: Specified by schedule (SCH 10 through SCH 160, XXS)

Grooved fittings: Typically 300 PSI for fire protection applications

Threaded fittings: Classe 150, Classe 300, etc. per ASME B16.11

Pas 4: Confirm Application Requirements

Consider the fluid type (corrosive, abrasive, sanitary?), operating temperature, environmental conditions (indoor, outdoor, marí?), and applicable codes and standards.

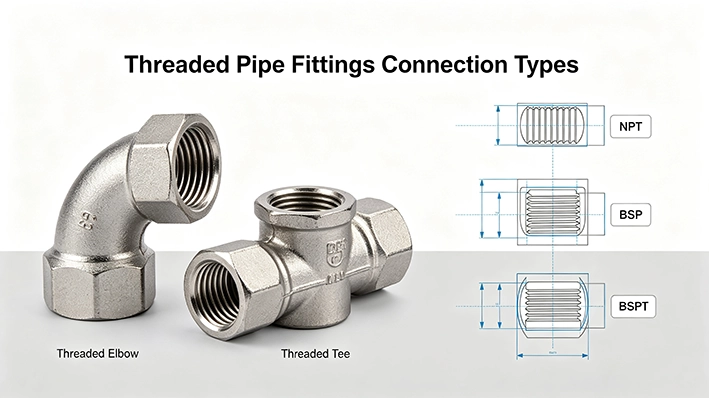

stainless steel threaded pipe fittings NPT BSP connection types

Industrial Applications of Pipe Fittings

Accessoris per a canonades are essential across virtually every industry that moves fluids. Here are the primary application areas for each fitting category:

Oli & Gas

Carbon steel butt weld fittings are the backbone of oil and gas infrastructure. They are used in long-distance transmission pipelines, gathering systems, refinery process piping, and offshore platforms. The high strength and weld integrity of butt weld fittings make them ideal for the extreme pressures and temperatures encountered in hydrocarbon service.

Tractament de l'aigua

Water treatment facilities rely on carbon steel and stainless steel fittings for both potable water and wastewater systems. Butt weld fittings provide the leak-free connections required for environmental compliance, while stainless steel offers corrosion resistance for chemically treated water.

Fire Protection Systems

Grooved pipe fittings dominate the fire protection industry. UL Listed and FM Approved ductile iron grooved fittings provide the fast installation, reliable sealing, and long-term durability required for fire sprinkler systems in commercial, residential, i naus industrials.

HVAC

Both grooved and threaded fittings are widely used in heating, ventilació, and air conditioning systems. Grooved fittings enable rapid installation of large-diameter chilled water and hot water piping, while threaded fittings serve smaller-diameter connections and equipment hookups.

industrial pipe fittings applications oil gas fire protection water treatment chemical

Pipe Fittings vs Pipes vs Valves

Understanding the distinction between pipes, accessoris, and valves is fundamental to designing and specifying industrial piping systems.

In a complete piping system, pipes provide the pathway, fittings direct the route, and valves manage the flow. All three components must be carefully selected and matched to ensure system integrity and performance.

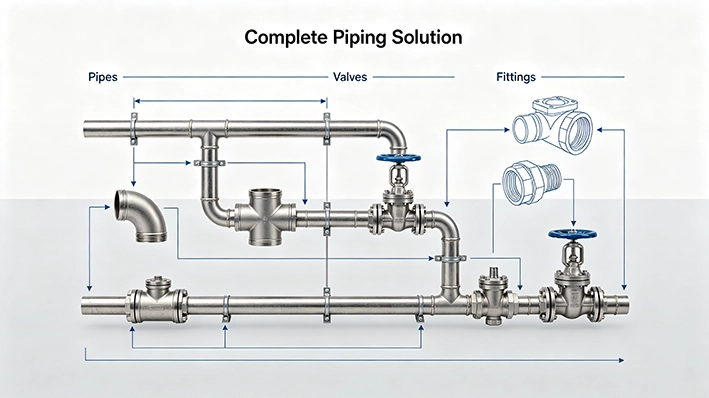

complete industrial piping system with pipes valves and fittings

Conclusió

Industrial pipe fittings are critical components that determine the safety, eficiència, and reliability of piping systems.

Understanding different fitting types, materials, estàndards, and applications helps engineers and buyers select the right solutions for their projects.
