How to Install HDPE Pipes Underground: Key Steps, Methods, and Best Practices

Polyethylen s vysokou hustotou (HDPE) potrubí have become a preferred solution for underground pipeline systems due to their excellent corrosion resistance, flexibilita, lightweight structure, a dlouhou životností. They are widely used in municipal water supply, zemědělské zavlažování, mining slurry transportation, industrial fluid systems, and other demanding applications.

Však, the performance and service life of an HDPE pipeline do not depend only on pipe quality. Proper Instalace HDPE potrubí plays an equally important role in ensuring leak-free operation, structural stability, and long-term reliability.

A poorly installed underground pipeline may experience problems such as joint failure, pipe deformation, excessive stress, or reduced pressure performance. Proto, understanding the correct underground HDPE pipe installation process is essential for engineers, dodavatelé, and project owners.

This guide explains the complete HDPE pipe installation procedure, including site preparation, trenching, pipe joining methods, backfilling, common mistakes, and best practices for successful underground pipeline projects.

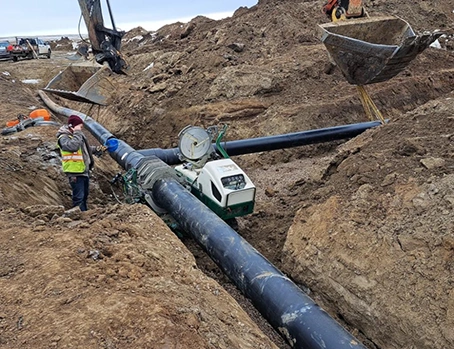

Underground HDPE pipe installation process with fusion welding and trench construction

Why Proper Underground HDPE Pipe Installation Matters

The quality of underground HDPE pipe installation directly determines the service life and performance of the entire pipeline system. Unlike above-ground piping, underground pipelines are invisible once backfilled — making defects difficult and expensive to detect and repair.

Key takeaway: A successfulHDPE pipeline installation requires careful attention at every stage — from material selection to final compaction.

Preparation Before Installing HDPE Pipes Underground

1. Select the Right HDPE Pipe

Choosing the correct HDPE pipe specification is the foundation of a successful installation. The following factors must be evaluated:

Key Considerations:

• PE100 offers higher strength and allows thinner walls for the same pressure rating, reducing weight and cost.
• SDR11 is suitable for high-pressure applications, while SDR17 is commonly used for gravity-flow systems.
• Always verify that the pipe and fittings are manufactured to recognized standards (ISO 4427, V 12201, or ASTM D3035).

Internal link: See our guides on SDR11 vs SDR17 HDPE potrubí a Průvodce hodnocením tlaku v potrubí HDPE for detailed selection criteria.

HDPE pipes used in municipal water supply and industrial pipeline systems

2. Inspect Pipes and Fittings Before Installation

Before any pipe is lowered into the trench, thorough inspection is mandatory. Pipe damage prior to completion of the project shall be repaired or replaced by the contractor.

Storage tip: Store pipes at the job site in manufacturer-provided packaging. Protect from direct sunlight by covering with opaque material while allowing air circulation.

Step-by-Step HDPE Pipe Underground Installation Procedure

Krok 1: Site Preparation and Trenching

Proper trenching is critical for HDPE pipe performance. The trench must provide adequate space for pipe placement, jointing, and backfilling while protecting the pipe from external damage.

Trench Depth Guidelines:

• Vodovodní potrubí: Minimum 0.8m to 1.2m below ground level (varies by climate and local codes)
• Sewer pipes: Sufficient depth to maintain gravity flow gradients
• Under roads: Typically 1.2m to 1.5m to avoid traffic loads

Mark the route clearly and check for conflicts with existing utilities. Use non-destructive locating methods where underground services are suspected.

Krok 2: Prepare Pipe Bedding

The bedding surface for the pipe shall provide a firm foundation of uniform density throughout the entire length of the pipe. Proper bedding prevents point loading and distributes the weight of the pipe and overburden evenly.

Bedding material options:

Soil classes for bedding (ASTM D2321):

• Class I: Crushed rock with little or no fines
• Class II: Čistý, coarse-grained gravel or sand (GW, GP, SW, SP soils)
• Class III: Coarse-grained soil with fines (GM, GC, SM, SC, some CL and ML)
• Class IV: Fine-grained soils (CL and ML with ≥30% fines) — generally unsuitable
• Class V: Unsuitable fines (MH, CH, OL, OH, PT) — must not be used

Bedding thickness: Minimum bedding thickness shall be 4 palce (100 mm) for 4″–24″ diameter pipes and 6 palce (150 mm) for 30″–60″ diameter pipes.

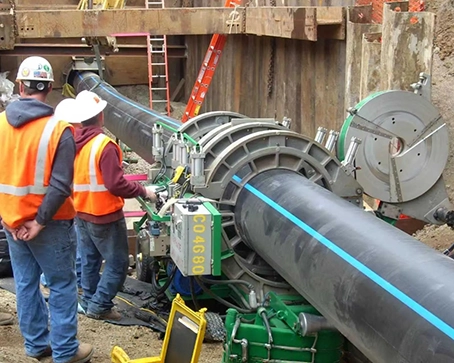

Underground HDPE pipe installation

Krok 3: HDPE Pipe Joining and Fusion

This is the most critical step in the entireHDPE pipe installation procedure. The integrity of every joint determines the reliability of the entire pipeline.

All HDPE pipe shall be joined to itself by the heat fusion process, which produces homogeneous, sealed, leak-tight joints. Personnel performing butt fusion of HDPE pipe shall be certified in the procedure.

Butt Fusion Welding

Butt fusion is the primaryHDPE pipe connection method for large diameter pipes. The welded joint is produced with the help of a heated plate.

Butt fusion procedure:

1. Svorka: Pipe sections are clamped into an axial press to hold them in alignment and prevent ovality
2. Face: Pipe ends are faced (scraped) to ensure clean, parallel surfaces
3. Teplo: Heating plate at 400–450°F (204–232°C) is placed between pipe ends
4. Fuse: Plate removed, ends pressed together under controlled pressure
5. Cool: Joint cools under pressure — do not disturb during cooling

Quality check: The first fusion of each day shall be a trial fusion in the presence of the engineer. Inspect for continuity of “beads” from melted material to prevent “cold joints”.

Electrofusion Welding

Electrofusion is ideal for repairs and restricted spaces. A fitting device (fusion coupler) with a built-in copper coil is used. When current is applied, the coil generates heat to create the weld.

Internal link: See our detailed article on Metody tavného svařování HDPE trubek for complete procedures and equipment requirements.

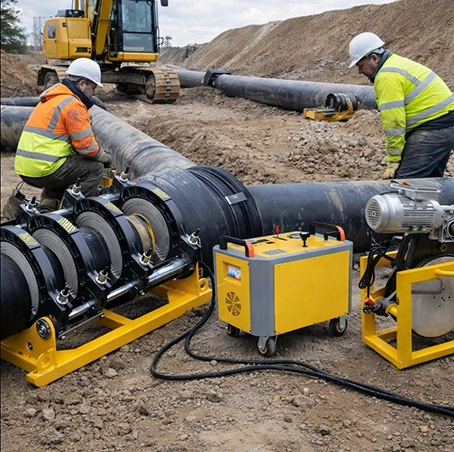

HDPE pipe butt fusion and electrofusion welding methods

Krok 4: Pipe Placement and Alignment

Once joints are completed, the pipe must be carefully placed in the trench.

Klíčové úvahy:

• Avoid excessive bending: The centerline of the pipe shall not deviate from a straight line by more than 1/16 inch per foot of length.
• Maintain alignment: Proper facilities shall be provided for lowering sections of pipe into trenches. Under no circumstances shall pipe be dropped or dumped into trenches.
• Check joint quality: Inspect all fused joints before backfilling.
• Thermal movement: HDPE expands and contracts significantly with temperature changes. Install with excess length between anchor points so that contraction from temperature drops can be accommodated.

Krok 5: Backfilling and Compaction

ProperHDPE pipe backfilling is essential to protect the pipe and ensure long-term performance. Backfill selection and placement procedures are critical to achieve long-term system performance.

Backfilling stages:

Compaction requirements:

• Class I and II materials: 85% Standard Proctor Density minimum
• Class III and IV materials: 90% Standard Proctor Density minimum

Lift thickness:

• Class I materials: 12-inch lifts maximum
• Class II materials: 8-inch lifts maximum
• Class III and IVa materials: 6-inch lifts maximum

Critical requirements:

• Backfill to a height of 600 mm above the top of the pipe shall be made with material free from stones larger than 37.5 mm
• For HDPE pipe, avoid Class IV or V materials according to ASTM D2321
• Care shall be taken to avoid contact between the pipe and compaction equipment
• All damaged pipes shall be removed and replaced at no additional cost

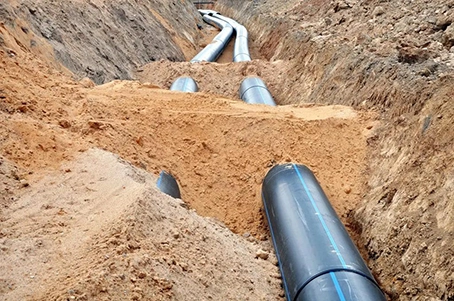

HDPE pipe underground backfilling and compaction process

Common HDPE Pipe Installation Methods

Different project conditions call for differentHDPE pipe installation methods. Here are the four most common approaches.

Open Trench remains the most common method. A trench is excavated, the HDPE pipe is laid in a sand bed (or directly on screened native backfill if using PE100-RC), then covered.

Horizontal Directional Drilling (HDD) bores a curved tunnel from an entry pit to an exit pit, then pulls the pre-welded HDPE string through. Typical municipal HDD is DN200–DN500 over 50–400 m at depths of 3–15 m.

Best Practices for Underground HDPE Pipe Installation

Following these best practices will significantly improve the quality and longevity of yourunderground HDPE pipe installation.

Pressure Testing Protocol:

1. Fill the pipeline with water and vent all air.
2. Pressurize to 1.5× operating pressure (or per design specification).
3. Hold pressure for minimum 1 hour.
4. Acceptable leakage: ≤0.1 L per hour per km per mm of pipe diameter.
5. Document results and obtain sign-off before backfilling.

Additional recommendations:

• UV protection: Protect HDPE pipe from direct sunlight during storage
• Handling: Use proper slings and pipe stands. Never drag pipes across sharp or rocky ground
• Documentation: Record all fusion parameters, inspection results, and test data for quality assurance

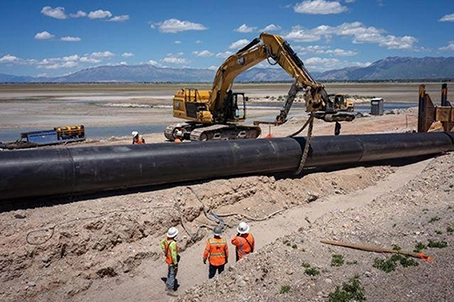

Underground HDPE pipe installation

Common Mistakes During HDPE Pipe Installation

Learning from others’ mistakes saves time and money. Here are the most frequent errors:

One particularly costly mistake is rushing the cooling phase of fusion joints. Operators sometimes move pipes before the joint has fully cooled, creating internal voids and weak spots that may not fail immediately but will leak under pressure over time.

Underground HDPE Pipe Installation Applications

HDPE pipes serve diverse industries due to their versatility and durability:

In municipal applications, HDPE is increasingly replacing ductile iron and PVC for water mains because fusion-welded joints eliminate the leakage rates (obvykle 15-30%) associated with mechanical joints in aging infrastructure.

Internal link: Learn more in our comprehensive article on HDPE Pipes Applications.

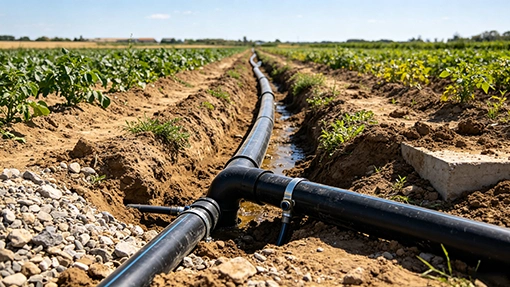

HDPE Pipe Installation in Agricultural irrigation

FAQ

Q1: How deep should HDPE pipes be buried underground?

Safe burial depths vary and should be calculated. In lieu of calculations, HDPE pipes with DRs ranging from 7.3 na 21 can be safely buried from 2 ft to 25 ft where no traffic load is present, and from 3 ft to 25 ft where live load is present. Under roads with AASHTO H20 loading, a depth of cover of 3 ft is generally acceptable.

Q2: Can HDPE pipes be installed underground without concrete protection?

Ano. HDPE pipes are designed for direct burial without concrete encasement. The fused pipe system is fully restrained and does not require thrust blocks. Však, proper bedding and backfilling according to ASTM D2321 are essential.

Q3: What is the best joining method for HDPE pipes?

Butt fusion is the preferred method for most applications, especially large diameter pipes, as it creates a joint as strong as the pipe itself. Electrofusion is recommended for repairs, malé průměry, and restricted spaces. Both methods produce leak-tight, homogeneous joints when performed correctly.

Q4: How long does underground HDPE pipe installation take?

Installation time varies widely based on pipe diameter, délka, site conditions, and installation method. A typical open-trench project might install 100–200 meters per day, while HDD projects require more planning but can install long sections in a single pull. Always factor in curing time for fusion joints and pressure testing.

Q5: What equipment is needed for HDPE pipe installation?

Essential equipment includes: fusion machines (butt fusion or electrofusion), heating plates, trubkové svorky, facing tools, excavation equipment (backhoe or trencher), compaction equipment (tampers or rollers), and pressure testing equipment. For HDD, additional directional drilling equipment is required.

Q6: Can HDPE pipes handle freezing conditions?

Ano. PE pipes can be used in temperatures ranging from -40°C to 60°C. HDPE’s flexibility allows it to accommodate frost heave better than rigid pipes. Však, pipes should be buried below the frost line to prevent freezing of contents, and thermal movement must be accounted for in design.

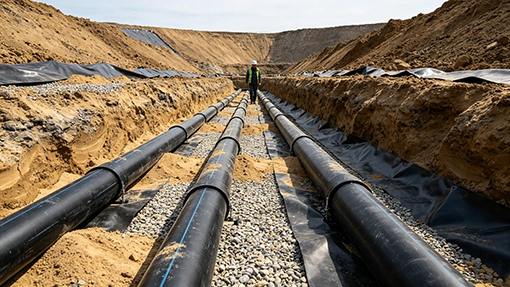

HDPE Pipe Installation in Landfill leachate collection

Závěr: Build a Pipeline That Lasts Decades

Properunderground HDPE pipe installation requires careful attention to every phase of the project — from material selection and trench preparation to fusion welding, placement, and backfilling. By following the step-by-step procedures, using the rightHDPE pipe connection methods, and avoiding common mistakes, you can ensure a pipeline that delivers reliable service for decades.

Whether you are installing a municipal water main, an agricultural irrigation system, or an industrial pipeline, the principles outlined in this guide apply. But even the best installation practices cannot compensate for substandard materials or mismatched fittings. That’s why choosing a trusted supplier is just as critical as choosing the right installation method.

Ready to Source High-Quality HDPE Pipes for Your Next Project?

Luoyang Datang Energy Tech Co., Ltd offer factory-direct HDPE pipes (PE80 & PE100) in SDR11, SDR17, and custom ratings, along with a full range of butt fusion and electrofusion fittings to match every jointing requirement. Every batch is pressure-tested and certified to ISO standards. We also provide fast delivery, competitive bulk pricing, a free engineering consultation – from specification to on-site support.

📞 Get in Touch Today

Don’t leave your underground pipeline to chance. Contact our engineering team for acompetitive quote, Afree technical consultation, or torequest our complete product catalog and fusion welding procedure guides.

We look forward to partnering with you on your next successful HDPE pipeline installation.
