What Is a 2 Way Breeching Inlet Valve and Why Is It Important for Fire Fighting Systems?
When a fire breaks out in a high-rise building or a large industrial complex, every second counts. Traditional fire trucks carry a limited amount of water, and internal water tanks can deplete quickly. This is where the 2 Way Breeching Inlet Valve becomes the ultimate lifesaver for emergency responders.
But what exactly is this valve, and how does it collaborate with other critical components like the gate valve for fire fighting system, fire fighting check valve, at fire fighting hydrant valve? Let’s dive into the mechanics of fire safety infrastructure.
What Is a 2 Way Breeching Inlet Valve and why BSP Threads Matters?
A 2 Way Breeching Inlet Valve is a feed-in fitting installed at the ground level of a building, usually housed in an external inlet cabinet. It features two standard male instantaneous inlets equipped with non-return valves and a single outlet that connects to the building’s dry or wet riser system.
The valve consists of:
Two inlet connections (typically 65mm or 2.5″ BSP male threads)
One outlet connection to the internal system
A non-return mechanism (acting as a fire fighting check valve)
A drain valve for system maintenance
BSP (British Standard Pipe) threads are the international standard for fire fighting equipment in many countries, especially in Europe, Asia, Africa, and the Middle East. Using Mga thread ng BSP ensures that your breeching inlet valve is compatible with standard fire hoses and couplings worldwide.
Tandaan: Always confirm your local thread standard. Some countries use NPT (National Pipe Thread). Mismatched threads cause leaks and could fail during an emergency.
2 Way Breeching Inlet Valve BSP with dual inlets and non-return valve
Working Principle of 2 Way Breeching Inlet Valve
Dual Inlet Water Collection: Two independent inlets receive water from two fire trucks or fire water sources separately, realizing synchronous water intake.
Steady Flow Convergence: Internal streamlined cavity reduces water flow resistance, avoids pressure loss during water convergence, and maintains stable fire water pressure.
Automatic Anti-backflow Protection: Built-in sealing diaphragm matches fire fighting check valve to block reverse water flow instantly when water pressure fluctuates.
Unified Water Outlet: Converged high-pressure water flows to fire hydrant terminals for fire extinguishing work.
Bakit 2 Way Breeching Inlet Valve Matters for Fire Fighting Systems?
1.Improve Emergency Water Supply Flow
Single fire pipeline has limited water supply volume. The dual-inlet design of breeching inlet valve supports double water source input, greatly improving overall water supply flow and meeting high-flow water demand for large-area fire rescue.
2.Avoid Pipeline Backflow & Protect Pipeline Equipment
During fire system startup and shutdown, water pressure fluctuation easily causes backflow, which damages pipeline and fire hydrant. Combined with fire fighting check valve, this breeching inlet valve forms double anti-backflow protection to prolong service life of overall fire valves.
3.Perfect Matching with Full Set Fire Valves
Match fire fighting gate valve: Control overall pipeline opening and closing manually;
Match fire fighting check valve: Secondary anti-backflow protection;
Match fire fighting hydrant valve: Support terminal fire hydrant stable water output;
4.Standard BSP Interface, Easy On-site Installation
Adopts universal BSP thread interface, compatible with most international fire hoses and fire pipeline accessories. No extra conversion fittings needed, saving construction time and engineering cost.
Comparison with Other Fire Fighting Valves
| Tampok | 2 Way Breeching Inlet Valve | Gate Valve for Fire Fighting System | Fire Fighting Check Valve | Fire Fighting Hydrant Valve |
|---|---|---|---|---|
| Primary Function | Dual-source water inlet | Flow control | Backflow prevention | Hose connection point |
| Location | Building exterior | Throughout system | Inline with pipes | Each floor/zone |
| Thread Type | BSP male inlets | BSP or flanged | BSP or flanged | BSP male outlet |
| Check Valve | Built-in | Not included | Primary function | Not included |
| Pressure Rating | 16-20 bar | 16 bar | 16 bar | 16 bar |

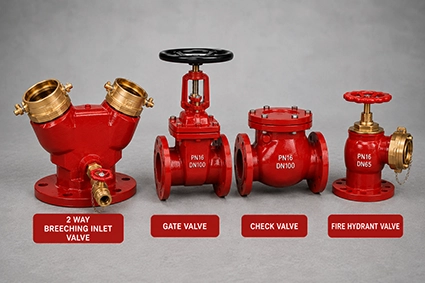

Comparison of 2 Way Breeching Inlet Valve, Gate Valve, Check Valve and Hydrant Valve
Main Application Scenarios
- Outdoor municipal fire hydrant pipeline systems
- High-rise building fire water supply pipe networks
- Industrial factory fire protection supporting systems
- Fire truck water intake and convergence equipment
- Commercial plaza, parking lot fire fighting projects
Installation and Maintenance Tips
Pag-install
Mount the valvevertically on an exterior wall at ground level, clearly marked with “AUTOMATIC SPRINKLER” or “STANDPIPE” signs.
Ensure the outlet pipe is free of debris and slopes slightly downward to drain any residual water after use.
Useapproved thread sealant (PTFE tape or pipe dope) on male threads.
Maintenance
1.Regular Inspection Schedule
To ensure reliable operation, BSP fire fighting valve assemblies require:
Monthly: Visual inspection for damage, kaagnasan, or obstruction
Quarterly: Operational test of the drain valve and check valve mechanism
Annually: Full pressure test and thread inspection
Every 5 taon: Internal inspection and component replacement if necessary
2.Common Issues and Troubleshooting
| Issue | Possible Cause | Solution |
| Water leakage from inlets | Worn check valve seals | Replace seal kit |
| Inlet threads damaged | Cross-threading or impact | Re-thread or replace valve body |
| Drain valve blocked | Debris accumulation | Flush and clean drain port |
| Reduced flow capacity | Internal corrosion or scaling | Descale or replace valve |

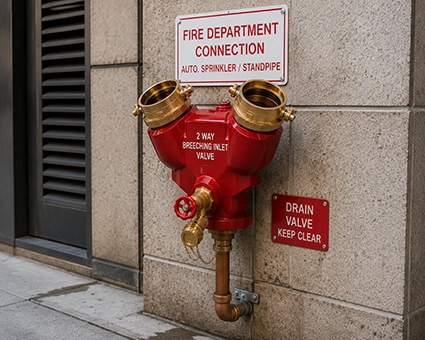

Installation of 2 Way Breeching Inlet Valve on exterior wall
Choosing the Right Fire Fighting Valve Supplier
1.What to Look For in a BSP Fire Fighting Valve Manufacturer
When sourcing 2 Way Breeching Inlet Valves, consider suppliers who offer:
- Certified compliance with BS 5041, SA 671, or NFPA standards
- Material traceability and mill test certificates
- Customizable inlet configurations (2-way, 4-way, or specialized)
- OEM/ODM capabilities for branded fire fighting equipment
- Technical documentation and installation support
2.Why Quality Matters in Fire Fighting Check Valves
A failed fire fighting check valve in a breeching inlet assembly can result in:
- Contaminated water supplies
- Loss of system pressure during fire suppression
- Violation of health and safety regulations
- Potential liability for building owners and managers
Our Advantages of 2 Way Breeching Inlet Valve
Heavy-duty Cast Iron Body: High pressure resistance, durable for long-term outdoor harsh working environment;
Standard BSP Thread: Fully compliant with international fire fighting pipeline standards;
Integrated Anti-backflow Structure: Lower matching cost for fire fighting check valve;
100% Pressure Tested: Each fire fighting valve passes strict hydraulic pressure test before delivery;
Full Matching Service: Support one-stop supply of fire hydrant valve, gate valve and check valve.

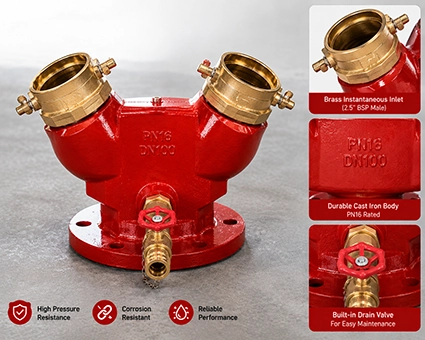

Heavy-duty 2 Way Breeching Inlet Valve with integrated anti-backflow structure
Makipag-ugnayan sa Amin
Luoyang Datang Energy Tech Co., Ltd.
Email: sales@pipesandfittings.net
esther@pipesandfittings.net
Tel / WhatsApp / WeChat: +86 183 3790 0677
We supplyfire fighting gate valves, check valves, hydrant valves, and breeching inlets with international certifications. Ask for a free quote today!
