HDPE Pipe vs Ductile Iron Pipe: Which Is Better for Water Supply Projects?

Selecting the right pipe material for a water supply project is rarely a decision made on purchase price alone. Engineers, project managers, and procurement teams must weigh a complex matrix of variables: service life expectancy, corrosion resistance in the local soil environment, installation logistics, long-term maintenance burden, and total lifecycle cost. Overlooking any one of these factors can lead to premature failure, budget overruns, or operational headaches that persist for decades.

Among the most commonly debated options in modern municipal and industrial water infrastructure are HDPE pipe and ductile iron pipe. Both materials have earned their place in the field through decades of proven performance, yet they serve different project profiles. HDPE pipe and ductile iron pipe are two widely used solutions for water supply systems, and understanding where each excels is the first step toward making an informed engineering decision.

This article breaks down the critical differences between HDPE pipe vs ductile iron pipe, moving beyond spec-sheet comparisons to focus on real-world engineering factors that determine project success.

HDPE pipe vs ductile iron pipe comparison for water supply projects

1. HDPE Pipe and Ductile Iron Pipe Overview

Before diving into the comparison, let us briefly understand what each material is and where it typically fits in water infrastructure.

Píobán HDPE

Poileitiléin ard-dlúis (HDPE) píopa is a flexible thermoplastic pipe manufactured from petroleum-based ethylene. It is produced by extrusion and is available in a wide range of diameters and pressure ratings.

Key characteristics:

• Solúbtha — can bend around obstacles without additional fittings
• Éadrom — approximately one-eighth the weight of ductile iron for the same nominal diameter
• Fusion-welded joints — butt fusion and electrofusion create monolithic, leak-free connections
• Corrosion-resistant — immune to rust, eitinn, and chemical attack
• Service life — 50 chuig 100+ years with proper installation

HDPE is commonly specified for water supply, mining pipelines, córais uisciúcháin, and trenchless installations such as horizontal directional drilling (HDD) and pipe bursting.

Ductile Iron Pipe

Ductile iron pipe is a cast iron product improved through the addition of graphite, which gives it enhanced mechanical strength and ductility compared to traditional cast iron. It is manufactured to AWWA C151/A21.51 standards with cement-mortar lining per AWWA C104.

Key characteristics:

• docht — high structural strength for heavy load applications
• Heavy — requires mechanical handling equipment for diameters above DN 200
• Mechanical joints — bell-and-spigot with rubber gaskets
• Corrosion protection required — needs polyethylene encasement or cathodic protection in aggressive soils
• Service life — 60 chuig 100+ years with proper corrosion protection

Ductile iron has been a mainstay of municipal water infrastructure for decades and remains widely used in urban water networks, córais cosanta dóiteáin, and areas with extreme external loads.

Overview Comparison

HDPE Pipe and Ductile Iron Pipe

2. HDPE vs Ductile Iron Pipe: Key Performance Comparison

This section addresses the engineering properties that most directly influence long-term system performance.

2.1 Friotaíocht Creimthe

Corrosion is often the silent killer of underground water infrastructure. Soil chemistry, moisture content, stray electrical currents, and bacterial activity all conspire to degrade metallic pipes over time.

HDPE offers essentially zero corrosion risk. Because it is a non-metallic thermoplastic, there is no oxidation, no rust, and no electrochemical reaction with the surrounding environment. This makes corrosion resistant HDPE pipe an outstanding choice for aggressive soils, coastal environments with high chloride content, or areas with known stray current issues. Engineers can specify HDPE with confidence that the material will not thin, pit, or perforate due to chemical attack.

Ductile iron, i gcodarsnacht, relies heavily on protective measures. External polyethylene encasement, zinc coatings, and internal cement mortar lining are standard requirements. If these protective layers are compromised during installation or degrade over decades, the underlying iron is vulnerable to graphitic corrosion and tuberculation, which can reduce flow capacity and eventually lead to leaks.

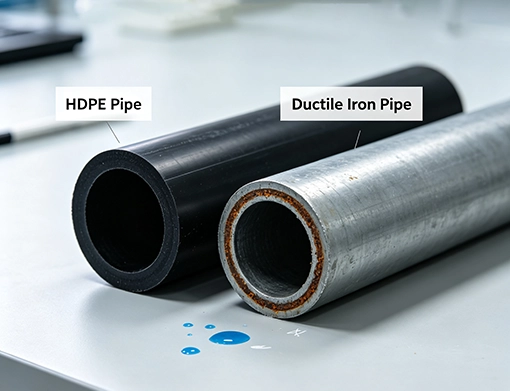

Corrosion Resistance between HDPE Pipe and Ductile Iron Pipe

2.2 Service Life and Durability

There is a common misconception that one material universally outlasts the other. In reality, both HDPE and ductile iron can deliver service lives exceeding 50 years when properly specified, installed, and maintained.

HDPE derives its longevity from chemical inertness and flexibility. It can absorb ground movement, seismic activity, and freeze-thaw cycles without cracking. Impact resistance is high due to its ductile nature, and stress cracking resistance has improved significantly with modern resin grades. Maintenance demand is generally low because there are no coatings to monitor and no cathodic protection systems to maintain.

Ductile iron offers superior mechanical strength and rigidity. It withstands high internal pressures and external loads from heavy traffic or deep burial. Mar sin féin, its durability is contingent on the integrity of its corrosion protection system. Once that system fails, the clock starts ticking on material loss. Maintenance costs over the lifecycle tend to be higher.

2.3 Installation Efficiency

Installation efficiency is where HDPE often wins decisively — and the difference can have a major impact on project schedule and budget.

HDPE installation advantages:

• Éadrom — approximately 30% of the weight of ductile iron for the same bore. This means easier handling, reduced transportation costs, and less need for heavy lifting equipment.
• Fewer joints — HDPE is typically supplied in 12-metre lengths or long coils. A 12-metre coil means roughly 80 joints per kilometre of trunk main, compared to 167 joints per kilometre for 6-metre ductile iron sections.
• Faster joining — A three-person fusion crew averages 8 minutes per DN200 joint, coigilt 80 chuig 120 labour hours per kilometre.
• Trenchless capability — HDPE is the material of choice for horizontal directional drilling, pipe bursting, and sliplining. These methods avoid open trenches, reduce surface disruption, and eliminate road reinstatement costs.
• Solúbthacht — HDPE can bend around obstacles without requiring additional fittings.

Ductile iron installation considerations:

• Heavy — requires cranes and mechanical handling for diameters above DN 200.
• More joints — typical 6-metre sections mean approximately 167 joints per kilometre.
• Slower assembly — each joint must be aligned and gasket-tightened, and every section in corrosive soil needs a protective sleeve.
• Limited trenchless options — ductile iron is generally limited to short jacking applications for trenchless installation.

Engineering takeaway: For projects where installation speed, labour costs, or surface disruption are concerns — particularly in urban environments or challenging terrain — HDPE offers substantial advantages. The productivity gain for PE compared to ductile iron in open-cut installation is typically at least 50%.

Installation between HDPE Pipe and Ductile Iron Pipe

3. Cost Comparison: Initial Cost vs Lifecycle Cost

Too many pipe selection decisions stop at the unit price per meter. Smart engineering economics demands a broader view.

Costas Tosaigh

At the material level, HDPE and ductile iron are often competitive, with regional availability and pipe diameter driving significant variation. Where HDPE pulls ahead is in the total installed cost. Lower transportation expenses, reduced heavy equipment rental, smaller labor crews, and faster installation all compress the upfront project budget. On a water transmission pipeline spanning several kilometers, these savings compound quickly.

Ductile iron carries a heavier material weight premium, and the associated logistics—trucking, crane time, and extended labor hours—push initial costs higher before the first trench is even backfilled.

Lifecycle Cost

Here is where the analysis becomes critical. Lifecycle cost encompasses maintenance, repair, corrosion protection renewal, and eventual replacement.

HDPE’s corrosion immunity and fusion-jointed integrity mean that, once installed correctly, the system largely operates on autopilot. There are no cathodic protection anodes to replace, no external coatings to inspect, and no internal tuberculation to ream out. Over a 50-year horizon, the maintenance cost profile is exceptionally low.

Ductile iron, while robust mechanically, accrues maintenance liabilities. Cathodic protection systems require monitoring and periodic anode replacement. External coatings can be damaged by third-party excavation or natural ground shifting. Internal cement linings can deteriorate, particularly in aggressive water chemistry. These factors must be quantified in any honest lifecycle cost analysis.

4. Feidhmchláir: When to Choose HDPE or Ductile Iron Pipe?

Theory is useful, but engineering is about applying the right material to the right problem. The following decision frameworks reflect typical field conditions.

Choose HDPE Pipe When:

HDPE excels in environments where corrosion is a threat, where installation access is limited, or where project budgets favor lower lifecycle costs. For engineers evaluating how to choose HDPE pipe for a specific project, the material’s adaptability is often its strongest selling point.

Choose Ductile Iron Pipe When:

Ductile iron remains the logical choice where mechanical rigidity, high-pressure rating, and compatibility with legacy systems are non-negotiable. In city centers with heavy trucking routes or where fire hydrant networks demand assured structural performance, iron’s mass is an asset, not a liability.

Applications between HDPE Pipe and Ductile Iron Pipe

5. Key Factors Engineers Should Consider Before Choosing

This section translates the comparisons above into actionable pipe selection factors for your specific project.

1. Operating Pressure

What is the maximum sustained and transient pressure the system will experience? Consult our Treoir Rátála Brú Píobáin HDPE to match your project’s PN rating requirements with the correct SDR and resin classification. Ductile iron typically handles higher pressure classes natively, but HDPE can be engineered to meet most municipal and industrial demands through proper wall thickness selection.

2. Coinníollacha Ithir

Is the soil aggressive? High chloride, low pH, or high sulfide content favors HDPE. Neutral, well-drained soils with low corrosivity may support coated ductile iron, but the protective system must be designed for the specific geochemistry.

3. Installation Environment

Is the project in a congested urban corridor with crane access, or a remote easement where equipment must be carried in by hand? HDPE’s lightweight profile opens up installation options that ductile iron simply cannot match.

4. Pipe Diameter Requirements

Both materials are available in large diameters, but availability and lead times vary by region. For large diameter water pipes exceeding 1000 mm, verify local supply chains before finalizing the specification.

5. Long-Term Maintenance

Who will maintain this system, and what is their technical capacity? HDPE offers a “install and monitor” approach. Ductile iron demands active corrosion management. Be honest about the maintenance culture of the operating entity.

Selection Checklist

For more details on fitting compatibility, féach ar ár dtreoir ar Roghnú na Feistis Píobáin HDPE Ceart le haghaidh Córais Píblíne Brú. If your project involves buried installation, our article on Conas Píopaí HDPE a Shuiteáil Faoi Thalamh covers trenching, bedding, and fusion best practices.

Applications between HDPE Pipe and Ductile Iron Pipe

6. HDPE Pipe vs Ductile Iron Pipe: Cé acu ceann ba chóir duit a roghnú?

After evaluating performance, costas, and application context, the decision usually crystallizes around project priorities.

HDPE is preferred for:

• ✔ Corrosion resistance in aggressive environments
• ✔ Faster installation with smaller crews and less equipment
• ✔ Lower long-term maintenance and lifecycle cost
• ✔ Projects requiring flexible routing and ground-movement tolerance

Ductile iron is preferred for:

• ✔ High mechanical strength under heavy external loads
• ✔ Rigid pipeline requirements and compatibility with existing iron networks
• ✔ Fire protection and high-pressure municipal trunk lines where structural mass is beneficial

There is no universal winner in the HDPE pipe vs ductile iron pipe debate. There is only the right material for the specific engineering problem at hand.

Conclúid

Choosing between HDPE pipe and ductile iron pipe is not about declaring one material superior. It is about aligning material properties with project constraints, environmental conditions, and lifecycle economics. HDPE pipe and ductile iron pipe each occupy essential niches in modern water infrastructure, and the best engineers know when to deploy each.

For water supply projects where corrosion resistance, installation speed, and low maintenance are paramount, HDPE delivers measurable advantages. Where mechanical rigidity and legacy system integration dominate the requirement set, ductile iron remains a sound choice.

For reliable HDPE piping solutions tailored to your project specifications, contact Tá Luoyang Datang Energy Tech Co., Teo to discuss pressure ratings, diameter options, and fusion welding requirements. We supply HDPE pipe and fittings designed for municipal water supply, uisciúcháin, mianadóireacht, and industrial applications worldwide.
