Choosing the Right Control Valve for Industrial Flow Control

Industrial piping systems are not only required to transport fluids but also to maintain stable flow, દબાણ, and operating efficiency. In many industrial applications, simply opening or closing a pipeline is not enough. Precise regulation of fluid flow is essential to ensure system safety, reduce energy consumption, and improve equipment performance.

એ Control Valve is one of the key components used for automatic flow regulation. By adjusting the opening position of the valve, a control valve can manage flow rate, દબાણ, તાપમાન, or liquid level according to changing system requirements.

For industries such as water treatment, HVAC, manufacturing, રાસાયણિક પ્રક્રિયા, and energy systems, selecting the right Industrial Control Valve directly affects the reliability and efficiency of the entire pipeline system.

Different applications require different valve designs. Factors including fluid characteristics, operating pressure, તાપમાન, flow requirements, valve materials, and actuation methods must all be considered before choosing a suitable solution.

This guide explains how to select the right control valve for industrial flow control systems and introduces the key considerations engineers and buyers should understand.

Industrial control valve installed in pipeline system for flow control

What Is a Control Valve and How Does It Work?

એ control valve is a device used to regulate the flow of fluids—liquids, વાયુઓ, or slurries—in a pipeline system. Unlike isolation valves that are designed for fully open or fully closed positions, a control valve modulates flow to achieve a specific setpoint.

A complete control valve assembly consists of three primary components:

• Valve Body: The housing that contains the flow passage and the closure member (plug, બોલ, or disc). The body determines the flow capacity, દબાણ રેટિંગ, and material compatibility.
• Actuator: The power unit that moves the valve stem or shaft in response to a control signal. Actuators can be pneumatic (using compressed air), electric (using a motor), or hydraulic (using pressurized fluid).
• Controller/Positioner: The device that receives a signal from the process sensor, compares it to the setpoint, and sends a command to the actuator to adjust the valve position.

The actuator accepts a control signal—typically a 4-20 mA electric current or a 3-15 psig pneumatic signal—and positions the valve accordingly. This closed-loop control allows the system to maintain stable process conditions despite disturbances in flow, દબાણ, or temperature.

Control valves are used to control several important process parameters: flow rate, level, તાપમાન, દબાણ, and composition. The specific design of the valve—including its body style, trim characteristics, and actuator type—determines how effectively it can perform these functions.

How Does a Control Valve Regulate Flow?

The working principle of a control valve is based on changing the flow area inside the valve. When the valve opening increases, more fluid can pass through. When the opening decreases, flow resistance increases and the flow rate is reduced.

A properly selected Flow Control Valve helps maintain consistent operating conditions, preventing problems such as unstable pressure, excessive energy consumption, and equipment damage.

In industrial systems, control valves are commonly used for:

• Flow regulation
• Pressure control
• Temperature regulation
• Process automation

Control valve structure showing valve body actuator and flow control components

Main Types of Industrial Control Valves

Understanding the different types of industrial control valves is essential for proper selection. Each type is optimized for specific applications and control requirements.

Pressure Control Valve

A pressure control valve is designed to maintain stable pressure in pipeline systems. These valves automatically adjust their opening to keep pressure within a predetermined range, regardless of variations in flow rate or upstream pressure.

Common types of pressure control valves include:

• Pressure Reducing Valves (PRVs): Reduce a higher inlet pressure to a lower, constant outlet pressure.
• Pressure Sustaining Valves (PSVs): Maintain a minimum upstream pressure by relieving excess pressure.
• Pressure Relief Valves: Protect systems from overpressure by opening when pressure exceeds a set point.

Pressure control valves are widely used in water supply systems, industrial pipelines, and fire protection systems to prevent pressure fluctuations that could damage equipment or compromise process quality.

Flow Control Valve

એ flow control valve regulates the flow rate of fluid through a pipeline. By modulating the valve opening, these devices maintain a consistent flow rate despite changes in upstream pressure or downstream demand.

Flow control valves come in several configurations:

• Fixed Flow: Pre-set flow rate that cannot be adjusted
• Adjustable Flow: Manual adjustment of flow rate
• Throttling Flow: Continuous modulation for precise flow control
• Pressure-Compensated Flow: Maintains constant flow regardless of pressure changes

These valves are essential in HVAC systems, water treatment plants, and manufacturing processes where consistent fluid distribution is critical.

Automatic Control Valve

એન automatic control valve uses sensors, controllers, and actuators to adjust valve position without manual intervention. These valves are integral to modern industrial automation.

Automatic control valves are primarily used in industries such as water treatment, petrochemical, વીજ ઉત્પાદન, HVAC, ફૂડ પ્રોસેસિંગ, and pharmaceuticals. They can automatically adjust the valve opening based on incoming flow conditions, preventing overflow or insufficient water levels.

The rise of smart valves equipped with Industrial Internet of Things (IIoT) capabilities and predictive maintenance features is driving the adoption of automatic control valves across industries.

Hydraulic Control Valve

એ hydraulic control valve uses the fluid’s own pressure to operate the valve mechanism. These valves are particularly well-suited for water systems and large pipelines where external power sources may be unavailable or impractical.

Hydraulic control valves can perform multiple functions:

• Water level control
• Pressure regulation
• Flow limitation
• Anti-backflow protection
• Overpressure protection

The 200X pressure reducing valve is a common example of an automatic hydraulic control valve designed for pipeline water pressure stabilization.

Different types of industrial control valves for pressure flow and automatic regulation

How to Choose Between Different Control Valve Types?

The correct valve type depends on the actual operating requirements of the system.

A simple selection approach is:

Selecting the correct Industrial Control Valve can significantly improve system efficiency, reduce operating costs, and extend equipment service life.

Key Factors When Choosing a Control Valve

Selecting the right control valve requires careful evaluation of multiple factors. Here are the most critical considerations.

1. Fluid Media

The type of fluid being controlled is the starting point for valve selection. ધ્યાનમાં લો:

• પાણી: Generally non-corrosive, but may contain impurities that cause wear
• તેલ: May require special seals and materials resistant to petroleum products
• ગેસ: Requires consideration of compressibility and potential for noise
• Corrosive Fluids: Demand corrosion-resistant materials such as stainless steel

The fluid’s properties—including viscosity, તાપમાન, and presence of solids—directly impact valve material selection and trim design.

2. Flow Rate Requirements

Proper valve sizing is essential for effective control. The valve flow coefficient (Cv) is the standard metric for sizing flow control valves.

Cv is defined as the number of US gallons per minute of 60°F water that will pass through a fully open valve with a 1 psi pressure drop.

For liquid applications, the Cv is calculated using:
Cv = Q × √(જી / ΔP)
Where:

• Q = Flow rate (GPM)
• G = Specific gravity of the fluid (water = 1.0)
• ΔP = Pressure drop across the valve (psi)

Example: For 200 GPM of water with a 30 psi pressure drop:
Cv = 200 × √(1.0 / 30) = 200 × 0.1826 = 36.5

A valve with a rated Cv of at least 36.5 at full open should be selected. Best practice is to size the valve to operate at 60-80% open at normal flow, leaving margin for process upsets.

For liquid service, the pressure drop should not exceed 50% of the upstream pressure.

3. Pressure and Temperature Rating

The valve must be rated for the maximum operating pressure and temperature of the system.

Key considerations:

• કામનું દબાણ: The valve’s pressure class must exceed the maximum system pressure
• Operating Temperature: Material strength decreases at high temperatures; seals and packing must be compatible
• Pressure Drop: Higher pressure drops provide better control but increase energy consumption and wear

A general guideline is that the valve pressure drop should be 25-33% of the total pressure drop from supply to the end of the pipe. If you can dictate the pressure drop, use 20% of the total system pressure drop or 10 psi (0.7 બાર), whichever is greater.

4. Valve Material

Material selection directly impacts valve durability, સલામતી, and compliance.

• સ્ટેનલેસ સ્ટીલ is favored for corrosive environments. Grade 316 contains molybdenum, making it ideal for marine and chemical applications.
• Carbon Steel offers excellent strength at a lower cost but requires protection against rust.
• પિત્તળ provides good corrosion resistance in water, તેલ, અને ગેસ એપ્લિકેશન.

5. Actuation Method

The choice of actuator determines how the valve is operated and its response characteristics.

• Pneumatic actuators are common on modulating control valves because instrument air is clean and fast.
• Electric actuators are useful where instrument air is unavailable, where remote electrical control is preferred, or where the valve does not require very fast stroking.
• Hydraulic actuators are used when the valve needs high force or high torque in a compact package, suitable for large valves and severe service conditions.

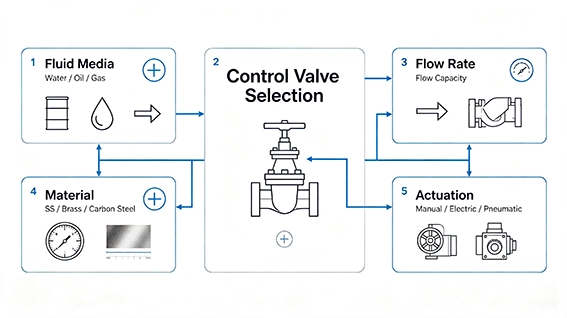

Control valve selection factors including pressure flow material and actuation method

Control Valve Applications in Industrial Systems

એ Control Valve plays an important role in modern industrial systems where accurate fluid regulation and stable operation are required. Unlike traditional isolation valves that are mainly used for opening and closing pipelines, control valves are designed to continuously adjust operating parameters based on system conditions.

With the development of industrial automation, the demand for reliable Industrial Control Valve solutions continues to increase. These valves are widely used in water treatment, HVAC, manufacturing, energy, and fire protection systems.

The correct valve selection helps maintain stable flow, improve energy efficiency, and reduce maintenance requirements.

Water Treatment Systems: Ensuring Stable Water Flow Control

Water treatment is one of the most common applications for control valves. In water supply and wastewater treatment systems, precise regulation of flow and pressure is essential for reliable operation.

એ Water Control Valve helps manage water distribution by adjusting flow according to demand changes. This prevents excessive pressure, improves system balance, and protects downstream equipment.

Typical applications include:

• Municipal water supply networks
• Industrial water circulation systems
• Wastewater treatment plants
• Irrigation systems

For large-scale water systems, hydraulic control valves and automatic control valves are often selected because they can provide stable regulation without frequent manual adjustment.

HVAC સિસ્ટમ્સ: Improving Energy Efficiency and Comfort

Heating, વેન્ટિલેશન, and air conditioning systems require accurate flow regulation to maintain consistent indoor temperatures and optimize energy consumption.

In HVAC applications, a Flow Control Valve regulates the circulation of chilled water or hot water between equipment and terminal units.

Proper valve selection can help:

• Improve temperature control accuracy
• Reduce unnecessary energy consumption
• Balance system performance

ઉદાહરણ તરીકે, in a commercial building, automatic control valves can adjust water flow according to room temperature changes, improving both comfort and operational efficiency.

Industrial Manufacturing: Supporting Process Automation

Manufacturing industries often require precise control of fluid movement during production processes. Small variations in flow or pressure can affect product quality and production efficiency.

Industrial Control Valve solutions are commonly used in:

• Chemical processing equipment
• Production lines
• Cooling systems
• Process pipelines

In automated production environments, electric or pneumatic control valves allow centralized monitoring and adjustment, reducing manual intervention and improving process consistency.

Fire Protection Systems: Reliable Pressure and Flow Management

Fire protection systems require highly reliable pipeline control because stable water supply is critical during emergency situations.

Control valves are used in fire protection applications to regulate:

• Water pressure
• Flow distribution
• System balance

A properly selected valve helps ensure that different sections of a fire protection system receive sufficient water supply.

Related products such as fire protection valves, વાલ્વ તપાસો, and butterfly valves are often used together with control valve solutions to build complete fire pipeline systems.

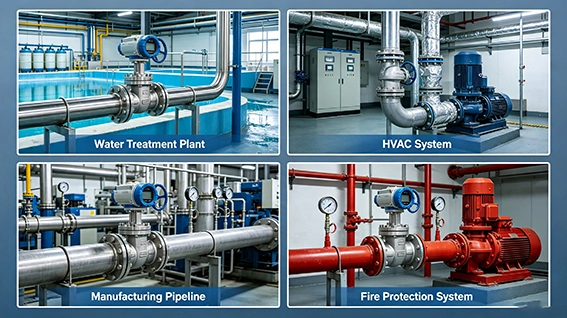

Industrial control valve applications in water treatment HVAC manufacturing and fire protection systems

Control Valve vs Ball Valve: Which One Should You Choose?

When selecting a valve for an industrial pipeline system, many engineers compare Control Valve અને Ball Valve because both can be used for fluid management. જોકે, their functions and operating purposes are different.

The main difference is that control valves are designed for regulation, while ball valves are mainly designed for isolation.

When Should You Choose a Control Valve?

A control valve is the better choice when the system requires:

• Continuous flow adjustment
• Pressure stabilization
• Automatic process control
• Precise regulation

Typical applications:

• HVAC systems
• Water treatment
• Manufacturing processes
• Energy systems

When Should You Choose a Ball Valve?

એ ball valve is ideal when the main requirement is reliable shut-off and fast operation.

Advantages include:

• નીચા પ્રવાહ પ્રતિકાર
• Quick operation
• ઉત્તમ સીલિંગ કામગીરી

For automated applications requiring frequent opening and closing, an electric actuated ball valve can also provide remote operation and improved efficiency.

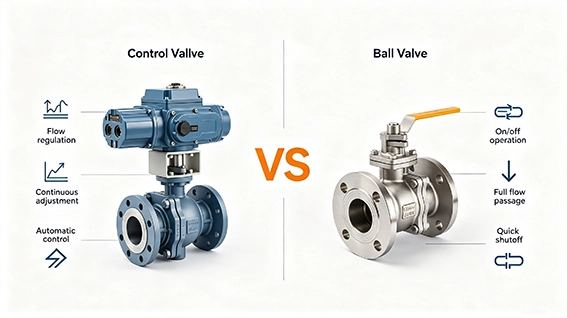

Control valve versus ball valve comparison for industrial flow control applications

Why Choose Our Industrial Control Valve Solutions

At Luoyang Datang Energy Tech Co., લિ, we understand that every industrial application has unique requirements. Our comprehensive range of industrial valves and pipeline solutions is designed to meet the demands of diverse industries including water treatment, HVAC, manufacturing, oil and gas, and chemical processing.

What sets us apart:

• Extensive Product Range: From control valves and ball valves to globe valves and butterfly valves, we offer complete solutions for flow regulation and isolation
• Customization Capabilities: We work with you to specify the right materials, માપો, and actuation methods for your specific application
• Quality Assurance: All products meet rigorous international standards and are tested for performance and reliability
• Export Experience: With years of experience serving global markets, we understand the requirements of international projects
• Technical Expertise: Our engineering team provides application support to ensure you select the right valve for your system

Whether you need electric actuated ball valve systems for automated control or industrial butterfly valves for large pipeline applications, we have the expertise and product range to deliver.

Contact us today to discuss your project requirements and find the right valve solution for your application.
