HDPE Pipe Selection Mistakes: 7 Factors Engineers Should Check Before Buying

Many pipeline failures are not caused by poor HDPE material quality. Instead, they often result from incorrect selection decisions, such as choosing the wrong pressure rating, unsuitable SDR classification, improper diameter, or an HDPE

pipe grade that does not match the working environment. For engineers, 'yan kwangila, and procurement teams, HDPE pipe selection should be based on multiple technical factors rather than simply comparing product prices or pipe dimensions. The most common mistakes include ignoring operating pressure, selecting the wrong PE material grade, misunderstanding SDR ratings, and overlooking installation conditions. These mistakes may increase maintenance costs, reduce service life, and affect the reliability of the entire pipeline system.

This article explains the seven key HDPE pipe selection mistakes engineers should avoid before purchasing, helping you choose the most suitable HDPE pipe solution for water supply, ban ruwa, masana'antu, da aikace-aikacen ma'adinai.

HDPE pipe selection for water supply engineering project

Mistake 1: Choosing HDPE Pipes Without Considering Pressure Requirements

One of the most common mistakes in HDPE pipe selection is focusing only on pipe diameter while ignoring pressure requirements. A pipeline system is designed to operate under specific pressure conditions. Selecting an HDPE pipe with insufficient pressure capacity may result in deformation, yabo, or premature failure during operation.

Before selecting an HDPE pipe, engineers should evaluate:

• Matsin aiki
• Maximum allowable pressure
• Pressure surge caused by pumps or valves
• Safety margin

Understanding HDPE Pipe Pressure Rating

HDPE pipe pressure capability is usually related to:

• Material grade
• Kaurin bango
• SDR rating

A lower SDR number means a thicker pipe wall and generally higher pressure resistance.

Choosing the correct pressure rating ensures that the HDPE pipe can withstand normal operating conditions and unexpected pressure fluctuations throughout its service life. Misali, a municipal water supply pipeline may require PN10 or PN16 HDPE pipes depending on the system design, while a low-pressure irrigation system may use a different pressure class.

HDPE pipe pressure rating PN6 PN10 PN16 comparison

Mistake 2: Ignoring PE Material Grade (PE80 vs PE100)

Not all HDPE is created equal. The material grade—PE80 or PE100—directly affects the pipe’s pressure capability, crack resistance, and service life. Yet many specifiers treat them as interchangeable. They are not.

PE grades are defined by theirMinimum Required Strength (MRS) —the predicted long-term hydrostatic strength at 20°C after 50 shekaru na hidima.

• PE80 has an MRS of 8.0 MPa
• PE100 has an MRS of 10.0 MPa

PE80 vs PE100 Comparison

PE100’s advantages are not marginal—they are significant. Higher design stress allows operation at higher pressures or, alternatively, thinner walls for the same pressure rating. PE100 also offers greater fracture resistance, which is particularly important for large-diameter pipes. PE80, while still available, is increasingly considered a second-tier choice limited to specific applications like smaller-diameter gas mains and legacy system replacements.

Key takeaway: For any new water supply, masana'antu, or municipal project, specifyPE100 as the minimum grade. The marginal cost increase is negligible compared to the performance and longevity gains.

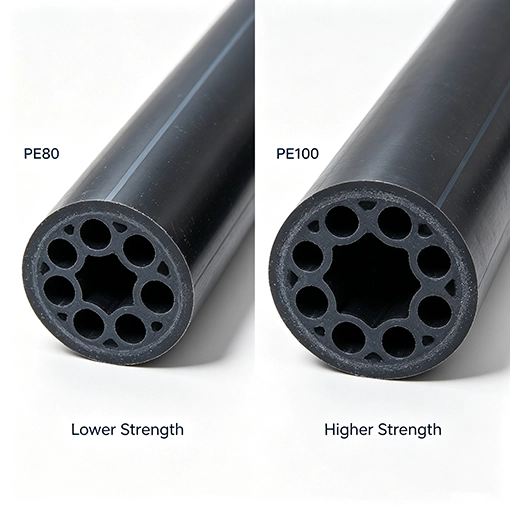

PE100 HDPE pipe vs PE80 material grade comparison

Mistake 3: Selecting the Wrong SDR Class for Your HDPE Pipe Application

One of the most technical but frequently misunderstood aspects of HDPE pipe selection is the SDR rating. Many buyers know that SDR numbers are related to pipe strength, but they may not fully understand how SDR affects wall thickness, karfin matsa lamba, and application suitability. Choosing an incorrect SDR class can lead to either insufficient pressure performance or unnecessary material costs.

What Does SDR Mean in HDPE Pipes?

SDR stands for Matsakaicin Girman Rabo, which represents the relationship between the outside diameter of the pipe and its wall thickness. A lower SDR value means a thicker pipe wall and generally allows the pipe to withstand higher internal pressure.

Misali:

• SDR11 HDPE pipe has a thicker wall and higher pressure capability.
• SDR17 HDPE pipe has a thinner wall and is suitable for lower pressure applications.

SDR11 vs SDR13.6 vs SDR17 HDPE Pipe Comparison

How Engineers Should Select the Correct SDR Rating

The correct SDR selection depends on several project conditions:

1. Operating Pressure

Higher pressure systems require HDPE pipes with thicker walls and lower SDR values.

Misali:

• Industrial water pipelines may require SDR11 HDPE pipes.
• Agricultural irrigation systems may use SDR17 depending on pressure requirements.

2. Safety Requirements

Pipeline systems operating continuously for decades should include sufficient safety margins. Municipal water supply projects, for example, usually prioritize reliability and long service life rather than selecting the lowest initial cost option.

3. Installation Environment

Underground pipelines may experience:

• Soil pressure
• External loads
• Temperature changes

Saboda haka, SDR selection should consider not only internal pressure but also installation conditions.

Common SDR Selection Mistakes

A professional HDPE pipe supplier should help customers select the appropriate SDR class according to pressure requirements, pipe diameter, material grade, and application conditions.

Saukewa: SDR11，SDR13.6 and SDR17 HDPE pipe wall thickness comparison

Mistake 4: Focusing Only on Initial Pipe Cost Instead of Total Project Value

Price is always an important factor in pipeline procurement, but selecting HDPE pipes based only on the lowest purchase price can create long-term problems. A cheaper pipe may reduce initial investment, but it may not provide the required durability, aikin matsa lamba, or installation efficiency. For engineering projects, the real cost of a pipeline system includes much more than the pipe itself.

Factors Affecting Total HDPE Pipeline Cost

Why HDPE Pipes Often Provide Better Lifecycle Value

HDPE pipes are widely used because they offer:

• Excellent Corrosion Resistance：Sabanin bututun ƙarfe, HDPE does not rust or corrode easily, making it suitable for underground and harsh environments.
• Lower Maintenance Requirements：The flexible structure and reliable fusion connections of HDPE systems reduce leakage risks.
• Tsawon Rayuwa：Properly selected HDPE pipes can provide decades of reliable operation.

Example: Low-Cost vs Properly Selected HDPE Pipe

For professional projects, the goal should not be purchasing the cheapest HDPE pipe, but selecting the most cost-effective solution that matches the application requirements.

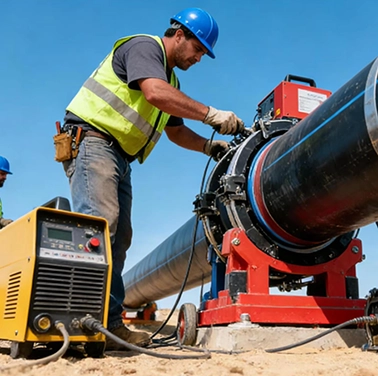

HDPE pipe butt fusion and electrofusion installation methods

Mistake 5: Ignoring Installation Method and Connection Requirements

Even when the correct HDPE pipe is selected, improper installation methods can affect pipeline performance. Unlike traditional rigid piping systems, HDPE pipes require suitable fusion techniques to achieve reliable and leak-free connections.

Common HDPE Pipe Connection Methods

Butt Fusion Welding

Butt fusion is commonly used for large diameter HDPE pipes. The pipe ends are heated and pressed together to form a strong molecular bond.

Advantages include:

• High connection strength
• Excellent leakage resistance
• Suitable for long-distance pipelines

Electrofusion Connection

Electrofusion fittings use embedded heating elements to create a secure connection between pipes and fittings.

They are often preferred for:

• Pipeline repairs
• Limited working spaces
• Complex installation conditions

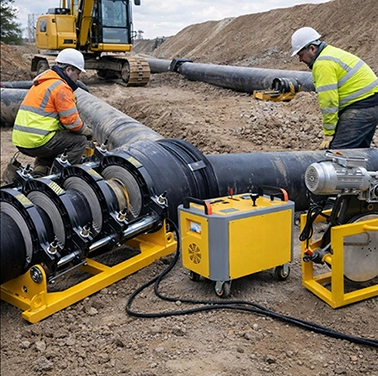

HDPE pipe butt fusion and electrofusion installation methods

Mistake 6: Choosing the Incorrect HDPE Pipe Diameter

Selecting the correct pipe diameter is one of the most important steps in HDPE pipe selection, but it is also an area where many engineering projects make mistakes. Some buyers choose pipe diameter based only on existing pipeline size or initial cost considerations, without fully evaluating flow requirements, pressure loss, and future expansion needs.

An incorrectly sized HDPE pipe can negatively affect system performance. A pipe that is too small may cause:

• Excessive pressure loss
• Reduced flow capacity
• Higher pumping energy consumption

A pipe that is unnecessarily oversized may result in:

• Higher material cost
• More difficult installation
• Inefficient project investment

Key Factors for HDPE Pipe Diameter Selection

Engineers should evaluate the following parameters before determining the pipe diameter:

Small Diameter vs Large Diameter HDPE Pipes

HDPE pipes are available in a wide range of diameters, from small distribution pipelines to large infrastructure projects.

Consider Future Demand, Not Only Current Requirements

A common mistake is selecting a pipe size that only meets current demand. For long-term projects, engineers should consider whether the pipeline may need to support:

• Increased water consumption
• Additional users
• Expanded production capacity

Choosing a slightly larger HDPE pipe during initial construction may reduce future replacement costs and improve system flexibility.

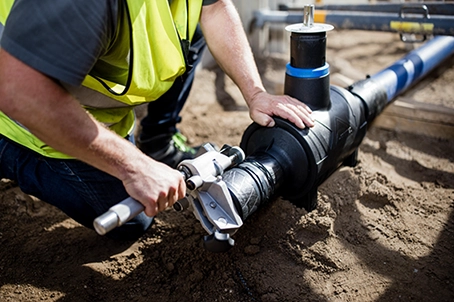

HDPE pipe butt fusion and electrofusion installation methods

Mistake 7: Ignoring the Application Environment

HDPE pipes are widely used in many industries, but different applications have different requirements. A pipe suitable for agricultural irrigation may not necessarily be the best choice for industrial or mining applications.

The correct HDPE pipe selection should consider:

• Medium being transported
• Environmental conditions
• Pressure requirements
• Chemical exposure
• Mechanical stress

HDPE Pipe Selection for Different Applications

1. HDPE Pipe for Water Supply Systems

Municipal and commercial water supply projects usually prioritize reliability, aminci, da tsawon rayuwar sabis.

Important selection factors include:

• PE100 material grade
• Appropriate pressure rating
• Stable fusion connection
• Compliance with drinking water requirements

For pressure water supply systems, engineers usually select HDPE pipes according to operating pressure, pipeline length, and hydraulic requirements.

2. HDPE Pipe for Agricultural Irrigation

Agricultural irrigation systems require pipes that can provide efficient water distribution while maintaining cost effectiveness.

Important considerations include:

• Large coverage area
• Outdoor installation conditions
• sassauci
• Easy installation

HDPE pipes are commonly preferred in irrigation projects because they are lightweight, lalata-resistant, and suitable for underground installation.

3. HDPE Pipe for Industrial Applications

Industrial pipeline systems often require higher durability due to complex operating conditions.

Applications include:

• Process water systems
• Chemical transportation
• Cooling water pipelines
• Wastewater treatment systems

Engineers should carefully evaluate chemical compatibility and pressure requirements before selecting HDPE pipes.

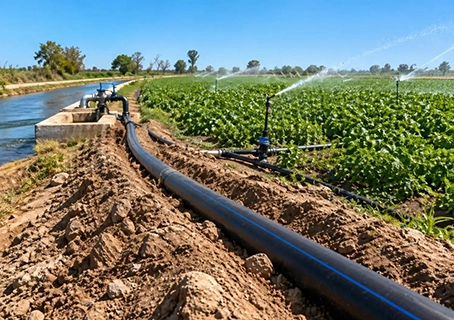

HDPE pipe applications in irrigation systems

4. HDPE Pipe for Mining and Slurry Applications

Mining applications create some of the most demanding conditions for pipeline systems.

HDPE pipes are often selected because of:

• Excellent abrasion resistance
• High impact resistance
• Flexible installation capability

For slurry transportation, engineers must consider pipe wall thickness, pressure rating, and abrasion conditions.

HDPE Pipe Selection Checklist Before Purchase

Before placing an order, engineers and buyers should confirm the following points:

A professional HDPE pipe supplier should provide technical support during the selection process, helping customers choose the most suitable specification instead of simply supplying standard products.

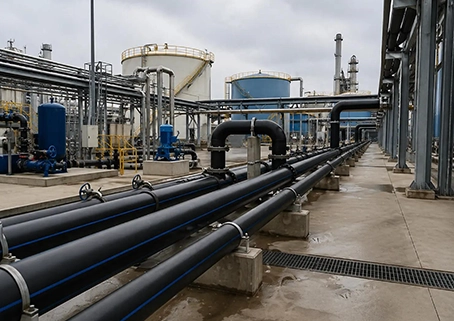

HDPE pipe applications in industrial systems

Kammalawa

Choosing the right HDPE pipe is not simply a matter of selecting a pipe size or comparing prices. A successful pipeline project requires careful evaluation of pressure requirements, material grade, SDR classification, diameter, installation method, and application environment.

The most common HDPE pipe selection mistakes happen when buyers focus on only one factor while ignoring the complete system requirements. Misali, selecting a lower-cost pipe without considering pressure performance may lead to higher maintenance expenses in the future. Choosing the wrong SDR class may affect pipeline reliability, while ignoring installation requirements may increase leakage risks.

A professional HDPE pipe selection process should always focus on long-term performance, aminci, and total project value. By avoiding these seven common mistakes, engineers and project managers can select HDPE pipe solutions that provide reliable performance for decades in water supply, ban ruwa, masana'antu, da aikace-aikacen ma'adinai.

Work With a Reliable HDPE Pipe Manufacturer

Selecting the right pipe is only part of a successful pipeline project. Working with an experienced HDPE pipe manufacturer ensures that customers receive consistent product quality, accurate technical specifications, and professional support during the selection process. A reliable supplier should be able to provide:

Complete HDPE Pipe Specifications

Including:

• Pipe diameter options
• SDR classifications
• Pressure ratings
• PE100 material solutions

Application-Based Recommendations

Different projects require different HDPE pipe solutions. A professional manufacturer can help customers select suitable products for:

• Municipal water supply systems
• Agricultural irrigation networks
• Industrial pipelines
• Mining slurry transportation

Quality Control and Manufacturing Reliability

High-quality HDPE pipes should be manufactured under strict quality control procedures to ensure:

• Stable mechanical performance
• Consistent dimensions
• Reliable pressure resistance
• Rayuwa mai tsawo

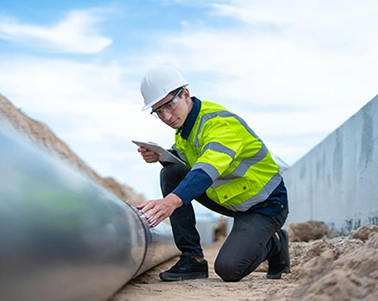

HDPE pipe manufacturer providing customized pipeline solutions

Choose the Right HDPE Pipe Solution for Your Project

Whether you are developing a municipal water project, agricultural irrigation system, industrial pipeline, or mining application, selecting the correct HDPE pipe specification is essential for long-term success.

Abubuwan da aka bayar na Luoyang Datang Energy Tech Co., Ltd., Ltd can help evaluate your project requirements and recommend suitable HDPE pipe solutions based on:

• Matsin aiki
• diamita bututu
• SDR requirements
• Application conditions
• Installation method

Tuntube mu a yau to discuss your HDPE pipe requirements and receive a professional solution for your pipeline project.
