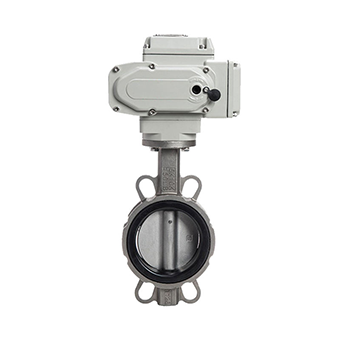

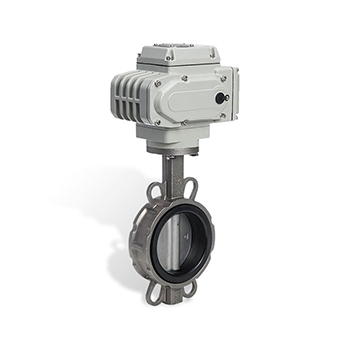

Električni leptir ventil | Električni pogon | PVC tijelo + EPDM brtva | DN50-DN600 | Kontrola protoka otporna na koroziju

Pregled proizvoda

TheElektrični leptir ventil je visokih performansi, electrically actuated flow control valve designed for reliable on/off and modulating service in water, zrak, plin, ulje, kemijski, and steam applications. Featuring a lightweight, corrosion-resistant PVC body with an EPDM seat, this valve provides excellent sealing performance, bubble-tight shut-off, and long service life in aggressive and corrosive environments. The electric actuator enables remote operation, precise positioning, and seamless integration with PLC, DCS, and SCADA control systems. Available in sizes from DN50 to DN600 with wafer or lug connections, this valve is ideal for water treatment, chemical processing, HVAC, ulje & plin, and industrial fluid control systems. With CE certification, OEM/ODM customization support, this valve is the trusted choice for engineers requiring reliable, automated flow control in corrosive media applications.

Električni leptir ventil

Tehničke specifikacije

Električni leptir ventil

Princip rada

The electric butterfly valve operates through an automated, precision-controlled mechanism:

• 1. Actuator Operation: The electric actuator receives a control signal (on/off, 4-20mA, or 0-10V) from the control system. The actuator motor drives the gear train, which rotates the valve stem.
• 2. Valve Operation: The stem rotates the disc 90° from fully closed (0°) to fully open (90°), with intermediate positions for modulating control.
• 3. Position Feedback: The actuator provides position feedback to the control system, enabling precise monitoring and control of valve position.

Ključne značajke

• 1. Electric Actuator – Remote & Automated Control
• 2. PVC Body – Lightweight & Corrosion-Resistant
• 3. EPDM Seat – Bubble-Tight Sealing
• 4. Dvosmjerno brtvljenje – fleksibilna instalacija
• 5. IP67 Weatherproof Actuator – Indoor & Outdoor Installation
• 6. Multi-Voltage & Multi-Signal Compatibility

Prijave

• 1. Voda & Wastewater Treatment
• 2. Kemijska obrada
• 3. Ulje & Plinovodi
• 4. HVAC & Steam Systems
• 5. Industrial Automation

Električni leptir ventil

Pakiranje i otprema

Pakiranje ovisi o vrsti i količini proizvoda. Options include carton boxes or wooden crates with proper protection for actuator and valve body. Dostava se može organizirati morem, željeznička pruga, zrak, ili prema zahtjevu kupca.

Uvjeti plaćanja

T/T, L/C po viđenju, Western Union, PayPal, Kreditna kartica, itd.

Profil tvrtke

Luoyang Datang Energy Tech Co., doo je profesionalni dobavljač industrijskih ventila, dedicated to providing reliable flow control solutions for water treatment, kemijski, ulje & plin, HVAC, i industrijskih cjevovodnih sustava diljem svijeta. All products are manufactured to international standards with CE and ISO 9001 potvrde. S preko 10 godine iskustva, moderan objekt od 80,000 m², i 200+ stručnih djelatnika, služimo klijentima u 10+ zemlje s kvalitetnim proizvodima, konkurentne cijene, i pouzdanu isporuku.

Električni leptir ventil

FAQ

1. What is the difference between an electric butterfly valve and a pneumatic butterfly valve?

An electric butterfly valve uses electrical power, requires no air supply, offers higher precision, and is suitable for applications without compressed air systems. A pneumatic butterfly valve offers faster response, better explosion-proof performance, and is suitable for hazardous areas with existing air supply. The choice depends on site power/air supply conditions and control accuracy requirements.

2. What is the difference between modulating and on/off electric actuators?

An on/off actuator provides only fully open or fully closed control, suitable for simple switching applications. A modulating actuator accepts 4-20mA or 0-10V analog signals for 0-100% precise position control, suitable for applications requiring accurate flow regulation.

3. What media is the PVC body suitable for?

The PVC body is suitable for water, otpadne vode, zrak, plin, ulje, kemikalije, kiseline, lužine, i blage kemikalije. PVC offers excellent corrosion resistance but is not recommended for high-temperature (>80°C) or organic solvent applications.

4. What is the temperature range of the EPDM seat?

The EPDM (Etilen propilen dien monomer) seat operates from -10°C to +80°C. EPDM offers excellent resistance to water, weathering, ozon, and aging, but is not recommended for petroleum-based oils or strong acids.

5. What is the protection rating of the electric actuator?

The standard protection rating is IP67, providing complete protection against dust and temporary immersion in water, suitable for outdoor installation and washdown environments. Higher protection ratings (IP68) are available upon request.
