2 Valvola a sfera motorizzata Way vs. Elettrovalvola: Che vince nei sistemi di tubazioni automatizzate?
In the rapidly evolving landscape of industrial automation, selecting the right valve technology can make or break your piping system’s efficiency, affidabilità, and long-term operational costs. Two of the most commonly compared valve types in automated piping systems are the 2 way motorized ball valve and the solenoid valve. While both serve the fundamental purpose of controlling fluid flow, their underlying mechanisms, performance characteristics, and ideal applications differ significantly.
If you’ve been following our recent content on flow control solutions—from brass spring loaded check valves A alto-pressure carbon steel hydraulic ball valves—you’ll recognize that valve selection is never a one-size-fits-all decision. Today, we dive deep into the motorized ball valve versus solenoid valve debate to help you determine which technology truly wins in your automated piping system.
Cos'è un 2 Way Motorized Ball Valve?
UN 2 way motorized ball valve is an automated valve that uses an electric actuator or pneumatic actuator to rotate the ball and control fluid flow between two ports.
Key Types Included:
- Electrical Ball Valve
- Motorized Ball Valve
- Pneumatic Actuated Ball Valve
- Clamp Type Ball Valve

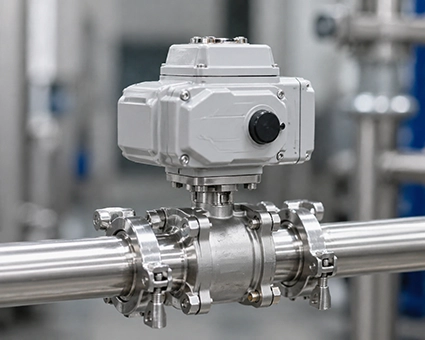

2 way electrical ball valve clamp type industrial system
What Is a Solenoid Valve?
A solenoid valve is an electromechanical valve that opens or closes using a magnetic coil. It is widely used for small flow control systems.
Caratteristiche:
- Fast response
- Suitable for small flow
- Limited pressure capacity

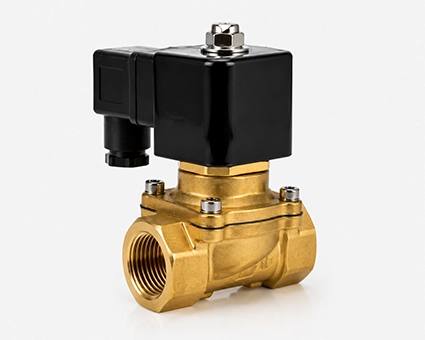

a solenoid valve
Key Differences: Motorized Ball Valve vs Solenoid Valve
| Metric | 2 Way Motorized Ball Valve | Elettrovalvola |
| Opening / Closing Speed | 2–3 seconds | Milliseconds |
| Flow Capacity (Cv) | Alto (full port, low ΔP) | Low to medium (higher ΔP) |
| Pressure Handling | Alto | Low to medium |
| Pipe Size Range | 1/4″ to 8″+ | Typically ≤ 2″ |
| Media Tolerance | Dirty fluids, particles, viscous | Clean, particle-free fluids |
| Modulating Control | SÌ (with positioner) | Limited / NO |
| Power Consumption | Only when moving | Continuous (for normally closed) |
| Durabilità | Alto (gear-driven, robust) | Moderate (coil and plunger wear) |
| Water Hammer Risk | Basso (gradual opening) | Alto (instant opening) |
| Initial Cost | Più alto | Inferiore |
| Long-term Operating Cost | Inferiore (energy efficient) | Più alto (continuous power draw) |
| Manutenzione | Basso | Moderate (coil, plunger, seals) |

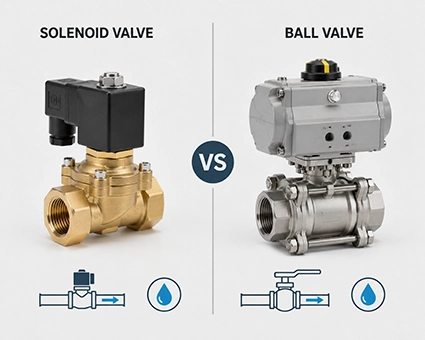

solenoid valve vs ball valve comparison
Where Pneumatic Actuated Ball Valve Fits In
Pneumatic actuated ball valves are ideal for fast switching industrial environments where compressed air is available.
Vantaggi:
- Fast response
- Suitable for automation lines
- High reliability
When to Choose a 2 Way Motorized Ball Valve
Choose a 2 way motorized ball valve when:
| Scenario | Perché |
| Large pipe sizes (≥ 1″) | Motorized ball valves scale up easily; solenoids struggle |
| High pressure or high flow | Ball valves handle higher pressures and flow rates |
| Dirty or particulate-laden media | Ball valves wipe debris from seals; solenoids clog |
| Energy efficiency is a priority | Ball valves only draw power when moving |
| Water hammer must be minimized | Gradual opening reduces pressure surge |
| Modulating / flow control needed | Ball valves support positioners for precise control |
| Long-term reliability | Gear-driven mechanism outlasts solenoid plungers |
When to Choose a Solenoid Valve
Choose a solenoid valve when:
| Scenario | Perché |
| Small pipe sizes (≤ 1/2″) | Solenoids are compact and cost-effective |
| Clean, particle-free media | No clogging risk |
| Millisecond response required | Solenoids are unmatched in speed |
| Low pressure and low flow | Within solenoid capabilities |
| Frequent on/off cycling | Solenoids can cycle thousands of times daily |
| Space is extremely limited | Compact footprint |
| Budget is the primary constraint | Lower initial cost for small sizes |

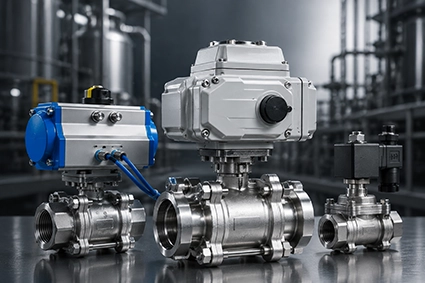

Valvola Confronto
In-Depth Application Analysis Comparison
Ideal Applications for Motorized Ball Valve
HVAC systems& Building Automation
Motorized ball valves excel in heating, ventilazione, and air conditioning systems where precise flow modulation is required. Their ability to provide variable positioning (not just on/off) makes them ideal for chilled water circuits, hot water distribution, and zone control applications. The integration capability with BMS systems allows for intelligent temperature and flow management.
Industrial Process Control
Nelle lavorazioni chimiche, pharmaceutical manufacturing, e cibo & beverage production, electrical ball valves offer the corrosion resistance and sanitary standards required for critical applications. Stainless steel and UPVC motorized ball valves, as discussed in our June 16 article on material selection, provide excellent chemical compatibility and cleanability.
Water Treatment & Distribution
Municipal water treatment plants and commercial building water systems benefit from the high flow capacity and reliable sealing of motorized ball valves. Their full-port design minimizes head loss, reducing pump energy consumption over the system’s lifetime.
Fire Protection Systems
Drawing from our June 10 discussion on 2 way breeching inlet valves and June 12 coverage of brass machino couplings, reliable valve performance in fire protection is non-negotiable. Motorized ball valves can be integrated with fire alarm systems for automatic isolation or activation of water supplies.

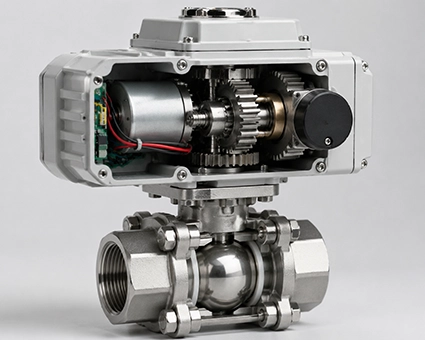

motorized ball valve actuator close-up structure
Ideal Applications for Solenoid Valves
Pneumatic & Hydraulic Control Circuits
Solenoid valves are the go-to choice for controlling compressed air or hydraulic fluid in automation machinery. Their rapid response enables precise timing in pneumatic cylinders, clamping devices, and robotic actuators.
Irrigazione & Sprinkler Systems
In agricultural and landscape irrigation, solenoid valves provide cost-effective on/off control for individual zones. Their low power requirements and simple wiring make them ideal for large-scale distributed systems.
Medical & Analytical Equipment
The compact size and precise timing of solenoid valves make them indispensable in medical devices, laboratory analyzers, and gas chromatography systems where space is at a premium and rapid switching is essential.
pneumatic actuated ball valve in automation pipeline
Cost-Benefit Deep Dive
Initial Investment Comparison
At first glance, solenoid valves typically have a lower unit cost than motorized ball valves, especially in smaller sizes (DN15–DN25). Tuttavia, this apparent cost advantage must be evaluated in the context of total system requirements.
For a 2 way motorized ball valve, the higher initial cost reflects the inclusion of an electric actuator, position feedback mechanisms, and robust ball valve body construction. When you factor in the reduced need for additional control components (since the actuator provides inherent position indication), the total installed cost gap narrows considerably.
Operativo & Lifecycle Costs
Energy Consumption
Standard motorized ball valves consume power continuously while holding a position, whereas most solenoid valves only draw power during the switching transient. Tuttavia, modern electrical ball valves increasingly incorporate holding circuits that reduce power consumption by 80–90% after the initial positioning torque is achieved.
Manutenzione & Downtime
Motorized ball valves generally require less frequent maintenance due to their robust sealing mechanisms and slower operating speeds that reduce mechanical wear. The ball and seat design, when properly specified for the media, can provide years of trouble-free service. Solenoid valves, with their more delicate internal components (springs, plungers, small orifices), are more susceptible to clogging, Indossare, and media contamination issues.
Lifecycle Cost Analysis
Over a 10-year operational period, the total cost of ownership for a motorized ball valve in a critical industrial application often proves lower than that of a solenoid valve, despite the higher upfront investment. The key factors are reduced maintenance labor, fewer unplanned shutdowns, and superior energy efficiency in modulating applications.
Domande frequenti
Q1: What is the difference between motorized ball valve and solenoid valve?
Motorized ball valves handle higher flow and pressure, solenoid valves are for small flow systems.
Q2: Is pneumatic actuated ball valve better than electric?
It depends on speed requirement and air supply availability.
Q3: Where is electrical ball valve used?
HVAC, water treatment, and industrial automation systems.
Q4: Can motorized ball valves replace solenoid valves?
SÌ, in many industrial applications.
Why Choose Our 2 Way Motorized Ball Valves?
A Luoyang Datang Energy Tech Co., Ltd. , we manufacture high-quality 2 way motorized ball valves designed for reliable, long-term performance in demanding industrial applications.
Nostro CTF001 motorized ball valve series features:
✅Three material options – UPVC, ottone, and stainless steel (SS304/SS316) to match your media
✅Multiple voltages – 24V AC/DC, 110V CA, 220V CA
✅IP67 weatherproof – Suitable for indoor and outdoor installation
✅Manual override – Emergency operation without power
✅Visual position indicator – Open/closed status at a glance
✅ISO 5211 mounting – Compatible with standard actuators
✅100% factory tested – Quality assured before shipment
Whether you need a brass motorized ball valve for water and gas, UN stainless steel electric ball valve for corrosive fluids, or a UPVC version for chemical applications, we have the right solution.
