HDPE Pipe Sizes and Dimensions Guide: Diameter, SDR, Pressure Rating and Selection Tips

高密度ポリエチレン (HDPE) パイプ are widely used in water supply, 灌漑, 採掘, industrial pipelines, and municipal infrastructure because of their excellent durability, 耐食性, そして長寿命.

しかし, selecting the correct HDPE pipe size is not only about choosing a diameter. Engineers and project managers need to consider multiple factors, including pipe dimensions, 壁の厚さ, SDR rating, 圧力要件, and installation conditions.

HDPE pipe sizes are available in a wide range of diameters and specifications to meet different application requirements. Choosing the right specification ensures sufficient flow capacity, reliable pressure performance, and long-term operational stability.

This guide explains the key factors affecting HDPE pipe dimensions, 含む:

• Common HDPE pipe diameter sizes
• Outside diameter and inside diameter
• Wall thickness requirements
• SDR ratings and pressure classes
• How to select the right HDPE pipe size for different applications

Whether you are designing a water supply system, agricultural irrigation project, or industrial pipeline, understanding HDPE pipe specifications helps avoid incorrect selection and improves overall system efficiency.

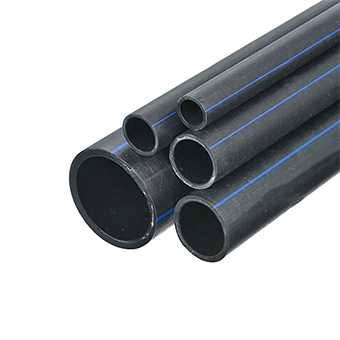

HDPE Pipe Sizes and Dimensions

Understanding HDPE Pipe Sizes and Dimensions

Before diving into specific sizes and charts, it’s essential to understand how HDPE pipes are dimensioned. Unlike steel pipes, which use the Nominal Pipe Size (NPS) system—a label that no longer matches any actual dimension—HDPE pipes areoutside-diameter controlled.

This means the outside diameter (の) is the fixed reference. あ 110 mm HDPE pipe really is 110 mm across the outside, every time, regardless of wall thickness or pressure class. 継手, fusion machines, and tapping tools all register on that OD, which is why getting the OD system right matters more than any other single number.

Key Dimension Parameters

HDPE pipes Pressure vs. Flow

Common HDPE Pipe Diameter Sizes Chart

The following HDPE pipe size chart covers the most commonly used HDPE pipe diameter sizes in global markets. These dimensions generally follow ISO 4427 とEN 12201 標準, though slight variations may exist between manufacturers.

Common HDPE Pipe Sizes

Small-Diameter Pipes (DN20–DN63)：

• Residential plumbing：Household water pipes and courtyard water supply
• Drip and sprinkler irrigation：Precision agriculture is the first choice
• Landscape and gardening：Greenbelt irrigation system

Medium-Diameter Pipes (DN75–DN160) ：

• Municipal water distribution：Urban water supply branch network
• Industrial process water：Factory internal circulating water system
• Sewerage and drainage：Gravity flow and pressure flow drainage systems

Large-Diameter Pipes (DN200+) ：

• Municipal trunk mains：Long-distance water conveyance and raw water transportation
• Industrial pipelines：Chemical and power cooling water systems
• Mining slurry transport：Excellent wear resistance
• Marine outfalls：Corrosion resistant and flexible to adapt to seabed topography

Internal Link：

• For agricultural applications, see our guide on 農業用灌漑用パイプ
• For industrial specifications, visit Industrial HDPE Pipes

HDPE Pipes in Modern Agricultural Irrigation

HDPE Pipe Wall Thickness and SDR Explained

One of the most critical yet misunderstood aspects of HDPE pipe dimensions is the 標準寸法比 (SDR). The SDR defines the relationship between the pipe’s outside diameter and its wall thickness, and it directly determines the pipe’s pressure capability.

What is SDR?

SDR = Outside Diameter (の) / 肉厚

例えば, a pipe with an OD of 110 mm and a wall thickness of 10 mm has an SDR of 11.

The Inverse Relationship ：

Lower SDR value → Thicker wall → Higher pressure capacity → Smaller inner diameter & Lower flow rate

Higher SDR value → Thinner wall → Lower pressure capacity → Larger inner diameter & Higher flow rate

Relationship Between SDR and Wall Thickness

SDR11 vs SDR17 — A Practical Comparison：

Key Insight：

Many buyers mistakenly believe that a larger pipe diameter means higher pressure capacity. しかし, pressure capability is determined by the SDR value (the ratio of wall thickness to outside diameter), rather than the diameter alone. A DN400 SDR33 pipe, for instance, has a much lower pressure rating than a DN90 SDR11 pipe.

Internal Link：

• For a detailed comparison, read our article on SDR11 と SDR17 HDPE パイプ

HDPE Pipe Wall Thickness between SDR11 and SDR17

HDPE Pipe Pressure Rating and PN Classes

HDPE pipe pressure rating is the maximum allowable operating pressure that a pipe can withstand continuously at a specified temperature (usually 20°C). In the HDPE industry, pressure ratings are commonly expressed using PN classes (Pressure Nominal).

HDPE パイプ圧力定格ガイド

Relationship Between PN and SDR：

Factors Affecting Pressure Rating：

1. Operating Temperature
   • Standard pressure ratings are based on 20°C. For every 10°C increase in temperature, the pressure-bearing capacity decreases by approximately 10%.
   • At 30°C, a PN16 pipe effectively becomes a PN14.4 pipe.
   • In high temperature environments (such as tropical areas or industrial hot water), a higher PN level must be selected or temperature correction must be performed.
2. Safety Factor
   • A safety factor of 1.25 に 1.5 is typically used in design.
   • For critical applications (such as gas delivery), a safety factor of 2.0 or higher may be required.
3. Cyclic Loading
   • Systems with frequent pressure fluctuations (such as pump stations with severe water hammer) require additional consideration of fatigue factors.
   • HDPE materials have good fatigue resistance, but a margin should still be allowed when selecting a material.
4. Pipe Material Grade
   • The minimum required strength (夫人) of PE100 is 10 MPa, which is better than PE80’s 8 MPa.
   • Under the same SDR, the PN grade of PE100 pipe is higher than that of PE80.

Internal Link：

• For comprehensive pressure guidance, see our HDPE パイプ圧力定格ガイド

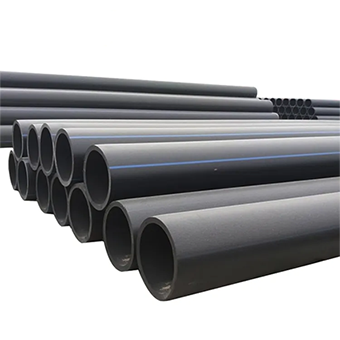

HDPE Pipe Sizes and Dimensions

How to Choose the Right HDPE Pipe Size

This section represents the highest commercial value of the article. Selecting the correct HDPE pipe size is not about picking the cheapest option — it is about matching engineering requirements with material capabilities.

ステップ 1: Determine Required Flow Rate

Flow rate (Q) is the starting point for selection. Based on the design flow rate, the minimum required inner diameter can be deduced.

Basic Formula：

Q = A × v

Where: Q = Flow rate (m³/s) = Cross-sectional area (㎡)= π × (ID/2)² v = Flow velocity (m/s)

Recommended Flow Velocities：

Practical Tip：

Too low a flow velocity (<0.3 m/s) may lead to the deposition of suspended solids; too high a flow velocity (>3 m/s) will exacerbate pipe wall wear and the risk of water hammer. For long-distance water transmission, it is recommended to use a value in the range of 1.0–1.5 m/s to balance energy consumption and pipeline cleanliness.

ステップ 2: Check Operating Pressure

After determining the pipe diameter, it is necessary to check whether the pressure-bearing capacity of the pipe material meets the maximum working pressure of the system.

Pressure Check Formula：

PN_selected ≥ P_max × Safety Factor

Where：

• P_max = Maximum operating pressure including surge / Maximum working pressure (including water hammer)
• Safety Factor = Typically 1.25–1.5 for water

Example：If a water system has a normal pressure of 8 bar and potential water hammer of 3 バー, the maximum pressure is 11 バー. With a safety factor of 1.25, the required PN is 13.75 → Select PN16 (SDR11).

Internal Link：

• For detailed pressure calculations, refer to our HDPE パイプ圧力定格ガイド

3. Consider Installation Conditions

Installation environment significantly impacts pipe selection:

Temperature Considerations：

• High ambient temperature：To reduce pressure resistance, the PN rating needs to be upgraded.
• Low ambient temperature：HDPE becomes brittle, requiring extra care during handling and bending.
• Fluid temperature：When supplying hot water, the derating must be strictly followed according to the temperature correction factor.

Internal Link：

• For installation best practices, see HDPE パイプを地下に設置する方法

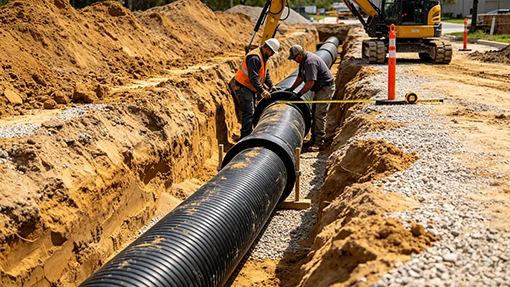

Install HDPE Pipes Underground

ステップ 4: Match Pipe Size With Application

Different application scenarios have different requirements for pipe size and performance.

Application-Based HDPE Pipe Selection

Internal Link：

• For irrigation specifics: HDPE Irrigation Pipes
• For industrial standards: HDPE工業用パイプ

5. Check Fitting and Component Compatibility

Because HDPE is OD-controlled, 継手, バルブ, and fusion equipment must match the same OD system. Always verify:

• Fittings are rated for the same PN class
• Fusion equipment is calibrated for the specific OD and wall thickness
• Transition fittings are available if connecting to other pipe materials

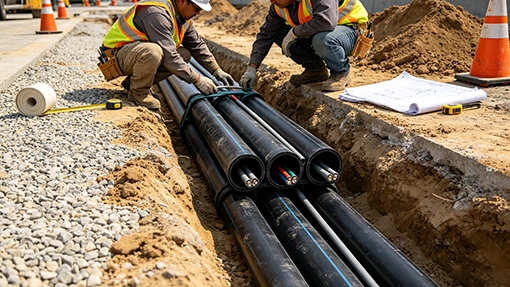

HDPE Pipes in Cable protection

Common HDPE Pipe Size Selection Mistakes

Mistake 1: Ignoring Pressure Rating

The most common error is selecting a pipe based on diameter alone without verifying the pressure rating. あ 110 mm pipe could be SDR17 (PN10) or SDR11 (PN16)—the OD is the same, but the pressure capacity and wall thickness are completely different.

Mistake 2: Choosing Diameter Only by Cost

Oversizing a pipe increases material cost but may reduce pumping costs over the system’s lifetime. Undersizing saves money upfront but leads to higher energy costs and potential flow restrictions. Always consider life-cycle cost, not just initial purchase price.

Mistake 3: Ignoring SDR

SDR determines both pressure rating and internal diameter. Two pipes with the same OD but different SDR values have different IDs and different flow capacities. Always specify both the diameter AND the SDR/PN class.

Mistake 4: Not Considering Future Expansion

Pipeline systems often need to accommodate future growth. Installing a larger diameter or higher pressure class pipe now can save significant costs later. 迷ったときは, plan for at least 10–20 years of expected demand growth.

Mistake 5: Overlooking Temperature Derating

Many engineers specify pipes based on the standard 20°C pressure rating without accounting for higher operating temperatures. In hot climates or systems with elevated temperatures, the effective pressure rating can be significantly lower than the nominal PN class.

Internal Link：

• For a comprehensive checklist, read HDPE パイプの選択間違い: 7 エンジニアが購入前に確認すべき要素

HDPE Pipe Sizes FAQs

1. What are the most common HDPE pipe sizes?

The most commonly used HDPE pipe sizes are 20 mm, 32 mm, 50 mm, 63 mm, 90 mm, 110 mm, 160 mm, 200 mm, 250 mm, 315 mm, そして 400 mm. These cover the majority of water supply, 灌漑, および産業用途.

2. How do I calculate HDPE pipe diameter?

HDPE pipe diameter is specified by its outside diameter (の). The inside diameter (ID) depends on the wall thickness, which is determined by the SDR:

ID = OD – (2 × Wall Thickness)

例えば, ある 110 mm OD pipe with SDR11 has a wall thickness of 10.0 mm, so the ID = 110 – (2 × 10.0) = 90 mm.

3. What is the difference between SDR11 and SDR17 HDPE pipe?

SDR11 has a thicker wall than SDR17 for the same outside diameter. For PE100:

• SDR11 = PN16 (16 バー / 1.6 MPa)—higher pressure capacity, smaller internal bore
• SDR17 = PN10 (10 バー / 1.0 MPa)—lower pressure capacity, larger internal bore

Choose SDR11 for high-pressure applications and SDR17 for standard-pressure applications where maximum flow is needed.

4. Does a larger HDPE pipe diameter mean higher pressure?

いいえ. Pressure rating depends on wall thickness and SDR, not diameter. A small-diameter pipe with a thick wall (low SDR) can have a higher pressure rating than a large-diameter pipe with a thin wall (high SDR). Always check the SDR or PN class, not just the diameter.

5. What does PN mean in HDPE pipes?

PN stands for “呼び圧力” and is measured in bars. It indicates the maximum allowable operating pressure at 20°C. Common PN classes include PN6, PN8, PN10, PN12.5, PN16, PN20, とPN25.

6. HDPEパイプの寿命はどのくらいですか?

HDPE pipes are designed for a service life of50 に 100 年 with minimal maintenance, provided they are properly selected and installed.

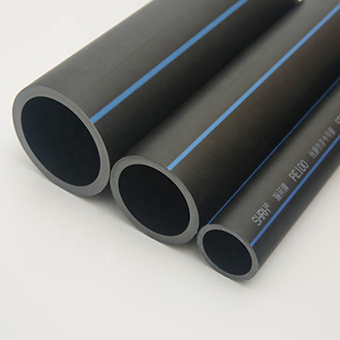

HDPEパイプ

結論

Selecting the right HDPE pipe sizes そして HDPE pipe dimensions is a multi-dimensional engineering decision that goes far beyond simply picking a diameter. A successful selection requires balancing diameter (for flow), 壁の厚さ (for pressure via SDR), 圧力定格 (PN class), そして application-specific requirements such as chemical resistance, abrasion resistance, and installation conditions. By following the four-step method — determining flow rate, checking operating pressure, considering installation conditions, and matching the application — you can avoid common pitfalls and ensure your HDPE piping system delivers reliable performance for its 50+ year design life. Whether your project involves municipal water supply, 農業用灌漑, industrial processing, or mining operations, understanding the relationship between HDPE pipe diameter, SDR, そして 圧力定格 is the key to making informed, cost-effective decisions.
