Brass Spring Loaded Check Valve for Reliable Water Flow – Inline & Full Size Options

Water hammer, backflow, and system contamination are silent threats in any piping system. A single reverse flow can damage pumps, contaminate drinking water, or even cause equipment failure. That’s where a brass spring loaded check valve becomes an essential component – not just a fitting, but a guardian of your water system.

In this guide, we’ll explore why brass spring loaded check valves outperform traditional swing checks, how inline and full size options fit different applications, and what to look for when making your selection.

What Is a Brass Spring Loaded Check Valve?

A Brass Spring Loaded Check Valve is a one-way valve that allows fluid to flow in one direction while preventing reverse flow. Inside the valve, a stainless steel spring pushes the sealing disc against the valve seat. When the fluid pressure exceeds the spring force, the valve opens. Once the pressure drops or reverses, the spring immediately closes the valve.

This automatic operation makes the valve highly effective for protecting pumps, ವಾಟರ್ ಹೀಟರ್ಗಳು, ನೀರಾವರಿ ವ್ಯವಸ್ಥೆಗಳು, and industrial equipment.

Key Components

Components of Brass Spring Loaded Check Valve

Key Features of Brass Spring Loaded Check Valves

Excellent Corrosion Resistance

Brass construction provides excellent resistance to rust, ತುಕ್ಕು, and mineral buildup, making it ideal for water systems and many non-aggressive fluids.

Fast Response to Backflow

The built-in spring ensures immediate valve closure when reverse pressure occurs, minimizing water hammer and system damage.

Compact Inline Design

The inline structure allows easy installation in horizontal or vertical pipelines without requiring significant space.

ದೀರ್ಘ ಸೇವಾ ಜೀವನ

High-quality brass bodies combined with durable sealing components provide years of reliable performance under demanding conditions.

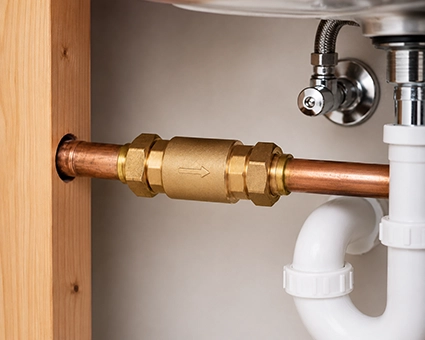

Inline Brass Spring Loaded Check Valve Installed in Home Plumbing

Why Choose a Brass Spring Loaded Check Valve?

Many traditional swing check valves rely on gravity and flow direction to operate. ಆದಾಗ್ಯೂ, spring loaded check valves offer several advantages:

✔ Faster closing action

✔ Better sealing performance

✔ Reduced water hammer effect

✔ Suitable for vertical installation

✔ More reliable in fluctuating pressure systems

For systems requiring dependable backflow prevention, brass spring loaded check valves are often the preferred solution.

Inline vs. Full Size – Which Option Do You Need?

We offer two main configurations to suit different piping requirements:

Inline Brass Check Valve

Compact design, installs directly between two pipe ends (threaded or push-fit)

Ideal for tight spaces, residential water lines, and appliance connections

Available in sizes 1/2″ to 1″

Full Size Brass Check Valve

Full port design – internal diameter matches pipe ID for zero flow restriction

Higher flow capacity, suitable for main water lines, pumps, and commercial systems

Available in sizes 1/2″ to 2″

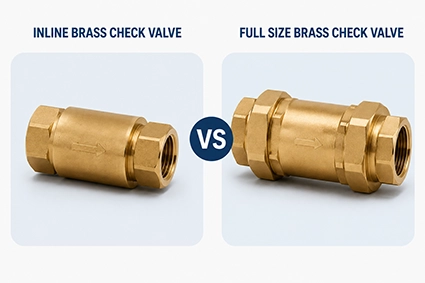

Inline vs Full Size Brass Check Valve Feature Comparison

Key Applications – Where You Need a Brass Spring Loaded Check Valve

1. Pump Discharge Lines

Prevent backflow when pump stops. A spring loaded check valve closes instantly, protecting the pump from reverse rotation and water hammer.

2. Water Heater Installations

Stop hot water from siphoning back into the cold supply line. Maintains temperature stability and prevents cross-contamination.

3. ನೀರಾವರಿ ವ್ಯವಸ್ಥೆಗಳು

Keep water from draining out of sprinkler heads and low-lying zones. Ensures consistent pressure and prevents soil erosion.

4. Industrial Process Lines

Handle water, light oils, or air. ಹಿತ್ತಾಳೆಯ ನಿರ್ಮಾಣವು ತುಕ್ಕು ನಿರೋಧಕವಾಗಿದೆ, while the spring provides reliable sealing even with low differential pressure.

5. Residential Plumbing

Install under sinks, ಶೌಚಾಲಯಗಳ ಹಿಂದೆ, or at the water meter to prevent backflow contamination. Compact inline models fit easily.

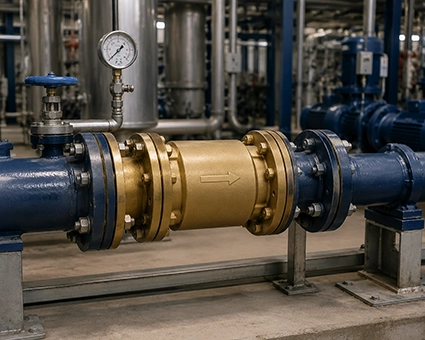

Full Size Brass Spring Loaded Check Valve for Industrial Use

How to Select the Right Brass Spring Loaded Check Valve

Follow these 4 simple steps:

ಹೆಜ್ಜೆ 1: Determine the Connection Type

Threaded ends (NPT, BSP) for standard plumbing

Compression or push-fit for quick installation

ಹೆಜ್ಜೆ 2: Choose Inline or Full Size

Inline for tight spaces and branch lines

Full size for main lines and high flow rates

ಹೆಜ್ಜೆ 3: Select the Correct Size

Match the valve size to your pipe diameter (1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″)

Never downsize – it restricts flow

ಹೆಜ್ಜೆ 4: Check Pressure and Temperature Rating

Standard brass check valves handle up to 16 ಬಾರ್ (232 ಸೈ) and 100°C (212°F)

For higher demands, ask for high-temp or high-pressure versions

Brass Spring Loaded Check Valve Protecting Pump Discharge

Why Choose Our Brass Spring Loaded Check Valves?

✅ Precision-made – CNC machined for perfect sealing surface
✅ Heavy-duty spring – Stainless steel, tested for 100,000+ cycles
✅ Full size options – 1/2″ to 2″ with full port design
✅ Inline options – Compact, easy to install in tight spaces
✅ Leak-tested – 100% factory tested before shipping
✅ Versatile seals – NBR / EPDM / Viton for water, ತೈಲ, ಗಾಳಿ, ಅಥವಾ ಅನಿಲ

Ready to Order? ನಮ್ಮನ್ನು ಸಂಪರ್ಕಿಸಿ!

ಇಮೇಲ್: sales@pipesandfittings.net
ದೂರವಾಣಿ / WhatsApp / WeChat: +86 183 3790 0677

At Luoyang Datang Energy Tech Co.,Ltd, you can get competitive pricing, fast delivery, and free samples for qualified buyers. Tell us your size, connection type, and quantity – we’ll provide a quote within 24 ಗಂಟೆಗಳು.
