Meriv çawa ji bo Pergalên Kontrolkirina Herikîna Pîşesaziyê ji bo Pergalên Kontrolkirina Herikîna Pîşesaziyê valvek topek hîdrolîk a karbonê pola bi tansiyona bilind hilbijêrin

Di pergalên kontrolkirina herikîna pîşesaziyê de, ew valve ball tansiyona bilind carbon pola hîdrolîk yek ji hêmanên herî krîtîk e. Ew wekî dergevanê şilava weya hîdrolîk - kontrolkirina herikînê kar dike, alavên îzolekirinê, û misogerkirina ewlehiya pergalê di bin zextên giran de. Hilbijartina valveya çewt dikare bibe sedema têkçûna pergalê, domdariya nehewce, tamîrên biha, û tewra xetereyên ewlehiyê jî.

Lê digel vebijarkên bêhejmar hene - 2 rê valve ball vs 3 rê valve ball, nirxên zextên cuda, girêdanên dawî, û rêbazên çalakkirinê - hûn çawa ya rast hilbijêrin? Vê rêberê berfireh dê we di her gavê hilbijartina îdeal de rêve bibe valve ball carbon pola ji bo serîlêdana weya hîdrolîk a pîşesaziyê.

Ma hûn li şûna valvek westayî diguhezînin an jî ji bo sazkirinek nû-nû pêkhateyan diyar dikin, rast valveya topê girtin di performansa pergalê de hemî cûdahiyê dike, pêbawerî, û lêçûna giştî ya xwedîtiyê.

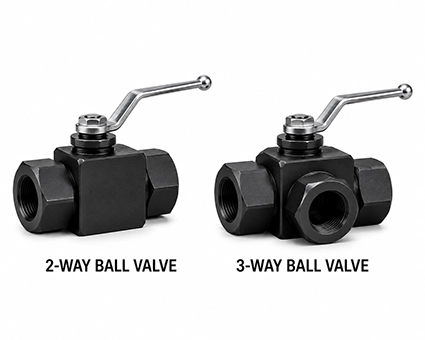

Pola karbonê ya tansiyona bilind 2 rê û 3 rê valve ball hîdrolîk ji bo kontrol herikîna pîşesazî

Valveya Ballê ya Hîdraulîk a Karbon Pola Zêrîn Çi ye?

YEK valveya topê ya tansiyona bilind valvek qutkirina çaryek e ku di pergalên lûleyê de ku zext lê tê bikar anîn, germî, lihevhatina medyayê, û torque xebitandinê divê ji serîlêdanên tansiyona nizm ên standard bi baldarî bêtir were vekolîn. Ew gogek gewherî ya ku di navendê de boriyek heye bikar tîne - dema ku bor bi boriyê re hevûdu dibe, herikîn tê de derbas dibe; dema ku top dizivire 90 derece, aliyê hişk rê li ber herikînê digire.

Karbon pola yek ji wan materyalên herî gelemperî ji bo valvesên topên hîdrolîk ên tansiyona bilind e. Valvesên topên pola karbonê yên qalîteya bilind dikarin rêjeyên zextê bi rê ve bibin heta 41 MPa (6,000 psi) , li gor mezinbûnê. Pola karbonê bi gelemperî ji pola zengarnegir bihêztir û hişktir tê hesibandin, Bi taybetî dema ku ew tê ser pergalên tansiyona bilind. Li hember têkçûna westandinê û şikestîbûnê bêtir berxwedêr e, ku tê vê wateyê ku ew dikare şert û mercên fizîkî yên dijwar bêyî şikestin an deformasyonê ragire.

Dema hilbijartina a valve ball carbon pola, Pêdivî ye ku meriv celebê şilavê piştrast bike da ku pê ewle bibe ku ew ê bi valve re reaksiyonek neyînî nebe. Valvesên pola karbonê bi gelemperî dikarin germahiyên li dora 99 °C bi rê ve bibin (210°F). Pêdivî ye ku germahiya serîlêdanê were şopandin da ku pê ewle bibe ku valve dê wekî ku tê hêvî kirin pêk bîne.

Guide Hilbijartina Gav-bi-gav

Hilbijartina rastê valve ball tansiyona bilind carbon pola hîdrolîk requires careful evaluation of multiple factors. Follow these steps to make an informed decision.

Gav 1: Evaluate Pressure and Temperature Ratings

Pressure rating is the most important factor when selecting any valveya topê ya tansiyona bilind. Choose a valve that’s rated to handle the maximum pressure and flow rate of your system. Underspecifying here can lead to premature wear or even dangerous system failure.

Key considerations:

Understand WOG vs. PTR: A valve might be stamped “800 WOG” (Av, Rûn, Gas at 800 PSI), but this is only its cold working pressure rating.

Consult the PTR chart: As temperature increases, the maximum allowable pressure decreases. You must consult the manufacturer’s Pressure-Temperature Rating (PTR) chart to find the safe working pressure for your specific operating temperature. A Class 600 ball valve rated for 1,480 psi at 100°F might only handle 1,200 psi at 400°F because heat causes material expansion and slight weakening of the valve body and seat materials.

Never assume the WOG rating applies at high temperatures.

Size matters: Pressure ratings vary by size — a 7000 PSI rating for 1/4″ to 3/8″ may drop to 4600 PSI for 3/4″ û li jor.

Pressure temperature rating chart for carbon steel ball valve

Gav 2: Choose the Right Valve Configuration – 2 Way vs 3 Rê

2-way ball valves control flow in a single pipeline with simple on/off functionality. They are the most common type of ball valve and the lowest-cost option. They are ideal for:

• Directional control systems

• Equipment isolation

• Basic flow control applications

3-way ball valves manage flow between three separate ports, allowing for diversion or mixing of fluids. They feature either an L-port or T-port bore design. They are ideal for:

• Hydraulic bypass systems

• Flow diversion applications

• Mixing operations

• Multi-circuit hydraulic systems

Selection tip: Due to their simpler design, 2-way ball valves are often rated for higher pressures than their 3-way counterparts. If your application requires both high pressure and multi-port functionality, ensure the 3-way valve’s pressure rating meets your system requirements.

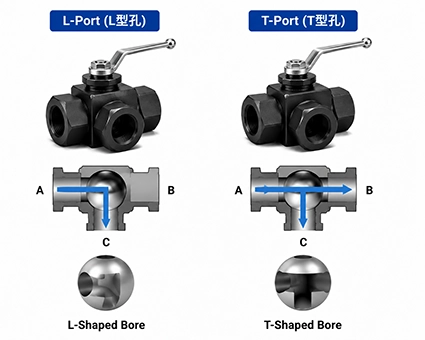

2 way vs 3 way ball valve flow pattern L port and T port

Gav 3: Select the Right Valve Construction

Ball valves come in three primary constructions:

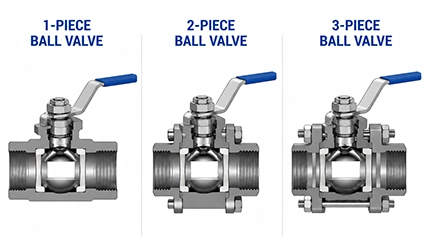

One piece two piece and three piece ball valve construction comparison

Gav 4: Choose the Right End Connections

The end connections must be compatible with your existing piping system to guarantee a seamless installation.

NPT SAE BSPP and flanged end connections for hydraulic ball valve

Gav 5: Determine Actuation Method

The method of actuation depends on how you intend to operate the valve.

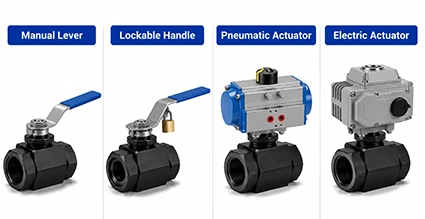

Manual lever lockable handle pneumatic actuator electric actuator for ball valve

Gav 6: Evaluate Seal Compatibility

Seals must be compatible with your hydraulic fluid and operating temperature.

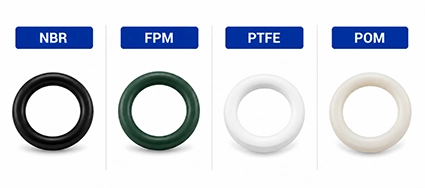

NBR FPM PTFE POM ball valve seal material comparison

Why Choose Carbon Steel for High Pressure Hydraulic Ball Valves?

Carbon steel offers several distinct advantages for high-pressure hydraulic applications:

1. Superior Strength and Toughness

Carbon steel is generally considered to be stronger and tougher than stainless steel, Bi taybetî dema ku ew tê ser pergalên tansiyona bilind. Li hember têkçûna westandinê û şikestîbûnê bêtir berxwedêr e, making it an excellent choice for applications that involve extreme pressure and stress cycling.

2. High Pressure Rating

High-quality carbon steel ball valves can handle pressure ratings of up to 41 MPa (6,000 psi), li gor mezinbûnê. This makes them ideal for demanding hydraulic systems, power generation, and process industries.

3. Cost-Effectiveness

Compared to stainless steel or alloy valves, carbon steel provides an excellent balance of performance and cost for non-corrosive applications. Carbon steel ball valves offer a superior cost-to-performance ratio for general industrial hydraulics.

4. Wide Availability

Carbon steel ball valves are widely available and standardized, making them easy to source and replace.

Important limitation: Carbon steel is susceptible to corrosion when exposed to water, şilî, or corrosive chemicals. Its use is primarily reserved for non-corrosive media like oil, xaz, and air, or in systems where corrosion inhibitors are used. Protective coatings (wek mînak., painting or galvanizing) are often required to protect against rust.

Carbon steel vs stainless steel ball valve performance comparison

Applications of High Pressure Carbon Steel Ball Valves

High pressure carbon steel hydraulic ball valves are essential components across numerous industries:

1. Oil and Gas Industry

These valves regulate the flow of crude oil and natural gas throughout the extraction, refining, and distribution stages.

2. Hydraulic Systems

High-pressure ball valves control fluid flow in high-pressure hydraulic applications, ensuring precise regulation and reliable performance. They are essential in construction equipment, manufacturing machinery, and mobile hydraulics.

3. Chemical Processing

In chemical processing, these valves manage the flow of hazardous chemicals, ensuring safe and efficient operations.

4. Power Generation

High-pressure ball valves control steam and water flow in boilers and turbines for efficient and safe power generation.

5. Industrial Machinery

Carbon steel ball valves are used in injection molding machines, presses, machine tools, and other manufacturing equipment that depend on hydraulic power.

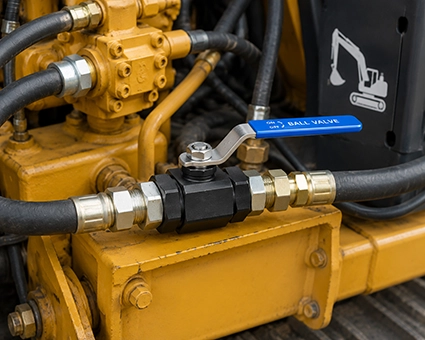

Carbon steel hydraulic ball valve installed on construction machinery excavator

Installation and Maintenance Tips

Ball valves are only designed for fully open or fully closed positions. They are not designed to throttle the flow of a fluid. Using a ball valve for throttling will result in premature failure of components and cause the system to leak or render it unable to be isolated.

Key maintenance practices:

• Regular visual inspection for leaks and damage

• Check for smooth operation of the handle or actuator

• Ensure seals remain intact and functional

• In corrosive environments, inspect protective coatings regularly

• For lockable handle valves, ensure the locking mechanism functions properly

Technician inspecting high pressure ball valve during maintenance

Why Choose Our High Pressure Carbon Steel Ball Valves?

At Luoyang Datang Energy Tech Co., Ltd. , we understand the critical role that high pressure ball valves play in your hydraulic systems. Yên me high pressure carbon steel 2/3 way shut-off hydraulic ball valves are engineered to deliver:

✅Superior Strength – Premium carbon steel construction with corrosion-resistant plating

✅High Pressure Capability – Rated up to 7,000+ PSI for demanding applications

✅Versatile Configurations – Available in 2-way and 3-way (L-port and T-port) designs

✅Multiple Connection Options – NPT, SAE, BSPP, and flanged ends to suit your system

✅Reliable Sealing – High-quality seals compatible with a wide range of hydraulic fluids

✅100% Tested – Every valve is pressure-tested in both open and closed positions before shipping

✅ISO 9001 Certified – Manufactured under strict quality control

✅Blow-Out Proof Stem – Prevents stem ejection under extreme pressure

Paqij bûn

Ready to upgrade your industrial flow control system with high-quality high pressure carbon steel ball valves? Têkelî Luoyang Datang Energy Tech Co.,Ltd today for expert advice, product specifications, and competitive pricing.
