Produkto apžvalga

The Gate Valve is a heavy-duty industrial isolation valve designed for reliable on/off service in water, aliejus, dujų, and steam pipeline systems. Manufactured from high-strength ductile iron with renewable metal seat rings (13Cr/Stellite hardfaced), this valve provides excellent corrosion resistance, wear resistance, and long service life in demanding environments. Featuring an OS&Y (Outside Screw and Yoke) rising stem design that provides clear visual position indication — the stem rises when the valve opens and lowers when it closes — this valve enables quick visual verification of valve status. The flanged ends conform to BS 5163, NUO 3202 F4/F5, and AWWA standards, ensuring compatibility with international piping systems. Designed and manufactured in accordance with API 600 — the American Petroleum Institute standard for heavy-duty bolted bonnet steel gate valves in petroleum refinery and related applications where corrosion, erosion, and severe service conditions require full port openings, heavy wall sections, and large stem diameters— available in sizes from DN80 to DN400 (3″ to 16″) with Class 150 pressure rating (PN10/PN16/PN25), this valve is suitable for water treatment, power generation, fire protection systems, and industrial process lines.

Stainless Steel Flanged Gate Valve

Techninės specifikacijos

Stainless Steel Flanged Gate Valve

Pagrindinės savybės

1. API 600 Compliant – Heavy-Duty Industrial Standard
2. OS&Y Rising Stem – Visual Position Indication
3. Renewable Metal Seat Rings – Long Service Life
4. Ductile Iron Body – Superior Strength & Lengvas
5. Flanged Connection – Multiple Standards
6. Fusion-Bonded Epoxy Coating – Superior Corrosion Protection

Programos

1. Vandens valymas & Desalination
2. Aliejus & Dujotiekiai
3. Power Generation
4. Maistas & Beverage
5. Industrial Process Lines
6. Fire Protection Systems

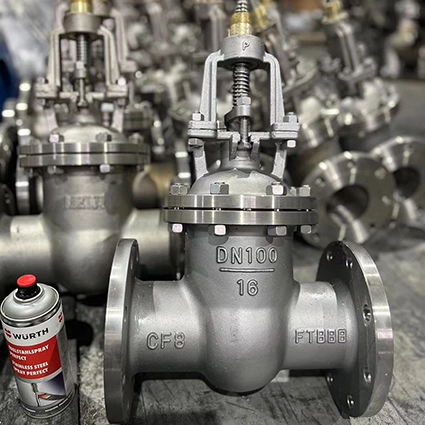

Stainless Steel Flanged Gate Valve

Pakavimas ir siuntimas

Packing depends on the product type and quantity. Each valve is packed in a bubble plastic bag and then placed in a carton box or wooden crate with proper protection for flange faces. Shipment can be arranged by sea, geležinkelis, oro, or as per customer’s request.

Įmonės profilis

LUOYANG DATANG ENERGY TECH CO., LTD is a professional industrial valve supplier, dedicated to providing reliable flow control solutions for fire protection, ŠVOK, vandens apdorojimas, and industrial piping systems worldwide. All products are manufactured to international standards with UL/FM, CE, ir ISO 9001 certifications. With over 10 years of experience, a modern facility of 80,000 m², ir 200+ professional employees, we serve customers in 10+ countries with quality products, competitive pricing, and reliable delivery.

Mokėjimo sąlygos

T/T, L/C matant, Western Union, PayPal, Apple Pay, Google Pay, Credit Card, ir tt.

Stainless Steel Flanged Gate Valve

DUK

Q1: What are the differences between CF3, CF3M, CF8, and CF8M stainless steels?

A: CF8 corresponds to SS304, CF8M to SS316, CF3 to SS304L, and CF3M to SS316L. CF3 and CF3M feature lower carbon content, offering superior resistance to intergranular corrosion, making them suitable for welding applications and corrosive environments.

Q2: What are the advantages of an F316 valve seat with Stellite hard-facing?

A: Stellite is a cobalt-based alloy known for excellent wear, erosion, and galling resistance, particularly at high temperatures. Hard-facing the F316 base material provides an optimal combination of corrosion and wear resistance, ensuring a long service life under demanding operating conditions.

Q3: Why choose gear operation instead of a handwheel?

A: Gear operation utilizes mechanical advantage to make operating large-bore valves (DN200 and above) easier and less strenuous. The self-locking mechanism ensures valve position stability without the need for external locking devices. Gear operation is ideal for applications requiring frequent operation or where space is limited.

4 klausimas: What are the maximum working pressure and temperature ratings for this gate valve?

A: Standard configurations are PN10/PN16/PN25 with a temperature range of -20°C to +150°C. Klasė 150 and higher temperature ratings are available upon request. Please consult our sales team regarding specific requirements.

Q5: Can a gate valve be used for throttling?

A: Nr. Gate valves are designed solely for full-open or full-closed service. Using them for throttling can cause erosion of the seat and disc, leading to premature failure. Globe valves or control valves should be used for throttling applications.
