Choosing the Right HDPE Pipe: DWC Pipe, Corrugated Pipe, Culvert Pipe and Electrical Conduit Explained

When planning an underground infrastructure project—whether it’s municipal stormwater drainage, highway culverts, or power cable protection—you face a critical decision: which pipe material should you choose?

Traditionally, engineers would pick between concrete, PVC, or metal pipes. But today, more and more specifiers are turning to one answer: HDPE (Polietileno mextha ar densidad) .

The HDPE pipe family is broad. From DWC (Double Wall Corrugated) pipes to HDPE culverts, from corrugated drainage pipes to electrical conduits—they all share the excellent material properties of HDPE, yet their structural designs and application scenarios are vastly different. Choosing the wrong type can waste your budget and, worse, create long‑term hidden risks for your project.

This article breaks down the four most common HDPE pipe products, helping you make the right choice based on your project needs.

HDPE pipe family comparison DWC corrugated culvert electrical conduit

1. DWC Pipe – The Dual‑Purpose Performer for Drainage & Cable Protection

What Is DWC Pipe?

DWC stands forDouble Wall Corrugated. Its structure is ingenious: the outer wall has a ring‑shaped corrugated profile, while the inner wall remains smooth and flat. This “corrugated outside + smooth inside” dual‑layer construction gives DWC pipes two seemingly contradictory but coexisting abilities—rigidity and flexibility.

The outer corrugations provide excellent ring stiffness to withstand soil and traffic loads, while the inherent toughness of HDPE allows the pipe to absorb shocks and recover from ground settlement or seismic events. The smooth inner surface ensures low friction for fluid flow or cable pulling.

Key Applications

Why Choose DWC?

• High ring stiffness – withstands heavy soil and traffic loads, ideal for deep burial and under‑road installation.
• Corrosion‑resistant – resists chemicals in soil and wastewater; service life exceeds decades.
• Be̲xu ligero & easy to install – 80%–95% lighter than RCC pipes, drastically cutting transport and installation costs.
• Watertight joints – fitted with EPDM gaskets for zero leakage.
• Cost‑effective – low long‑term cost, minimal maintenance.

DWC pipes are manufactured to IS 16098 (Part 2): 2013, with stiffness classes SN4 and SN8, and diameters from 100mm to 600mm.

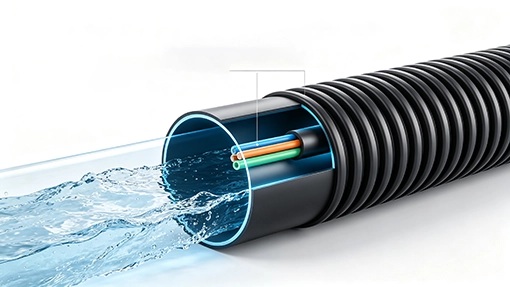

DWC Pipe for Drainage & Cable Protection

2. HDPE Corrugated Pipe – The Cost‑Performance Champion for Drainage Systems

What Is HDPE Corrugated Pipe?

HDPE corrugated pipe shares the corrugated‑wall family with DWC, but with subtle differences. Its core design philosophy is: maximum structural strength with minimum material usage.

The annular corrugations on the outer wall provide high ring stiffness while significantly reducing raw material consumption. The inner wall is smooth, with a Manning coefficient as low as 0.009–0.012, offering minimal flow resistance. This makes corrugated pipe exceptionally effective in gravity flow drainage systems.

Key Applications

• Municipal stormwater and sewage
• Residential community underground drainage
• Highway and road drainage
• Agricultural irrigation and drainage

Why Choose HDPE Corrugated Pipe?

• Be̲xu ligero – only 5%–30% the weight of concrete pipes; easy to transport and handle.
• hñets'i'i costo instalación – total installed cost can be 12%–38% lower than concrete alternatives.
• High flow capacity – smooth inner wall ensures efficient drainage and reduces clogging.
• Chemical resistance – resistant to acids, o, and aggressive soils.
• Long service life – design life of 50+ ya je̲ya.
• Environmentally sustainable – HDPE is recyclable, with low carbon footprint over its full life cycle.

Quick Comparison Table

Studies show that over a full life‑cycle assessment for stormwater systems, corrugated HDPE pipe has the lowest global warming potential.

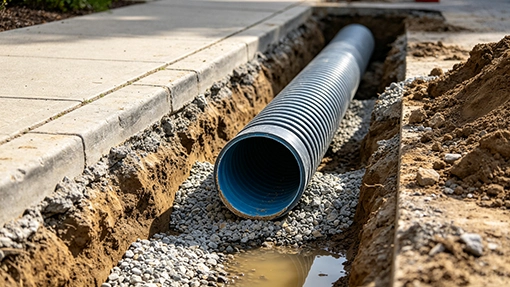

HDPE Corrugated Pipe for Drainage Systems

3. HDPE Culvert Pipe – The “Hidden Skeleton” for Roads and Waterworks

What Is HDPE Culvert Pipe?

A culvert is a pipe installed beneath roads or railways to convey water from one side to the other. It typically has a short length but must bear enormous overburden loads—including embankment fill and heavy traffic.

HDPE culvert pipe is specifically engineered for this demanding duty. It must be strong enough to support the road above while being flexible enough to accommodate minor settlement of the foundation.

Key Applications

• Cross‑drainage under highways and interstates
• Drainage channels beneath railway tracks
• Farm Riego and flood relief
• Drainage under access roads in mining and forestry

Why Choose HDPE Culvert Pipe?

• High load‑bearing capacity – properly installed HDPE corrugated culverts can withstand AASHTO HS‑25 loading; for diameters up to 1200mm, only 0.3m of cover is needed.
• Hydraulic efficiency – the smooth inner wall provides superior flow efficiency, often allowing a one‑size‑smaller diameter compared to corrugated‑metal culverts—meaning narrower trenches, less excavation, and less backfill.
• hei instalación – only about 5% the weight of concrete pipe; longer lengths (up to 6m or more) reduce joints and speed up construction.
• Excellent durability – resistant to corrosion, abrasion, and freeze‑thaw cycles.
• Widely approved – HDPE culverts are approved by most U.S. state DOTs and meet AASHTO M252 or M294.

Installation Tip
The performance of HDPE culverts depends heavily on installation quality. Studies highlight that improper bedding preparation, unsuitable backfill materials, and insufficient cover are the main causes of excessive deflection and cracking. Correct installation is the key to ensuring long‑term performance.

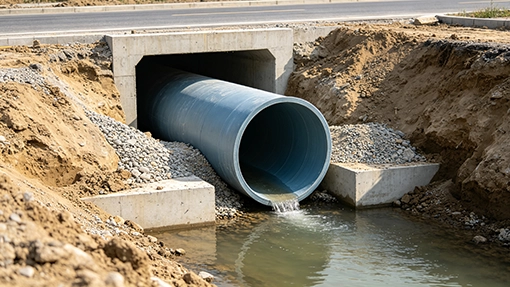

HDPE Culvert Pipe for Roads and Waterworks

4. HDPE Electrical Conduit – The “Safety Guardian” for Underground Cables

What Is HDPE Electrical Conduit?

HDPE electrical conduit is a pipe specifically designed to protect underground power cables and fiber‑optic lines. With the rapid expansion of urban power grids, 5G networks, and smart transportation, HDPE conduit is becoming the preferred choice for buried cable protection.

HDPE conduit can be either solid‑wall or corrugated‑wall, supplied in long coils (reducing joints) or straight lengths, and can be installed by trenchless methods such as Horizontal Directional Drilling (HDD).

Key Applications

• Underground power distribution (up to 69kV)
• Fiber optic and broadband cable protection
• Highway lighting and traffic control systems
• Telecom and data centre duct systems
• Airport lighting and control systems

Why Choose HDPE Electrical Conduit?

• Excellent electrical insulation – ensures safe power transmission.
• Corrosion‑resistant and chemically inert – will not corrode in any soil condition.
• High compressive and impact strength – protects cables from mechanical damage.
• flexibilidad – conforms to terrain bends, reducing the need for elbows.
• Smooth inner wall – low friction for cable pulling, saving installation time.
• Long coil lengths – fewer joints reduce leak risks and installation labour.
• Trenchless installation capability – through HDD or ploughing, minimising ground disruption.

Applicable Standards
HDPE conduit must meet a range of industry standards, including:

• UL 651 / UL 651B (Conductos eléctricos)
• ASTM D3035 / F2160 (data, telecom and fibre applications)
• AASHTO R 63‑13 (power cable protection for highway and airport lighting)
• NEMA TC 7 (smooth‑wall, coilable polyethylene conduit)
• CSA C22.2 No. 327‑18 (Canadian Electrical Code)

HDPE electrical conduit UL 651 ASTM D3035 cable protection

5. HDPE Pipe Price – How to Read Quotes and Avoid Overpaying

Beyond product selection, price is always one of the most sensitive factors in project decision‑making. HDPE pipe prices are not a fixed number—they are determined by multiple variables.

What Drives HDPE Pipe Price?

1. Raw material costo (60%–75% of total)

PE100 pipe‑grade resin is a petrochemical commodity; its price tracks crude oil, naphtha, and ethylene trends. As of early 2026, pipe‑grade HDPE resin prices are roughly in the$950–1,200/tonne range, fluctuating monthly. In the first half of 2026, prices experienced a rise‑then‑fall pattern due to Middle East geopolitical tensions.

2. SDR value (wall thickness)

SDR is the ratio of outside diameter to wall thickness.A lower SDR means a thicker wall, more material, and a higher price. Moving from SDR17 to SDR11 increases polymer consumption by about 50% for the same diameter. Always check the SDR when comparing quotes.

3. Pipe diameter

Pipe weight is roughly proportional to diameter × wall thickness. For large diameters, prices risealmost quadratically with diameter.

4. Material quality: virgin vs. regrind

Pressure pipesmust use virgin PE100. Regrind cannot guarantee long‑term strength and cannot ensure a 50‑year design life. An unusually cheap quote often hides the use of regrind.

5. Additives and certifications

Drinking‑water‑grade carbon black, UV stabilisers, co‑extruded identification stripes, etc., all add cost. PE100‑RC (crack‑resistant) resin costs 10%–20% more than standard PE100, suitable for trenchless installations and rocky backfill.

Reference Market Prices (China, 2026)

hñeti: prices vary by region and order volume; always request a current quotation.

Price Comparison Tip
When you receive two quotes, do not look only at the unit price. Please verify:

• SDR value (is the wall thickness the same?)
• Weight per metre (is the material quantity sufficient?)
• Material type (virgin or regrind?)
• Certification standards (do they meet project specifications?)

As one industry expert puts it: “A ‘cheaper’ pipe is often just thinner or lighter.”

HDPE pipe price 2026 PE100 resin cost guide

6. How to Make the Right Choice – A Decision Matrix

To help you quickly decide which HDPE pipe product fits your project, here is a summary decision table:

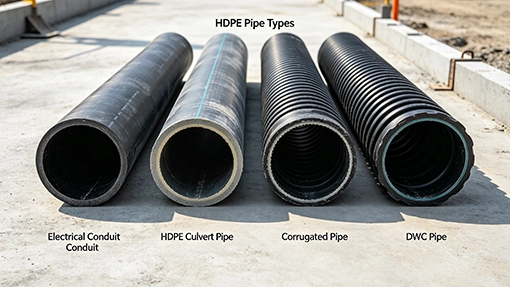

HDPE Pipe Types

Make the Right Choice for Your Project

From DWC double‑wall corrugated pipes to HDPE culverts, from corrugated drainage pipes to electrical conduits—the HDPE pipe family is playing an increasingly vital role in global infrastructure construction, thanks to itslight weight, high strength, Resistencia ar corrosión, ne xi maki nzaki útil.

The numbers speak for themselves: the global HDPE pipe market recorded$24.3 billion** in sales in 2025 and is projected to reach **$31.05 billion by 2032. This isn’t just statistical growth—it’s a clear industry‑wide consensus that HDPE is the “better solution” for underground piping.

But here’s the truth: the “best” pipe doesn’t exist—only the right pipa for your specific project. Choosing between DWC, corrugated, culvert, or conduit isn’t a one‑size‑fits‑all decision. It depends on your load conditions, soil type, flow requirements, installation method, and budget.
