HDPE Pipe Pressure Rating Guide: How to Choose PN10, PN12.5, and PN16 Pipes

HDPE pipes are widely used in water supply systems, ਖੇਤੀਬਾੜੀ ਸਿੰਚਾਈ, municipal engineering, mining operations, and industrial pipeline networks due to their excellent corrosion resistance, ਲਚਕਤਾ, ਅਤੇ ਲੰਬੀ ਸੇਵਾ ਦੀ ਜ਼ਿੰਦਗੀ.

ਹਾਲਾਂਕਿ, selecting the correct HDPE pipe pressure rating is one of the most important factors in ensuring pipeline safety and long-term performance. Different projects operate under different pressure conditions, and choosing an unsuitable pressure class may lead to reduced service life, increased maintenance costs, or even pipeline failure.

HDPE ਪਾਈਪ are commonly classified by PN pressure ratings, ਜਿਵੇ ਕੀ PN10, PN12.5, ਅਤੇ PN16, which represent different maximum working pressure capabilities under standard conditions.

Understanding the differences between these pressure classes helps engineers, ਠੇਕੇਦਾਰ, and buyers select the most suitable HDPE pipe according to system requirements, installation conditions, and application environments.

This guide explains what HDPE pipe pressure rating means, the differences between PN10, PN12.5, and PN16 HDPE pipes, and how to choose the right pressure class for water supply, ਸਿੰਚਾਈ, ਅਤੇ ਉਦਯੋਗਿਕ ਐਪਲੀਕੇਸ਼ਨ.

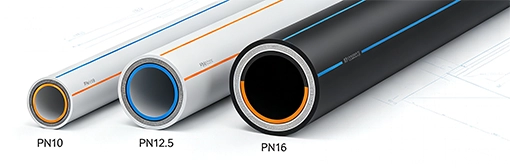

PN10 PN12.5 and PN16 pipes

What Does HDPE Pipe Pressure Rating Mean?

ਦ HDPE pipe pressure rating (also referred to as HDPE pipe pressure class) defines the maximum continuous operating pressure a pipe can safely withstand under standard conditions.

Key Terms Explained：

PN stands for “ਨਾਮਾਤਰ ਦਬਾਅ” and is measured in bar. ਉਦਾਹਰਣ ਲਈ, a PN10 HDPE pipe is rated for a maximum working pressure of 10 20 ਡਿਗਰੀ ਸੈਲਸੀਅਸ 'ਤੇ ਬਾਰ. It is important to note that PN is not the material strength itself, but rather the allowable working pressure rating under standard conditions.

Important: As temperature increases, the pressure capacity of HDPE pipes decreases. Always factor in your operating environment when selecting a pressure class.

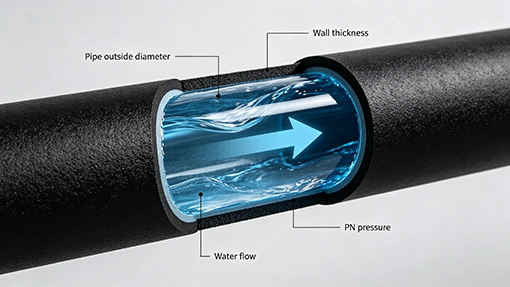

HDPE pipe structure showing wall thickness and internal pressure

HDPE Pipe Pressure Rating Chart: PN10, PN12.5, PN16 Comparison

Below is a comprehensive comparison of the three most common HDPE pipe pressure ratings used in modern infrastructure projects.

ਇਹ HDPE pipe pressure rating chart serves as a quick reference for engineers and procurement teams. Each pressure class is designed for specific operational demands, and selecting the wrong one can lead to system failures or unnecessary costs.

PN10 HDPE Pipe: Features and Applications

PN10 HDPE pipe represents the entry-level pressure class in most HDPE product lines. It is ideal for systems where operating pressures are moderate and cost efficiency is a priority.

ਮੁੱਖ ਵਿਸ਼ੇਸ਼ਤਾਵਾਂ

• Lightweight construction — Easier to transport and install
• Cost-effective — Lower material cost due to thinner walls
• Corrosion resistant — Excellent chemical stability for long service life

Common Applications

PN10 pipes are typically manufactured with an SDR17 ratio, meaning the pipe diameter is 17 times the wall thickness. This makes them flexible and easy to handle, but unsuitable for high-pressure environments.

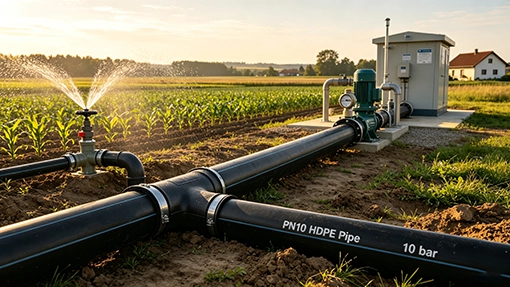

PN10 HDPE pipe used for agricultural irrigation and water supply systems

PN12.5 HDPE Pipe: Balanced Pressure Performance

PN12.5 HDPE pipe occupies the middle ground between economy and performance. It is the most commonly specified pressure class for municipal water distribution systems.

Why Choose PN12.5?

This pressure class is particularly well-suited for:

• Municipal water supply networks
• Residential water distribution
• Medium-pressure industrial systems
• Fire protection pipelines

ਦ PN12.5 HDPE pipe offers an optimal balance: it provides higher pressure resistance than PN10 while remaining more economical and easier to install than PN16. For many urban infrastructure projects, this is the default specification.

PN12.5 HDPE Pipe for Fire protection pipelines

PN16 HDPE Pipe: High Pressure Applications

When your system demands maximum reliability under high pressure, PN16 HDPE pipe is the professional choice. With a maximum working pressure of 16 ਪੱਟੀ, this pressure class is engineered for the most demanding conditions.

Key advantages:

• Excellent mechanical strength: Handles more challenging operating conditions.
• Higher pressure capability: Suitable for demanding pipeline environments.
• Enhanced safety margin: Provides better resistance against pressure fluctuations.
• Long-term reliability: Suitable for critical infrastructure projects.

Application Scenarios

If your project involves high pressure HDPE pipe ਲੋੜਾਂ, PN16 should be your starting point. Always consult with your pipe supplier to verify that PN16 meets your specific system pressure calculations.

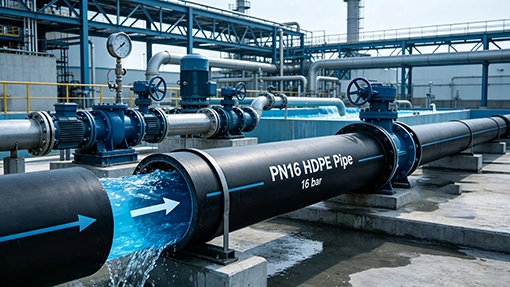

PN16 HDPE Pipe for Industrial and High Pressure Applications

PN10 vs PN12.5 vs PN16: Which HDPE Pipe Should You Choose?

This is the most commercially valuable question in HDPE pipe selection. The answer depends entirely on your project conditions.

Quick Decision Table

Decision Framework

1. Calculate your maximum operating pressure — Include static head, pump pressure, and potential surge.
2. Add a safety margin — Industry standard recommends at least 1.5x the operating pressure.
3. Match to the nearest PN class — Round up, never down.
4. Verify temperature conditions — If operating above 20°C, you may need to select one class higher.

Factors Affecting HDPE Pipe Pressure Selection

A comprehensive HDPE pipe selection guide must account for variables beyond the nominal pressure rating. Here are the five critical factors:

1. Operating Pressure

The actual working pressure of your system is the starting point. Measure or calculate both normal operating pressure and peak pressure conditions.

2. Water Hammer Effect

Pressure surges caused by rapid valve closure or pump startup can momentarily exceed normal operating pressure by 2–3x. Always include water hammer calculations in your design.

3. Pipe Temperature

HDPE is a thermoplastic material. Its pressure capacity decreases as temperature rises:

4. Pipeline Length

Long-distance water transmission experiences greater friction losses and requires higher inlet pressures. This often necessitates a higher HDPE pipe pressure class at the pump station.

5. Installation Conditions

Buried pipes must withstand soil loads, traffic loads, and potential ground movement. Deeper burial and heavier surface loads may require higher pressure classes or special bedding.

HDPE Pressure Rating Selection Checklist

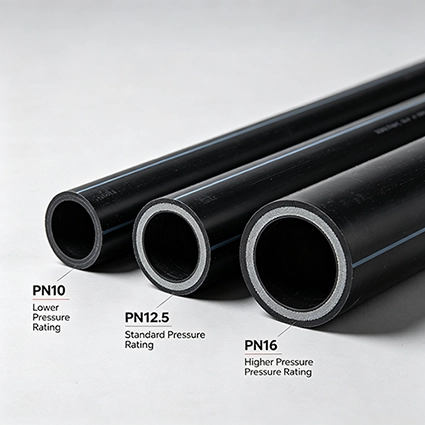

PN10 vs PN12.5 vs PN16

Relationship Between PN Rating and SDR Rating

Understanding the relationship between PN and SDR is essential for proper pipe specification. While PN defines pressure capability, SDR defines the physical structure of the pipe.

Key Insight

PN and SDR are inversely related in practice. A lower SDR number means a thicker wall, which enables a higher PN rating:

• SDR11 → PN16 (thick wall, ਉੱਚ ਦਬਾਅ)
• SDR13.6 → PN12.5 (medium wall, medium pressure )
• SDR17 → PN10 (thinner wall, lower pressure)

For a deeper understanding of dimension ratios, refer to our guide on SDR11 vs SDR17 HDPE Pipe. ਸਮਝ HDPE pipe SDR rating helps you verify that your pipe’s physical dimensions match your pressure requirements.

Common Mistakes When Selecting HDPE Pipe Pressure Rating

Even experienced engineers can make costly errors during pipe selection. Here are the four most common mistakes to avoid:

Mistake 1: Choosing Based Only on Price

PN10 pipes are cheaper, but using them in a high-pressure system leads to premature failure and catastrophic repair costs. Always prioritize technical suitability over initial cost savings.

Mistake 2: Ignoring Pressure Fluctuations

Static pressure calculations alone are insufficient. Water hammer, pump cycling, and valve operations create dynamic pressure spikes that must be accommodated.

Mistake 3: Selecting Wrong SDR/PN Combination

Not all manufacturers use identical SDR values for the same PN rating. Always verify the actual SDR value and ensure it aligns with your project’s pressure requirements.

Mistake 4: Not Considering Future System Expansion

Designing only for today’s needs may require complete pipeline replacement tomorrow. If future expansion will increase pressure demands, select a higher PN class now.

For more details, read our article on HDPE Pipe Selection Mistakes.

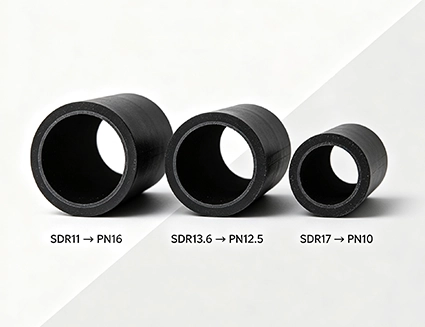

Relationship between PN rating and SDR rating of HDPE pipes

Applications of Different HDPE Pressure Classes

The right HDPE pressure pipe for water supply depends on the specific demands of each application scenario.

ਅਕਸਰ ਪੁੱਛੇ ਜਾਂਦੇ ਸਵਾਲ

Q1: What does PN16 mean in HDPE pipes?

PN16 HDPE pipe means the pipe has a nominal pressure rating of 16 ਪੱਟੀ. At a standard temperature of 20°C, it can safely withstand a maximum continuous working pressure of 16 ਪੱਟੀ (ਲਗਭਗ 232 psi).

Q2: Is PN16 better than PN10 HDPE pipe?

Not always. PN16 is not inherently “better” — it is simply designed for higher pressure systems. For a low-pressure irrigation system, PN16 would be over-engineered and unnecessarily expensive. The best pipe is the one that matches your system’s actual pressure requirements.

Q3: How do I choose the right HDPE pipe pressure rating?

Follow this three-step process:

1. Calculate maximum system pressure — Include static head, pump pressure, and water hammer.
2. Apply safety factor — Multiply by 1.5 for standard applications, 2.0 for critical systems.
3. Select PN class — Choose the next highest standard PN rating (PN10, PN12.5, ਜਾਂ PN16).

For complex projects, consult with a pipeline engineer or your HDPE pipe supplier to confirm specifications.

Q4: Can I use PN10 pipe for a PN12.5 application?

ਨੰ. Using a lower pressure-rated pipe than required violates engineering safety standards and creates significant risk of pipe burst, property damage, and personal injury. Always specify the correct HDPE pipe pressure class for your application.

Q5: What Is the Difference Between PN Rating and SDR Rating?

PN rating and SDR rating describe different aspects of HDPE pipes. PN indicates pressure capability, while SDR indicates the relationship between pipe diameter and wall thickness.

In general: Lower SDR → thicker wall → higher pressure capability. Higher PN → higher pressure classification. Both factors should be considered when selecting HDPE pipes.

ਸਿੱਟਾ

Choosing the correct HDPE pipe pressure rating is fundamental to building safe, efficient, and durable pipeline systems. Let’s summarize:

ਯਾਦ ਰੱਖੋ: PN10 offers excellent value for low-pressure applications. PN12.5 delivers the versatility that most municipal projects require. PN16 provides the robust performance needed for industrial and high-pressure environments.

Ready to Source Your HDPE Pipes?

ਸੰਪਰਕ ਕਰੋ Luoyang Datang Energy Tech Co., ਲਿਮਿਟੇਡ to confirm:

• ✅ Your exact pressure requirement
• ✅ Required pipe size and diameter
• ✅ Matching SDR rating
• ✅ Specific application environment

For more guidance on pipe selection, explore our articles on HDPE pipe selection factors ਅਤੇ choosing the right HDPE pipe fittings for pressure systems.
