Industrial 1PC Manual Stainless Steel Floating Ball Valve | BSPT / BSPP / NPT Threaded | DN8-DN100
PARAMETRONAN DI PRODUKTO
Deskripshon
Product Overview
This 1-piece manual stainless steel floating ball valve delivers reliable on/off flow control for water, oil, gas, and mild chemical applications. Its floating ball design ensures a tight seal against the PTFE seat under pressure, providing bubble-tight shut-off even at low pressure differentials. Available in SS304 or SS316 stainless steel with your choice of BSPT, BSPP, or NPT threaded connections, this valve is ideal for industrial pipelines, chemical processing, HVAC systems, and water treatment facilities. With a compact 1-piece body, low maintenance design, and 3-year warranty, it is a dependable solution for demanding manual flow control applications.

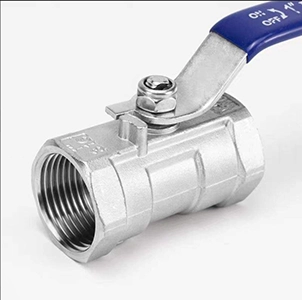

Industrial 1PC Manual Stainless Steel Floating Ball Valve
Technical Specifications
| Parameter | Spesifikashon |
|---|---|
| Product Name | 1PC Manual Stainless Steel Floating Ball Valve |
| Body Material | SS304 / SS316 Stainless Steel (Optional) |
| Ball Material | Staal Inoxidabel |
| Seal Material | PTFE (Teflon) |
| Valve Type | Floating Ball Valve / 1-Piece Body |
| Size Range | DN8 – DN100 (1/4″ to 4″) |
| Nominal Pressure | 1.6 MPa (232 PSI) / 1.1 MPa (Optional) |
| Temperature Range | -29°C to +150°C (PTFE seal) |
| Media | Water, Zeta, Gas, Mild Chemicals |
| Connection Type | Threaded – BSPT / BSPP / NPT |
| Thread Standards | BSPT: ISO 7 / DEN 10226-1; BSPP: ISO 228-1; NPT: ANSI B1.20.1 |
| Operashon | Manual Lever Handle |
| Design Standard | ASME B16.34, API 608 |
| Customization | OEM, ODM |
| Warranty | 3 Years |

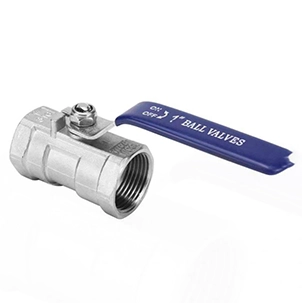

Industrial 1PC Manual Stainless Steel Floating Ball Valve
Key Features
1. Premium Stainless Steel Construction
2. Floating Ball Design for Positive Sealing
3. Versatile Thread Options – BSPT / BSPP / NPT
4. 1-Piece Body Construction
5. PTFE Sealing for Wide Temperature Range
6. OEM / ODM Customization Support
7. Low Maintenance Design
Aplikashonnan
- Water Treatment Systems
- Zeta & Tuberianan di Gas
- Chemical & Industria Farmaséutiko
- HVAC Systems
- Agricultural & Irrigation Systems
Industrial 1PC Manual Stainless Steel Floating Ball Valve
FAQ
Q1: What is the difference between BSPT, BSPP, and NPT threads?
UN: BSPT (British Standard Taper Pipe Thread) and NPT (American Standard Taper Pipe Thread) are tapered threads that seal through thread deformation; they require thread sealant or PTFE tape. BSPP (British Standard Parallel Pipe Thread) features parallel threads and seals using an O-ring or washer. They are not interchangeable due to differences in thread angles and pitches.
Q2: What is the difference between a floating ball valve and a trunnion-mounted ball valve?
UN: In a floating ball valve, the ball is connected only to the stem and is not fixed in place; under pressure, the ball shifts downstream to press against the seat and create a seal. Floating ball valves are more cost-effective (30–50% lower initial cost) and are suitable for smaller sizes (≤DN100) and moderate pressures, whereas trunnion-mounted ball valves are used for larger sizes and higher-pressure applications.
Q3: Can the valve body material be upgraded to SS316 or SS316L?
UN: Si. We offer customization with SS316 and SS316L materials, suitable for applications requiring superior corrosion resistance, such as chemical processing, marine environments, and pharmaceuticals. Please specify your requirements when placing an order.
Q4: What are the maximum working pressure and temperature ratings?
UN: Standard valves have a maximum working pressure of 1.6 MPa (232 PSI), and the temperature range for PTFE seals is -29°C to +150°C. Options for higher pressures and extended temperature ranges are available for special applications.
P5: What components are covered by the 3-year warranty?
UN: The 3-year warranty covers manufacturing defects in all valve components, including the body, ball, stem, and seals. Normal wear and tear, as well as damage caused by improper installation or operation, are not covered.
Industrial 1PC Manual Stainless Steel Floating Ball Valve
Empaketamentu i Envio
Packing depends on the product type and quantity. Options include coiling, ròl, pakete di pakete, crates, or boxes. Shipment can be arranged by sea, ferry, air, or as per customer’s request.
Profil di e kompania
LUOYANG DATANG ENERGY TECH CO., LTD is a professional industrial valve supplier, dedicated to providing reliable flow control solutions for fire protection, HVAC, tratamentu di awa, and industrial piping systems worldwide. All products are manufactured to international standards with UL/FM, CE, and ISO 9001 certifications. With over 10 years of experience, a modern facility of 80,000 m², i 200+ professional employees, we serve customers in 10+ countries with quality products, competitive pricing, and reliable delivery.
Kondishonnan di Pago
T/T, L/C na bista, Western Union & PayPal, etc.
