Butt Weld Fittings or Grooved Fittings? Understanding the Best Connection Method for Industrial Piping Systems

In industrial piping projects, selecting the right connection method is just as important as choosing the right pipe material or valve type.

A pipeline may operate under high pressure, extreme temperatures, corrosive environments, or continuous flow conditions. While pipes and valves usually receive the most attention, the connection method between components often determines the long-term reliability, maintenance requirements, and installation efficiency of the entire system.

Among various pipe connection solutions, Priključki za sočelni zvar in Okovja z žlebovi are two widely used options in modern industrial applications.

Butt weld fittings create a permanent connection through welding, providing excellent mechanical strength and leak resistance. They are commonly used in process industries, high-pressure pipelines, and applications where long-term durability is critical.

Grooved fittings, na drugi strani, use mechanical couplings to connect pipes without welding. Their fast installation, enostavno vzdrževanje, and flexibility have made them increasingly popular in commercial buildings, HVAC sistemi, water distribution networks, and fire protection piping systems.

So which connection method is better?

This article compares Butt Weld Fittings vs Grooved Fittings, explains their working principles, advantages, limitations, and typical applications to help engineers, izvajalci, and purchasing professionals select the most suitable pipe connection solution.

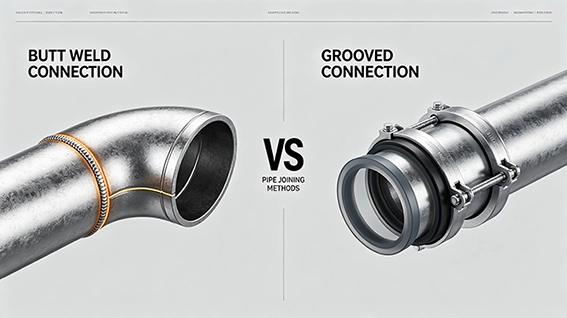

Butt weld fittings vs grooved fittings connection methods for industrial piping systems

1.Why Pipe Connection Methods Matter in Industrial Piping Systems

A fully functional industrial piping network is assembled from four core components: seamless or welded base pipes, control valves, standardized pipe fittings, and specialized connection hardware. While engineers spend ample time specifying pipe wall thickness, valve pressure ratings and fitting material grades, connection technology is frequently treated as an afterthought—an oversight that creates cascading operational risks long after project handover. Connection joints act as the weakest link of any pressurized fluid transport system, and the joining method dictates four non-negotiable performance pillars:

1.1 Connection Reliability and Leak Prevention

The primary purpose of any pipe connection is to maintain a secure and continuous flow path.

In applications such as:

• Chemical processing
• Oil and gas transportation
• Power generation
• Fire protection systems

even a small leakage issue can result in:

• Production downtime
• Safety risks
• Increased maintenance costs

Butt weld connections provide a continuous metal joint between the pipe and fitting, reducing the number of external sealing components.

Grooved connections rely on mechanical couplings and rubber gaskets, allowing flexibility while maintaining reliable sealing performance when properly installed.

1.2 Installation Efficiency and Labor Requirements

Different connection methods require different installation skills and equipment.

Butt Weld Connection

Requires:

• Skilled welders
• Welding machines
• Welding inspection
• Heat treatment in some applications

Grooved Connection

Requires:

• Pipe grooving equipment
• Mechanical couplings
• Bolt tightening tools

For large-scale projects, installation speed can significantly influence project completion time.

This is one reason why grooved systems have become increasingly common in:

• Commercial buildings
• Fire sprinkler systems
• HVAC pipelines

1.3 Maintenance and Future Modifications

Industrial facilities often need pipeline modifications after installation.

Na primer:

• Adding new equipment
• Replacing damaged components
• Expanding production lines

Grooved fittings offer easier disassembly because couplings can be removed without cutting or welding.

Butt weld systems provide excellent permanent strength but usually require more time and equipment for modification.

Comparison Overview

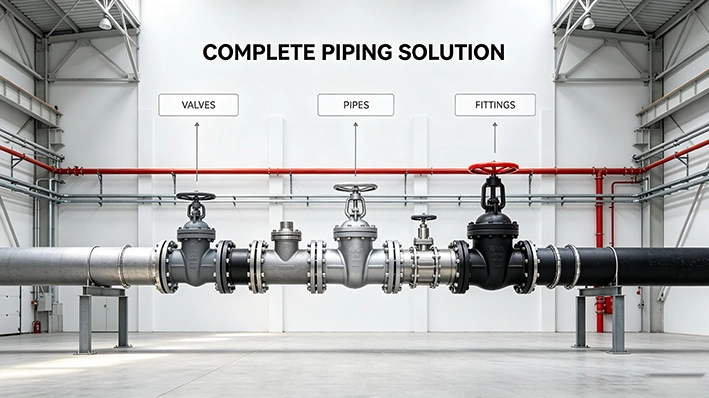

Industrial piping system components including valves pipes and pipe fittings

2. How Butt Weld Fittings Create Permanent Pipe Connections

Priključki za sočelni zvar form a fully integrated permanent pipeline joint by fusing the end face of the fitting directly to the matching pipe end via arc welding. Unlike mechanical coupling solutions, there are no separate sealing gaskets or clamping housings between connected pipe sections. This all-metal fusion structure delivers unmatched structural continuity for demanding industrial fluid transport.

The most widely standardized butt weld fitting types for industrial carbon steel and stainless steel piping include:

1. Butt Weld Elbow: 45° and 90° variants to redirect pipeline flow vertically or horizontally
2. Butt Weld Tee: Equal and reducing tees to split single main pipeline flow into multiple branch lines
3. Butt Weld Reducer: Concentric and eccentric reducers for smooth transition between large and small pipe diameters
4. Butt Weld Cross: Four-way equal flow distribution for complex multi-branch process networks

2.1 Standard Butt Weld Installation Workflow

Pipe Preparation → End Face Alignment → Root & Fill Welding → Post-Weld Surface Grinding → NDT Inspection (If Required) → Full System Hydrostatic Pressure Testing

Butt weld fittings installation process for industrial pipe connections

2.2 Core Advantages of Butt Weld Fittings

1. Extreme Structural Strength Welding melts and fuses pipe and fitting metal into one solid unit, eliminating separation risks under extreme pressure, thermal expansion or mechanical pipeline vibration.
2. Superior High Pressure & Temperature Performance Monolithic welded joints handle sustained operating pressure above 4.0MPa and continuous high-temperature media (paro, hot oil) where gasket-based mechanical joints risk seal degradation.
3. Compact, Smooth Inner Bore Design No protruding coupling housings or internal gaskets create flow turbulence; welded joints maintain consistent inner diameter, cutting flow resistance and preventing sediment buildup in process piping.

2.3 Key Limitations of Butt Welded Joints

1. počasi, Labor-Heavy Installation Certified weld labor and multi-step inspection drastically extend construction timelines for large-bore, long-distance piping networks.
2. Difficult Modification & Maintenance Any pipe repair, layout change or component replacement requires full joint cutting and re-welding, leading to extended system shutdown.
3. Mandatory Hot Work Permits Welding generates open flame and high heat, creating fire hazards in chemical, grain storage or enclosed confined spaces with strict hot-work bans.

3. Why Grooved Fittings Are Widely Used in Modern Piping Projects

Grooved fittings use mechanical couplings to connect pipes without welding. A groove is formed near the end of each pipe, a gasket is placed over the pipe ends, and a two-part housing clamps around both ends, securing into the grooves.

3.1 Components of a Grooved Connection

• Grooved Coupling—the housing that locks pipes together
• Grooved Elbow—changes flow direction
• Grooved Tee—splits or combines flow
• Rubber Gasket—creates the seal

3.2 How Grooved Connections Work

Pipe Grooving →Gasket Placement →Coupling Housing →Bolted Connection

The housings engage the groove around the entire pipe circumference, locking the pipe together. Flexible couplings allow for controlled linear and angular movement, while rigid couplings provide fixed connections.

3.3 Core Advantages of Grooved Fittings

• Faster Installation: A trained worker can assemble grooved fittings3 do 5 times faster than welding. Grooved systems can reduce project timelines by up to 50%.
• Lower Labor Requirements: No specialized welding certifications are required, and the assembly process uses simple tools.
• Easier Maintenance: Grooved end fittings allow easy removal of pipe sections for replacement, čiščenje, and service.
• Better Project Flexibility: Systems can be modified, expanded, or reconfigured without cutting and re-welding.
• Reduced Hot Work: No open flames, no welding fumes, no hot work permits required.
• Vibration Absorption: Flexible grooved couplings can absorb vibration and accommodate thermal expansion.

3.4 Limitations of Grooved Fittings

• Pressure and Temperature Limits: Grooved fittings typically have lower pressure ratings than welded connections. While standard systems operate at 300 psi, high-pressure grooved systems can reach up to 2,500 psi. Vendar, for extreme high-pressure applications, welding remains the superior choice.
• Gasket Wear: The elastomeric gasket is a wear component that may require replacement over the system’s lifetime.
• Precise Grooving Required: Proper grooving dimensions are critical for joint integrity.

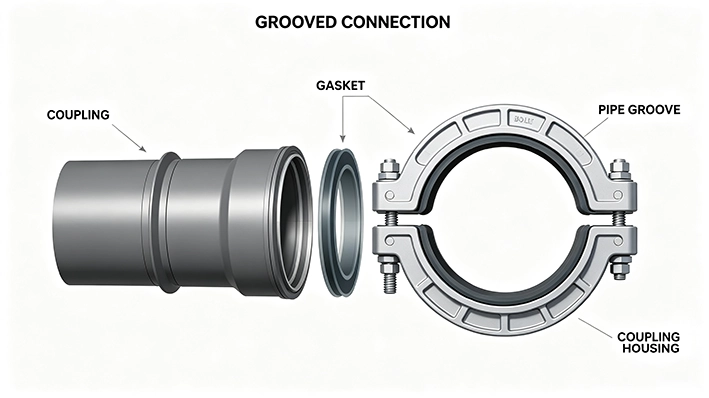

Grooved pipe fittings mechanical coupling structure with gasket and pipe groove

4. Butt Weld vs Grooved Fittings: The Differences Engineers Should Consider

Choosing between Priključki za sočelni zvar in Okovja z žlebovi is not simply about selecting the stronger option.

The correct choice depends on the complete project requirements.

Engineers typically evaluate:

• Pressure requirements
• Installation conditions
• Maintenance needs
• Project timeline
• Operating environment

Detailed Comparison: Butt Weld Fittings vs Grooved Fittings

4.1 Pressure Performance Comparison

Pressure capability is one of the most important factors when selecting pipe connection methods.

Priključki za sočelni zvar

Because the connection becomes a continuous metal structure, welded systems are often selected for:

• High-pressure pipelines
• High-temperature applications
• Critical process systems

Examples:

• Chemical processing lines
• Steam pipelines
• Energy facilities

Okovja z žlebovi

Grooved systems can provide reliable performance when properly designed.

They are widely used in:

• Fire protection piping
• Water supply systems
• HVAC circulation systems

Vendar, engineers must always verify:

• Coupling pressure rating
• Gasket material
• Pipe specification

4.2 Installation Time Comparison

For large-scale construction projects, installation speed can directly affect project costs.

Using welded connections:

• Welding preparation is required
• Skilled welders are needed
• Inspection time is increased

Using grooved connections:

• Pipes can be assembled quickly
• Modifications are easier
• Installation teams can work faster

Zato, grooved systems are often preferred when project schedules are tight.

4.3 Maintenance Comparison

Maintenance requirements are another major consideration.

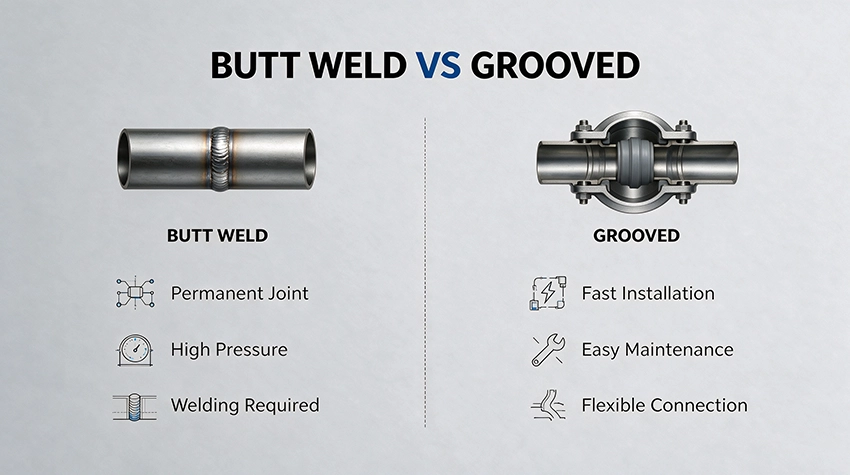

Technical comparison between butt weld fittings and grooved fittings

5. Which Connection Method Is Better for Fire Protection Piping?

Fire protection piping systems have unique requirements.

Unlike some industrial process pipelines, fire protection systems must prioritize:

• Installation reliability
• Fast project completion
• Easy inspection
• Future modification capability

This is why Okovja z žlebovi have become one of the most common connection solutions in fire protection applications.

5.1 Why Grooved Fittings Are Popular in Fire Protection Systems

Faster Installation for Large Projects

Fire protection systems often cover:

• Warehouses
• Commercial buildings
• Industrial facilities
• Shopping centers

Large networks require thousands of connection points.

Grooved connections allow contractors to install piping faster compared with traditional welding methods.

Easier Inspection and Maintenance

Fire protection systems require regular inspection.

Grooved connections allow easier access when:

• Replacing sections
• Adding sprinkler branches
• Modifying layouts

Reduced Hot Work Requirements

Many construction environments limit welding activities because of safety concerns.

Grooved systems reduce the need for:

• Open flames
• Welding permits
• Hot work management

5.2 Where Butt Weld Fittings Are Used in Fire-Related Applications

Although grooved systems dominate many fire protection projects, welded fittings may still be used in specific situations.

Examples:

• High-pressure fire pump discharge piping
• Industrial fire process systems
• Special engineering applications

The final choice depends on:

• Stopnja tlaka
• Design standards
• Project specifications

Fire Protection Application Comparison

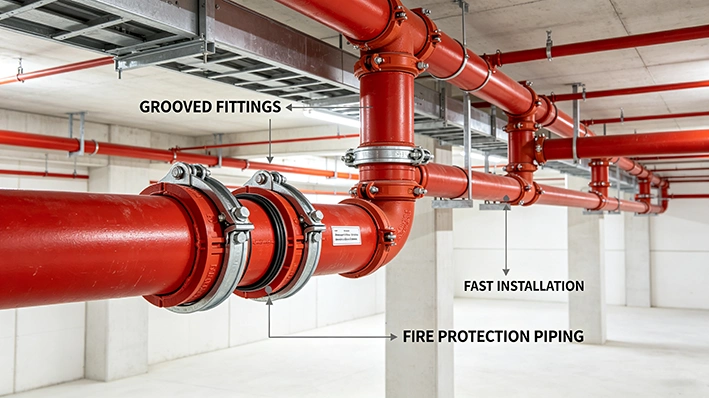

Grooved fittings used in fire protection piping systems

6. When Should You Choose Butt Weld Fittings?

Although grooved connections have become increasingly popular in many modern piping projects, Priključki za sočelni zvar remain the preferred choice for applications where strength, vzdržljivost, and long-term reliability are the highest priorities.

The decision to use butt weld fittings is usually driven by engineering requirements rather than installation convenience.

For systems operating under demanding conditions, a permanent welded connection can provide advantages that mechanical connections may not always offer.

6.1 High-Pressure Industrial Piping Systems

One of the most common applications for Butt Weld Pipe Fittings is high-pressure industrial piping.

Industries such as:

• Oil and gas
• Chemical processing
• Power generation
• Petrochemical plants
• Heavy manufacturing

often require piping systems capable of handling:

• High operating pressure
• Continuous operation
• Temperature fluctuations
• Aggressive media

In these environments, welded connections provide excellent structural integrity because the fitting and pipe become a continuous metal assembly.

6.2 Permanent Pipeline Installations

Butt weld fittings are also suitable when pipelines are designed for long-term operation without frequent modification.

Examples include:

• Process pipelines
• Production lines
• Utility systems
• Industrial fluid transportation networks

Once installed and tested, welded piping systems can provide reliable service for many years.

This makes them ideal for projects where:

• Pipeline layout is fixed
• Maintenance access is limited
• Maximum durability is required

6.3 Applications Requiring High Temperature Resistance

Certain industrial applications involve elevated temperatures.

Examples:

• Steam systems
• Thermal processing equipment
• Energy facilities

Because butt weld fittings do not rely on rubber gaskets or external sealing components, they are often preferred where temperature resistance is critical.

6.4 Carbon Steel Butt Weld Fittings in Industrial Applications

Among different materials, Carbon Steel Pipe Fittings are widely used with butt weld connections because of their:

• High strength
• Good mechanical properties
• Cost efficiency
• Industrial compatibility

Typical applications include:

Advantages of Choosing Butt Weld Fittings

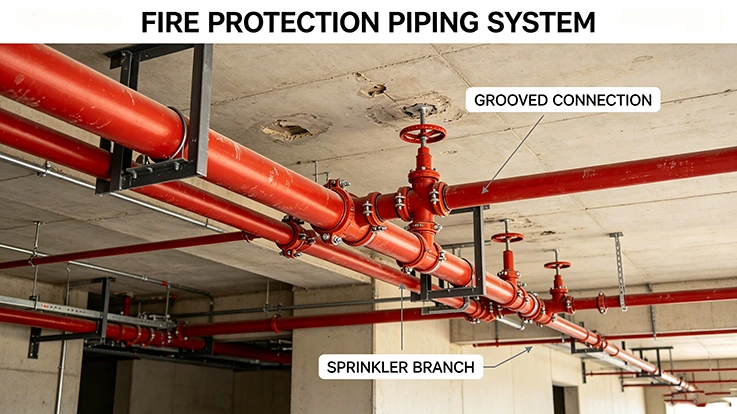

Grooved fittings used in fire protection piping systems

7. When Are Grooved Pipe Fittings a Better Solution?

For many modern construction and industrial projects, installation efficiency and maintenance flexibility are becoming increasingly important.

Tukaj je Grooved Pipe Fittings provide significant advantages.

Rather than creating a permanent connection, grooved systems provide a practical mechanical solution that allows faster assembly and easier future modifications.

7.1 Fire Protection Piping Systems

The most recognized application of grooved fittings is Protipožarne cevi.

Modern fire sprinkler systems often use grooved connections because they offer:

• Fast installation
• Reliable sealing
• Easy system expansion
• Convenient inspection

Large commercial projects such as:

• Office buildings
• Shopping centers
• Warehouses
• Industrial facilities

often require extensive sprinkler networks.

Grooved fittings help contractors complete these installations more efficiently.

7.2 HVAC and Building Service Systems

HVAC piping systems frequently require maintenance and modifications during the building lifecycle.

Grooved connections provide advantages in:

• Chilled water systems
• Cooling water circulation
• Mechanical room piping

Because couplings can be removed easily, maintenance teams can replace sections without extensive cutting and welding.

7.3 Projects with Tight Construction Schedules

Construction schedules often determine the final project cost.

For projects where installation speed is critical, grooved fittings can reduce:

• Labor hours
• Installation complexity
• Site preparation requirements

Compared with welding, mechanical grooved installation is generally faster and requires fewer specialized skills.

7.4 Applications Requiring Future Expansion

Industrial and commercial facilities often change over time.

New equipment may need:

• Additional pipeline branches
• System upgrades
• Layout adjustments

Grooved systems provide flexibility because sections can be disconnected and modified more easily.

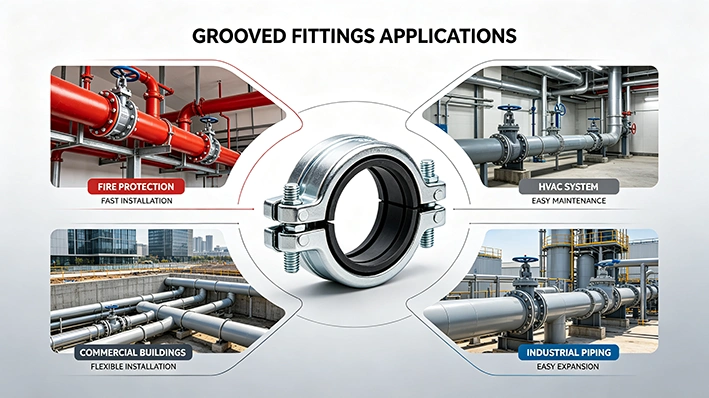

Grooved Fittings Application Summary

Applications of grooved fittings in fire protection HVAC and industrial piping systems

8. How Material Selection Affects Pipe Fitting Performance

While connection method is important, the material of the fitting also determines the overall performance of a piping system.

Industrial pipe fittings are commonly manufactured from:

• Ogljikovo jeklo
• Nerjaveče jeklo
• Ductile iron

Each material has different advantages depending on:

• Fluid type
• Operating environment
• Pressure requirements
• Corrosion conditions

8.1 Carbon Steel Pipe Fittings

Carbon steel is one of the most widely used materials for industrial piping applications.

Advantages include:

• Visoka mehanska trdnost
• Good pressure capability
• Cost effectiveness

Common applications:

• Industrial process pipelines
• Oil and gas systems
• Water transportation
• Power generation

Carbon steel butt weld fittings are especially common in applications requiring strong permanent connections.

8.2 Priključki za cevi iz nerjavečega jekla

Stainless steel pipe fittings are selected when corrosion resistance is a priority.

Prednosti:

• Odlična odpornost proti koroziji
• Good temperature performance
• Dolga življenjska doba

Typical applications:

• Chemical industries
• Food processing
• Pharmaceutical systems
• Marine environments

Common products include:

• Stainless steel elbows
• Stainless steel tees
• Stainless steel reducers

8.3 Ductile Iron Grooved Fittings

Ductile iron is widely used in grooved piping systems, especially for:

• Fire protection systems
• Water distribution
• Building services

Prednosti:

• High durability
• Good mechanical strength
• Cost-effective performance

Ductile iron grooved fittings are commonly paired with:

• Fire fighting pipes
• Sprinkler systems
• Water supply pipelines

Material Selection Comparison

Carbon steel stainless steel and ductile iron industrial pipe fittings comparison

9. Final Decision: Selecting the Right Pipe Connection Method

There is no single connection method that is suitable for every industrial piping project.

The best choice depends on the operating conditions, installation environment, and future maintenance requirements.

Engineers should evaluate:

• Stopnja tlaka
• Temperaturno območje
• Pipeline purpose
• Installation schedule
• Maintenance expectations
• Material compatibility

Choose Butt Weld Fittings When:

• ✔ The system requires maximum mechanical strength
• ✔ The pipeline operates under high pressure
• ✔ Permanent installation is preferred
• ✔ High temperature resistance is required
• ✔ The application involves critical industrial processes

Typical applications:

• Oil and gas pipelines
• Chemical processing
• Power plants
• Heavy industrial systems

Choose Grooved Fittings When:

• ✔ Fast installation is important
• ✔ The project requires flexible modification
• ✔ Maintenance access is a priority
• ✔ Fire protection piping is involved
• ✔ Construction time is limited

Typical applications:

• Fire sprinkler systems
• HVAC piping
• Commercial buildings
• Water distribution systems

Final Comparison Table

Complete industrial piping solution with valves pipes and fittings

Zaključek & Next Steps

Selecting the right pipe connection method is a strategic engineering decision that affects project cost, construction schedule, operational reliability, and long-term maintenance. Butt weld fittings deliver permanent, high-strength joints for demanding industrial applications where pressure and temperature are critical. Grooved fittings provide speed, prilagodljivost, and easy maintenance for fire protection, HVAC, and commercial systems. By matching the connection method to the project requirements, you improve reliability, reduce lifecycle costs, and keep installation schedules on track.

As a manufacturer of industrial valves, pipe fittings, and piping products, Luoyang Datang Energy Tech Co., doo supply complete industrial piping solutions. Explore our product range:

• Priključki za cevi
• Ventili
• Cevi

Contact our team to discuss your project specifications, material requirements, and pressure ratings. We can provide technical guidance and a tailored quotation for your industrial piping system.
