The Complete Checklist for Specifying HDPE Pipe Fittings

Selecting HDPE pipe fittings is not about choosing the right elbow, tee, or flange adapter from a catalog. Get it wrong, and you are not looking at a simple re-order—you are looking at pressure failures, installation delays, field rework, and budget overruns.

This guide is written for engineers, procurement officers, and site supervisors who already know what HDPE is. You don’t need another “what is polyethylene” article. You need a practical, step-by-step specification checklist that covers material grade, басым рейтингы, SDR compatibility, connection methods, applicable standards, and application conditions—before you place that order.

HDPE Pipe Fittings Specification Checklist for Engineering Projects

Why Proper HDPE Pipe Fittings Specification Matters

HDPE торба җиһазлары are critical components that connect, control, and redirect pipeline systems. Even when HDPE pipes are correctly selected, unsuitable fittings may reduce the reliability of the entire system.

A proper HDPE pipe fittings specification process ensures that every component works together as a complete pipeline system.

HDPE Pipe Fittings Specification Checklist

Before we dive into each factor in detail, here is the complete checklist at a glance:

Now let’s break down each item.

1. Confirm HDPE Fitting Material Grade

Material selection is one of the most important factors when specifying HDPE pipe fittings.

Modern pressure pipeline projects commonly use PE100 HDPE fittings because PE100 materials provide higher strength, better pressure resistance, and excellent long-term performance.

For industrial and municipal pipeline projects, PE100 HDPE fittings are widely preferred due to their reliability and longer service life.

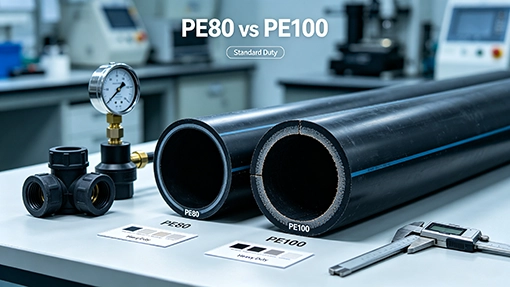

PE80 vs PE100

2. Match Pipe Diameter and Fitting Size

HDPE fitting sizing is stricter than most people think. You need to look not just at the nominal diameter DN, but also verify that the pipe outer diameter (OF) and the fitting socket dimensions match perfectly. Under different standard systems, DN110 might have slightly different ODs. Forcing a connection can result in uneven beads during butt fusion or misaligned heating zones during electrofusion.

Common fitting sizes range from DN20 up to DN1200 and beyond, but the most common engineering range is DN63 to DN315. When specifying, always confirm:

• The fitting nominal diameter matches the pipe outer diameter
• The socket depth of electrofusion fittings matches the pipe wall thickness
• The bolt hole spacing of flange adapters matches the mating valve or equipment flange

3. Check Pressure Rating and SDR Compatibility

Pressure capability is a key factor when selecting HDPE pipe fittings.

The pressure rating depends on:

• Material grade
• Дивар калынлыгы
• SDR кыйммәте
• Operating temperature

Critical Reminder: When procuring, the SDR values of fittings and pipes must be identical. Don’t accept “it’ll weld close enough” — that’s a crew trying to save trouble, not engineering standards.

SDR11 vs SDR17 vs SDR21

4. Select the Right Connection Method

The connection method directly affects installation efficiency and pipeline reliability.

.Әр сүзнең correct connection method depends on pipeline size, урнаштыру шартлары, һәм проект таләпләре.

5. Choose the Right HDPE Fitting Type

Different pipeline configurations require different fitting geometries. Here is a quick reference:

Important note on fabricated fittings: Not all fittings are created equal. Segmented bends (fabricated from pipe segments) do not carry the full pipe pressure rating. Per ISO 4427-3 / PIPA POP006, segmented bends maintain full rating up to a 7.5° cut angle but drop to about 0.8× the pipe PN for cut angles up to 15°. Segmented tees can be as low as 0.5× the pipe PN. If you need full pressure rating, specify molded fittings or electrofusion fittings instead.

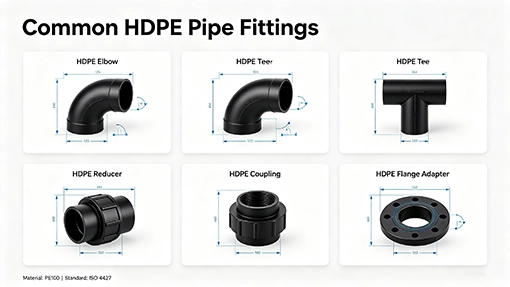

HDPE Pipe Fittings Types

6. Verify Applicable Standards and Certifications

Standards ensure that HDPE pipe fittings meet required quality and performance requirements.

Common standards include:

Before purchasing, buyers should confirm whether fittings meet the required project standards.

7. Consider Application Conditions

Performance data from the lab and actual site conditions often diverge. Beyond standard parameters, you need to factor in ambient temperature, media characteristics, burial depth, and external loads.

Special Note: If pipes are buried under roadways, in addition to internal pressure, consider the effects of static and dynamic external loads on fittings. Higher pressure ratings or additional protective casing may be necessary.

HDPE Pipe Fittings used in Industrial Chemical

8. Evaluate HDPE Pipe Fittings Manufacturer Quality

Choosing the right supplier is as important as choosing the right specification.

Before ordering, check:

Common Mistakes When Specifying HDPE Pipe Fittings

Even experienced engineers make these mistakes. Here is what to avoid:

Evaluate HDPE Pipe Fittings

Final Checklist Before Ordering HDPE Pipe Fittings

Йомгаклау: Get the Specification Right, Save Trouble Later

The core logic of HDPE fitting specification isn’t complicated: material grade determines strength, SDR determines wall thickness, pressure rating determines safety margins, connection method determines construction feasibility, and standards certification determines compliance. Go through these eight dimensions one by one, and the probability of on-site problems drops dramatically.

If you’re planning a municipal water supply, industrial pipeline, or agricultural irrigation project and need reliable HDPE pipe fittings with technical support or customized solutions, contact our engineering team. We can provide end-to-end technical advice from specification to connection methodology based on your specific operating conditions.
