Butterfly Valve Selection Guide for Industrial Water & HVAC Systems

In industrial water treatment and HVAC systems, flow control is not optional—it is essential. Whether you are managing a municipal water treatment plant, a district cooling network, or a commercial building’s chilled water system, the ability to regulate, isolate, and throttle fluid flow directly impacts system efficiency, energy consumption, and operational reliability. Among the many valve types available, thebutterfly valve stands out as one of the most versatile and cost-effective solutions for industrial flow control.

But with so many options—wafer, lug, flanged, manual, electric, pneumatic—how do you choose the rightindustrial butterfly valve for your specific application? This guide provides a practical, step-by-step framework for selecting butterfly valves for water treatment and HVAC systems.

What Is a Butterfly Valve?

MỘT butterfly valve is a quarter-turn rotational valve used to regulate or isolate flow in a pipeline.

It is widely used in:

• Water treatment systems
• HVAC pipelines
• Industrial automation systems
• Chemical and process industries

In industrial water treatment Và HVAC systems, butterfly valves are indispensable because they offer:

• Low pressure drop when fully open
• Quick operation (quarter-turn = full open/close)
• Lightweight design compared to gate or globe valves
• Excellent throttling capability for flow modulation
• Lower installation cost due to compact face-to-face dimensions

wafer butterfly valve industrial flow control DN100 cast iron

Working Principle of Butterfly Valve

The valve uses a rotating disc mounted on a shaft. When the disc rotates, it controls flow by opening or blocking the pipeline.

✔ 90° rotation = Full open / close
✔ Partial rotation = Flow regulation

Types of Butterfly Valves for Water & HVAC Applications

Wafer Butterfly Valve

các wafer butterfly valve is the most economical and widely used type. It is designed to fit between two pipe flanges using long bolts that pass through the valve body and both flanges. Key characteristics:

Limitations: Cannot be used as an end-of-line valve; both sides must be flanged.

wafer butterfly valve DN200 PN16 EPDM seat hand lever industrial

Van bướm Lug

các lug butterfly valve features threaded lugs (ears) around the body perimeter, allowing each side to be bolted independently. This design enables:

• Dead-end service — one side can be disconnected while the other remains pressurized
• Easy maintenance — no need to drain the entire system
• Higher structural integrity for critical applications

lug butterfly valve DN100 CF8M stainless steel PN16 industrial

Flanged Butterfly Valve

các flanged butterfly valve comes with integral flanges that bolt directly to mating flanges on the pipeline. This type is preferred for:

• High-pressure applications (PN25, PN40, ANSI 300+)
• Large-diameter pipelines (DN300 – DN3000+)
• Critical isolation where zero leakage is required
• Double/triple eccentric designs for metal-to-metal sealing

flanged butterfly valve double eccentric industrial water flow control DN500

Electric Butterfly Valve

An electric butterfly valve integrates an electric actuator with the valve body, enabling remote and automated operation. It is the preferred choice for:

HVAC building automation systems (BAS/BMS integration)

Water treatment plants requiring SCADA control

Processes with frequent cycling or precise positioning needs

electric butterfly valve actuator HVAC system temperature control automation

How to Select the Right Butterfly Valve for Your Application

Bước chân 1 — Define Your Application Requirements

Before selecting a butterfly valve for HVAC system hoặc butterfly valve for water treatment, answer these critical questions:

• What is the fluid medium? — Water, wastewater, hóa chất, hơi nước?
• What is the operating pressure and temperature? — This determines body material and seat type
• What is the required flow characteristic? — On/off, throttling, or precise modulation?
• What is the pipe size? — Common sizes: DN50, DN100, DN150, DN200, DN300
• Is automation required? — Manual, pneumatic, hoặc electric actuator butterfly valve system?

Bước chân 2 — Choose the Right Body & Disc Material

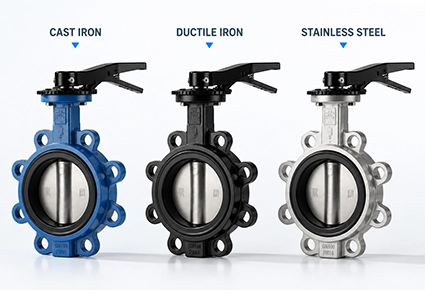

Cast iron ductile iron stainless steel butterfly valve material comparison

Bước chân 3 — Select the Seat Material

The seat material is critical for sealing performance and service life:

Bước chân 4 — Determine Connection Type & Size

For industrial pipeline valve solutions, the connection type must match your piping standard:

Size selection tip: For water and HVAC, size the valve to match the pipe ID. Oversizing causes poor throttling; undersizing creates excessive pressure drop.

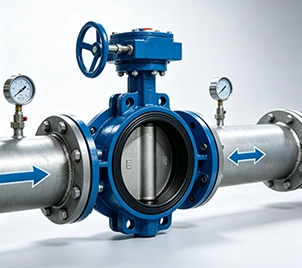

butterfly valve for water treatment wastewater pipeline industrial flow control

Butterfly Valve Applications in Water Treatment & HVAC

Water Treatment Plants

In water treatment facilities, butterfly valves are used for:

• Raw water intake — Large-diameter flanged butterfly valves (DN500–DN2000)
• Chemical dosing lines — DN50 DN100 butterfly valves with PTFE seats
• Sludge handling — Lug butterfly valves for easy maintenance isolation
• Filtration systems — Electric butterfly valves for automated backwash cycles
• Discharge control — High-performance double-eccentric valves

HVAC Systems

For butterfly valve for HVAC system applications:

• Chilled water loops — Wafer butterfly valves with EPDM seats (DN100–DN400)
• Hot water distribution — Lug butterfly valves for pump isolation
• Cooling towers — Electric actuator butterfly valve systems for BAS integration
• Air handling units (AHU) — Compact wafer valves for space-constrained installations
• Heat exchangers — High-performance valves with precise modulating actuators

Common Mistakes in Butterfly Valve Selection

butterfly valve for water treatment wastewater pipeline industrial flow control

Frequently Asked Questions

Q1: What is the difference between wafer and lug butterfly valves?

MỘT: Wafer valves are sandwiched between flanges with through-bolts passing through the entire assembly. They cannot isolate flow from one side. Lug valves have threaded inserts that allow each flange to bolt independently, enabling dead-end service (one-side isolation).

Q2: Which butterfly valve is best for HVAC chilled water systems?

MỘT: For most HVAC chilled water applications, Mộtwafer-type concentric butterfly valve with anEPDM seat is the most cost-effective and reliable choice. For automated control, pair it with anelectric actuator with 4-20mA or 0-10V modulating control.

Q3: Can butterfly valves be used for throttling (flow regulation) control?

MỘT: Đúng. Butterfly valves offer excellent control and throttling range for pipes larger than 2.5″ (6.4 cm). All butterfly valves exhibit equal percentage characteristics from 0° to 60° rotation. For precise flow modulation, double-offset or triple-offset designs are preferred.

Q4: What pressure rating do I need for water treatment applications?

MỘT: Municipal water systems typically use PN10 or PN16 (10-16 thanh / 145-232 PSI). Industrial applications or high-rise buildings may require PN25 or higher. Always select a valve that meets or exceeds your system’s maximum working pressure.

Q5: What standards should a quality industrial butterfly valve comply with?

MỘT: Quality butterfly valves should comply withAPI 609 (design and testing for butterfly valves), ISO 5752 (face-to-face dimensions), ISO 5211 (actuator mounting), VàAPI 607 (fire-safe testing). Look for suppliers withISO 9001 certification and CE/PED compliance.
