Overview sa Produkto

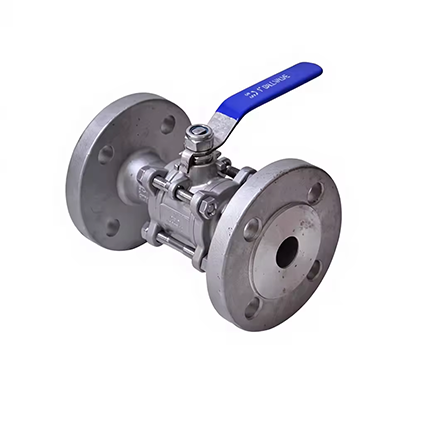

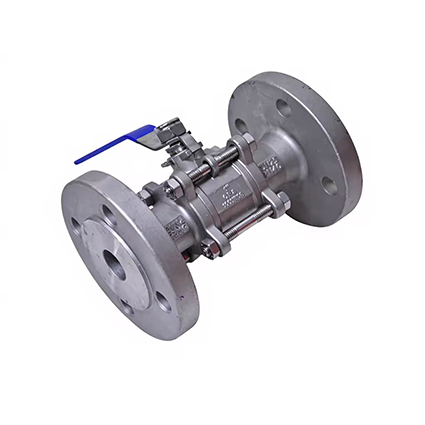

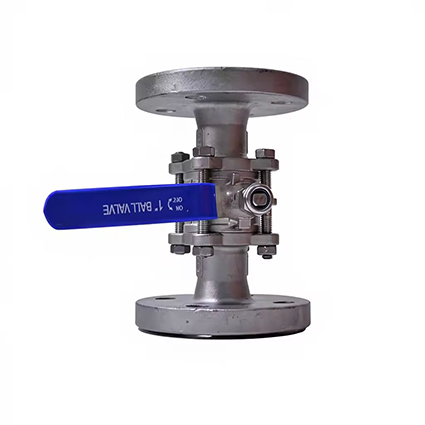

Ang 3 Piece Flanged Stainless Steel Ball Valve is a premium-grade, full-port isolation valve designed for reliable on/off control in water, lana, gas, and food-grade applications. Manufactured from high-quality stainless steel (SUS304 / SUS316L) with precision investment casting, this valve offers exceptional corrosion resistance, kalig-on, and hygienic performance. The 3-piece body design enables easy in-line maintenance — the center section can be removed without disturbing the pipeline connections. Available in sizes from DN15 to DN150 (1/2″ to 6″) with flanged ends and PTFE/PPL seats, this valve delivers bubble-tight shut-off (Class VI sealing) at temperatures up to 200°C. The full-port design ensures minimal pressure drop and maximum flow capacity. With FDA GRAS (Generally Recognized As Safe) compliance for food-contact applications and OEM/ODM customization support, this valve is the trusted choice for chemical processing, pagkaon & beverage, pharmaceutical, pagtambal sa tubig, ug mga sistema sa tubo sa industriya.

3 Piece Flanged Stainless Steel Ball Valve

Teknikal nga mga Detalye

3 Piece Flanged Stainless Steel Ball Valve

Pangunang mga bahin

1. Premium Stainless Steel 304/316L Construction
2. 3-Piece Body Design – Easy In-Line Maintenance
3. Full Port Design – Maximum Flow Capacity
4. PTFE/PPL Seats – Low Friction & Excellent Sealing
5. FDA GRAS Compliant – Safe for Food Contact
6. Flanged Connection - Daghang Sumbanan
7. Anti-Static & Blow-Out Proof Stem Design
8. OEM / Suporta sa Pag-customize sa ODM

Mga aplikasyon

1. Food & Beverage Processing
2. Pharmaceutical & Biotech
3. Pagproseso sa Kemikal
4. Pagtambal sa Tubig & Desalination
5. Lana & Mga Pipeline sa Gas

3 Piece Flanged Stainless Steel Ball Valve

Pag-pack ug Pagpadala

Ang pag-pack nagdepende sa tipo ug gidaghanon sa produkto. Options include carton boxes or wooden crates with proper protection for flange faces. Ang pagpadala mahimong mahikay sa dagat, riles, hangin, o sumala sa hangyo sa kustomer.

Profile sa Kompanya

LUOYANG MIABOT ENERGY TECH CO., LTD is a professional industrial valve supplier, gipahinungod sa paghatag ug kasaligan nga mga solusyon sa pagkontrol sa dagan alang sa pagpanalipod sa sunog, HVAC, pagtambal sa tubig, pagproseso sa pagkaon, pharmaceutical, ug mga sistema sa tubo sa industriya sa tibuok kalibutan. Ang tanan nga mga produkto gigama sa internasyonal nga mga sumbanan nga adunay UL / FM, CE, FDA, ug ISO 9001 mga sertipikasyon. Uban sa ibabaw 10 ka tuig nga kasinatian, usa ka modernong pasilidad sa 80,000 m², ug 200+ propesyonal nga mga empleyado, nag-alagad kami sa mga kustomer sa 10+ mga nasud nga adunay kalidad nga mga produkto, competitive nga presyo, ug kasaligan nga paghatod.

Mga Termino sa Pagbayad

T/T, L/C sa panan-aw, Western Union, PayPal, Apple Pay, Google Pay, Credit Card, ug uban pa.

3 Piece Flanged Stainless Steel Ball Valve

FAQ

Q1: What is the difference between a three-piece ball valve and a one-piece or two-piece ball valve?

A: A three-piece ball valve consists of three body components (two end caps and a central body) bolted together; the central body can be removed for maintenance or seal replacement without disconnecting the pipeline flanges. Sukwahi, one-piece and two-piece ball valves must be completely removed from the pipeline for maintenance. The three-piece design is particularly suitable for food, pharmaceutical, and chemical applications that require regular maintenance and cleaning.

Q2: What is the difference between PTFE and PPL seats?

A: PTFE (polytetrafluoroethylene) seats offer low friction, maayo kaayo nga pagsukol sa kemikal, and a temperature range of -20°C to +200°C, making them suitable for most food and chemical applications. PPL (reinforced PTFE) offers superior wear resistance and pressure-handling capabilities, making it suitable for applications involving higher pressures and more frequent operation.

Q3: What does FDA GRAS compliance mean?

A: FDA GRAS (Generally Recognized As Safe) is a safety certification from the US FDA for food-contact materials. All materials in this valve that come into contact with the process medium comply with FDA GRAS standards, ensuring safety for fluid handling in food, beverage, dairy, and pharmaceutical production.

Q4: Can this valve be used for steam applications?

A: This valve comes standard with PTFE seats, rated for a maximum temperature of 200°C. For steam applications (saturated steam), it is recommended to verify that the operating temperature does not exceed the seat’s rated limit. If higher temperatures are required, PPL seats or metal-to-metal sealing options are available.
