Tubos e accesorios PPR: Todos os tipos e aplicacións

Tubos e accesorios de PPR have become the first choice in construction,sistema de abastecemento de auga,sistema de drenaxe. Como fabricante profesional de tubos e accesorios PPR de China, Analizaremos exhaustivamente os tipos de tubos e accesorios PPR, accessories classification and purchase points, to help you create a safe and reliable pipe system.

PPR Pipe Technical Characteristics

1. Vantaxes materiais

PPR (polipropileno copolímero aleatorio) uses advanced type III polypropylene as raw materials,includes:

• Rango de temperatura: -20℃ a 95 ℃ (instantaneous up to 110℃)
• Presión de traballo: PN10-PN25 (1.0-2.5MPa)
• Linear expansion coefficient: 0.15mm/m·k
• Condutividade térmica: 0.24W/mk

2. Ambiental Ccertificación

According to NSF, WRAS, KTW and other international drinking water certification, lead content < 0.1μg/L, in line with GB/T17219 health standards.

PPR vs Other Pipe Materials — A Quick Comparison

How does PPR compare to traditional piping materials? Here is a side-by-side look at what matters most:

Comparison Factor	PPR	Galvanized Steel	Cobre	PVC
Resistencia á corrosión	Excellent — immune to rust and chemical corrosion	Poor — rusts over time	Ben	Ben
Vida útil	50+ anos	15–20 years	25–30 years	25–40 years
Joint Method	Heat fusion — seamless, a proba de fugas	Threaded — prone to leakage	Soldered or threaded	Solvent cement
Condutividade térmica	Baixo (0.24 W/m·K) — minimal heat loss	High — significant heat loss	Very High — major heat loss	Baixo
Peso	Lightweight — easy handling	Heavy — requires more labor	Moderado	Lixeiro
Costo Inicial	Moderado	Baixo	Alto	Baixo
Requisito de mantemento	Minimal — maintenance-free	High — regular inspection needed	Moderado	Baixo
Suitability for Hot Water	Excelente (ata 95 °C)	Ben	Excelente	Not suitable

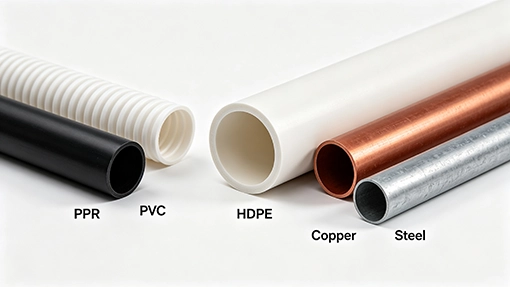

PPR vs Other Pipe Materials

The Main Type of PPR pipeline

Classification By Precurso Level

Tipos	Presión de traballo(Mpa)	Aplicacións	Wall Thickness Range
PN10	1.0 MPa	Sistema de auga fría, low pressure irrigation	2.0-3.5 mm
PN16	1.6 MPa	Multistory building water supply system	2.3-4.2 mm
PN20	2.0 MPa	High temperature heating, tubaxe industrial	2.8-5.4 mm
PN25	2.5 MPa	High pressure steam systems, special industries	3.5-6.5 mm

Sort By Function

• Tubo de auga fría (marked by blue line): Suitable for water supply system ≤40℃
• Tubo de auga quente (marked by red line): Withstand 70-95℃ high temperature medium
• Antibacterial tube: Add nano silver ion, taxa antibacteriana > 99%
• Oxygen blocking tube: EVOH oxygen blocking layer, oxygen permeability < 0.1g/m³·d

Especificación Parámetros

Commonly used outside diameter specifications (mm) :

• Home decoration: 20, 25, 32 mm
• Commercial engineering: 40, 50, 63 mm
• Industrial ssistemas: 75, 90, 110 mm

PPR Fittings Complete System

1. Connecting Aaccesorios

Tipo	Angle Specifications	Aplicacións
ELBOW	45 °/ 90 ° /180 °	Reroute
EQUAL COUPLING		Equal diameter pipes are connected in straight lines
REDUCING COUPLING	Reducing range ±50%	Different pipe diameters are connected
UNION	Detachable design	Equipment access interface

2. Branch Aaccesorios

• Tee: Equal diameter/reducing diameter, T /Y shunt
• Catro-way Cruz: Cross pipe connection
• Multi-Cruz: Integrated distribution system

3. Control Aaccesorios

• Válvula de bola: DN15-DN100 full flow control
• Válvula de globo: precise flow control
• Temperatura control valve: automatically adjust the medium temperature

4. Special Function Aaccesorios

Types of accessories	Core technology	Functional features
Filter Valve	100 mesh stainless steel strainer	Intercepting pipe impurities
Pressure reducing valve	Diaphragm type pressure regulator	Stabilizing system pressure ±0.05MPa
Silencer tube fitting	Spiral diversion design	Noise reduction 15-20 dB

The complete PPR product family can be grouped into three main categories: pressure-rated pipes, functional pipes, e system fittings (which include connection, branch, control, and special function fittings). Combined, these components provide a comprehensive piping solution for any project — from residential plumbing to industrial systems.

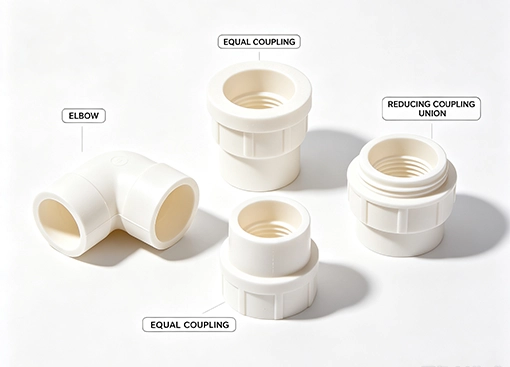

PPR Fittings Complete System

Vantaxe of PPR Pipeline System

1. Comparison of installation efficiency

• Hot melt connection: 15-30 seconds/connector
• Traditional threaded connection time: 3-5 minutes/connector

The comprehensive construction efficiency is increased by 60%

2. Vida útil Ccomparación

Material	Esperanza de vida	Maintenance cycle
PPR	50 anos +	Maintenance-free
Galvanized pipe	15 anos	Annual overhaul
Copper pipe	25 anos	5 year detection

3. Cost of PPR Pipe System Analysis

• The initial cost is 40% lower than copper tubing
• Maintenance costs are reduced by 80%
• Combined use cost savings of 65%

Installation Best Practices — Step-by-Step Checklist

Proper installation is the key to ensuring PPR system performance and longevity. Follow these steps:

Paso	Action	Key Requirement
1. Pipe Cutting	Cut pipe squarely with a pipe cutter	Ensure clean, corte sen rebabas
2. Surface Cleaning	Clean pipe end and fitting socket	Remove dirt, aceite, e humidade
3. Depth Marking	Mark insertion depth on pipe	Match socket depth of fitting
4. Heating	Heat pipe and fitting simultaneously at 260±5°C	Use correct heating time (see formula below)
5. Joining	Insert pipe into fitting with a straight push	No twisting during insertion
6. Cooling	Hold joint in position until fully cooled	Summer: 15 min, Winter: 30 min
7. Visual Inspection	Check for uniform melt ring around joint	Indicates proper fusion

Heating Time Formula: Diámetro de tubo (mm) ÷ 10 × 1.2 segundos

Pipe Diameter	Recommended Heating Time
20mm	3–4 seconds
25mm	4–5 seconds
32mm	5–6 seconds
40mm	6–7 seconds
50mm	7–8 seconds
63mm	8–10 seconds

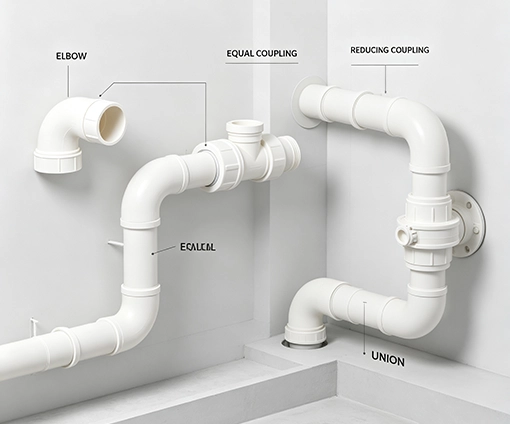

PPR Fittings used in systems

Professional Purchasing Guide

1. How to Choose High Calidade PPR Pipes And Fittings

• Observe the incision: The incision of high quality pipe is smooth and without burrs
• Combustion test: No black smoke when burning, transparent melt droplets
• Light transmittance: Light opaque design to prevent algae growth

2. Suggestions for PPR Pipe Ssistema Construír

• Serie S5 (wall thickness 2.0mm) is recommended for cold water system.
• Serie S3.2 (wall thickness 2.8mm) recommended for floor heating system
• Serie S2.5 (wall thickness 3.5mm) should be selected for the main riser of high-rise buildings.

3. Key Point of PPR Pipes And Fittings Instalación

• Hot melt temperature: 260± 5℃
• Heating time formula: PPR pipe diameter (mm)/10 x 1.2 segundos
• Tempo de arrefriamento: 15 minutes in summer, 30 minutes in winter

Quick Selection Guide — Choose the Right PPR Pipe for Your Project

Use this table to quickly identify the correct PPR pipe series for different applications:

Application Scenario	Recommended Series	Espesor da parede	Clasificación de presión	Consideración clave
Cold Water Supply	S5 (PN10)	2.0–3.5 mm	1.0 MPa	≤40°C, residential or light commercial
Quente Abastecemento de auga	S3.2 (PN20)	2.8–5.4 mm	2.0 MPa	70–95°C, continuous hot water
Floor Heating System	S3.2 (PN20)	2.8–5.4 mm	2.0 MPa	Use oxygen barrier pipe for heating
High-Rise Main Riser	S2.5 (PN25)	3.5–6.5 mm	2.5 MPa	High pressure requirements in tall buildings
Tubería industrial	S2.5 (PN25)	3.5–6.5 mm	2.5 MPa	High temperature + alta presión
Healthcare / Food Facility	Antibacterial Pipe	Varies by series	Varies by series	>99% taxa antibacteriana, hygiene priority

Pro Tip: For systems with fluctuating pressure, choose one series higher than the calculated requirement. Por exemplo, if your system operates at 1.2 MPa, select PN16 or PN20 rather than PN10 to ensure adequate safety margin.

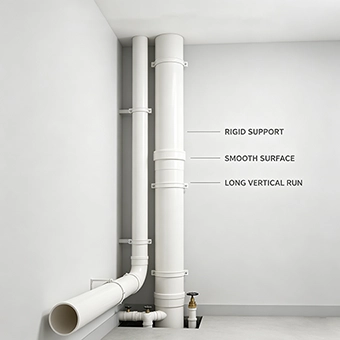

PPR Pipe for High-Rise Main Riser
