In the world of industrial piping, few components are as fundamental—and as frequently misunderstood—as the gate valve. Whether you are designing a municipal water supply system, an oil and gas transmission line, or a high-pressure steam network, the gate valve you choose determines the reliability, badbaadada, and efficiency of your entire system. Choose incorrectly, and you risk leaks, energy waste, production stoppages, and even safety incidents.

Gate valves are bi-directional shut-off devices designed to fully open or close the flow path in a piping system. Unlike globe or butterfly valves, gate valves create minimal pressure drop when fully open due to their straight-through flow design. But with countless types, materials, and configurations available, choosing the right gate valve is a critical challenge for many engineering procurement and technical professionals.

This comprehensive guide will walk you through everything you need to know about gate valve selection—from understanding the difference between OS&Y and NRS designs, to choosing the right materials for your media, to navigating key industry standards like API 600 and ASME B16.34.

What Is a Gate Valve?

A gate valve is a linear-motion isolation valve that uses a flat or wedge-shaped gate (disc) to start or stop fluid flow. The gate moves perpendicular to the flow direction—when fully open, the gate is completely withdrawn from the flow path, creating a straight-through passage with minimal pressure drop.

Key advantages of gate valves:

✅Bi-directional flow capability – Can be installed in either flow direction

✅Minimal pressure drop – Straight-through design when fully open

✅Excellent sealing – When closed, provides reliable shut-off

✅Suitable for slurries and viscous liquids – Handles challenging media

✅Available in large sizes – For major pipeline applications

✅Inherently fire-safe – Metal-to-metal seating provides fire resistance

✅Easy maintenance – Simple disassembly and repair

Limitations to consider:

⚠️Slow operation – Requires multiple handwheel turns to open or close

⚠️Not suitable for throttling – Should only be used fully open or fully closed

⚠️Larger footprint – Takes more space than some other valve types

⚠️Potential stem leakage – Packing may wear over time

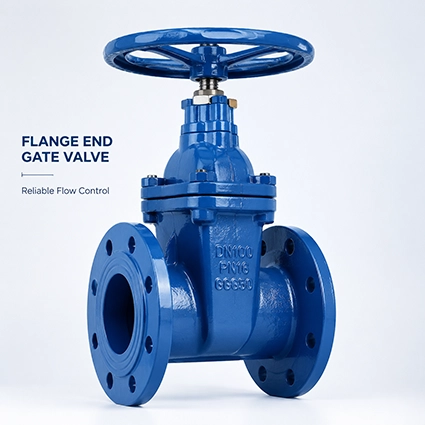

Flanged gate valve with handwheel for industrial pipeline

OS&Y vs NRS – Which Stem Design Do You Need?

One of the most fundamental decisions in gate valve selection is the stem design: OS&Y (Outside Screw and Yoke) ama NRS (Non-Rising Stem) . The choice depends on your installation environment, space constraints, and inspection requirements.

OS&Y (Rising Stem) Gate Valve

In an OS&Y gate valve, the stem threads are external, located between the handwheel and the yoke. When the handwheel is turned, the stem rises out of the bonnet—the exposed thread length provides a clear visual indication of the valve position. The stem thread never contacts the process fluid.

When to choose OS&Y:

✅ Refineries, petrochemical plants, and power plants

✅ Above-ground piping where visual valve position indication is required

✅ Fire protection systems (NFPA standards mandate OS&Y for visual position confirmation)

✅ Applications where stem thread corrosion protection is critical

✅ Any application where safety and operational verification are priorities

NRS (Non-Rising Stem) Gate Valve

In an NRS gate valve, the stem threads are internal, located inside the valve body. The stem rotates in place and the gate travels up or down on the internal threads—the stem does not extend above the bonnet. The stem thread is in direct contact with the process fluid.

When to choose NRS:

✅ Underground installations and buried pipelines

✅ Confined spaces where vertical clearance is limited

✅ Waterworks (per AWWA standards)

✅ Applications where compact height is required

✅ Pipeline burial and space-constrained installations

Comparison: OS&Y vs NRS

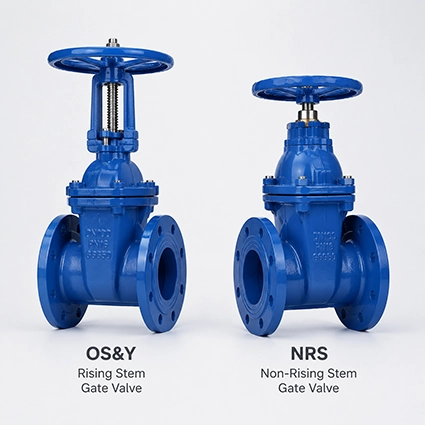

OS&Y rising stem vs NRS non-rising stem gate valve comparison

Gate Valve Materials – Choosing the Right Body and Trim

The material of a gate valve directly determines its durability and safety. Selecting the appropriate material for the specific medium can significantly extend the valve’s service life.

Common Body Materials

Material Selection by Media

The characteristics of the medium are important factors in selecting gate valves. Consider corrosiveness, abrasiveness, viscosity, particle content, heerkulka, and solid particle size.

Bixinta Biyaha & Nidaamyada Biyo-mareenka:

• ✅ Ductile iron ama soft-seat gate valves are recommended for excellent sealing performance and cost-effectiveness.

Chemical & Petroleum Systems:

• ✅ birta aan-dhalatada lahayn ama alloy steel gate valves are recommended for corrosion resistance and high-pressure resistance.

High-Temperature Steam or Boiler Pipelines:

• ✅ Carbon steel ama chrome-molybdenum steel gate valves are recommended for superior high-temperature resistance.

Corrosive Media:

• ✅ birta aan-dhalatada lahayn, duplex stainless steel, Hastelloy, ama Monel gate valves should be used for corrosion resistance.

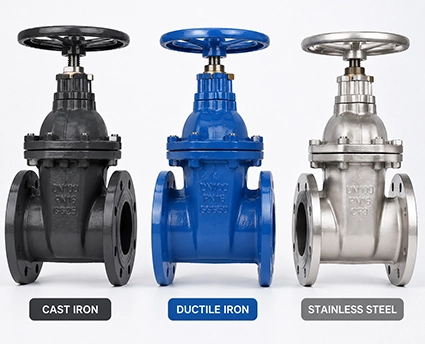

Cast iron ductile iron stainless steel gate valve material comparison

Gate Valve Standards – API 600 vs ASME B16.34

Understanding the standards that govern gate valve design and manufacturing is essential for making the right selection. Two standards are particularly important: ASME B16.34 iyo API 600.

ASME B16.34 – The Universal Valve Standard

ASME B16.34 is the foundational standard for valves in oil and gas, petrochemical, and power generation piping. It establishes pressure-temperature ratings, minimum wall thickness, material requirements, and testing criteria for flanged, threaded, and welding-end valves. It applies to gate, globe, ball, plug, butterfly, and check valves.

API 600 – The Gate Valve Standard for Oil & Gaas

API 600 is an industry-specific standard that applies only to steel gate valves for the oil and gas industry. It focuses on structural strength and sealing reliability under heavy-duty conditions. Key differences from ASME B16.34:

Selection guidance:

• ✅ Choose API 600 for gate valves involved in sulphur-containing oil and gas, high-pressure steam (>5MPa), or fire-risk areas.

• ✅ Choose ASME B16.34 for ordinary water/gas media, Class 150-300 low-pressure clean pipelines.

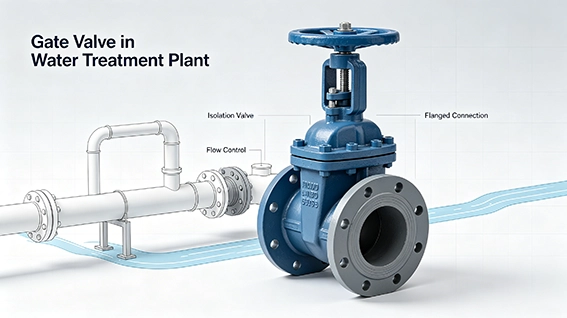

Gate valve installed in water treatment plant pipeline

Step-by-Step Gate Valve Selection Guide

Step 1: Identify the Operating Conditions

Before selecting a gate valve, determine the key parameters based on your specific application scenario and operating conditions:

• Media type: Biyo, saliid, steam, corrosive liquids, slurries, gaasaska
• Operating pressure: Maximum and minimum system pressure
• Kala duwanaanta heerkulka: Minimum and maximum operating temperature
• Installation location: Above-ground, underground, confined space, or exposed
• Operating frequency: Frequent or infrequent operation

Step 2: Choose the Stem Design (OS&Y vs NRS)

• Choose OS&Y for above-ground installations where visual position indication is required, especially in refineries, chemical plants, and fire protection systems.
• Choose NRS for underground installations, buried pipelines, and confined spaces where vertical clearance is limited.

Step 3: Select the Right Material

• Water supply / dheecaan: Ductile iron or soft-seat gate valves
• Chemical / petroleum: Stainless steel or alloy steel
• High-temperature steam / boiler: Carbon steel or chrome-molybdenum steelCorrosive media: birta aan-dhalatada lahayn, duplex, or nickel alloys

Step 4: Verify Pressure and Temperature Ratings

Check the ASME B16.34 pressure-temperature rating table for your chosen material group. For carbon steel (Group 1.1, tusaale., A216 WCB):

Ogow: Ratings decrease as temperature rises because the allowable stress of the material drops.

Step 5: Select Actuation Method

Gate valves are available in three actuation modes:

• Manual handwheel: Fudud, economical, suitable for small-diameter, low-frequency operation
• Electric actuator: Suitable for large-diameter, remote or automated control systems
• Pneumatic actuator: Fast response, commonly used in industrial sites requiring efficient shutoff

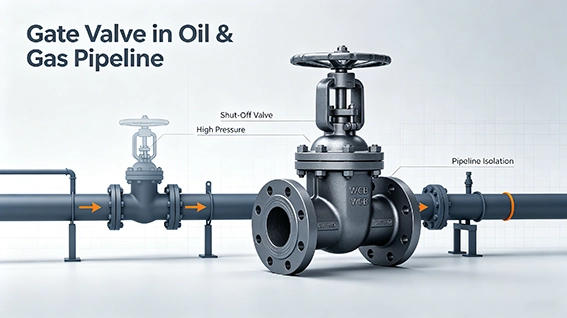

Gate valve on oil and gas pipeline

Gate Valve vs Ball Valve – When to Use Which

Gate valves and ball valves are the two most common isolation valves. Here is a quick comparison to help you decide:

Selection guidance:

• ✅Choose gate valves for on/off isolation where slow operation is acceptable and cost is a priority.
• ✅Choose ball valves for emergency shutdown (ESD), automated systems requiring fast closure, or applications requiring zero leakage (bubble-tight shut-off).

Common Mistakes to Avoid

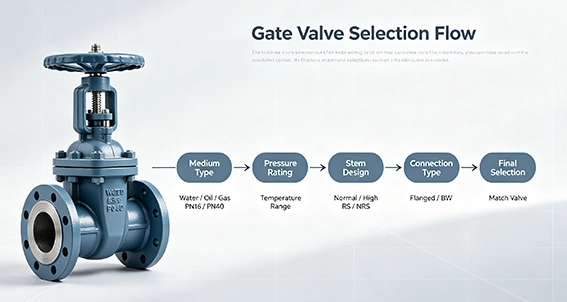

Gate valve selection decision flow chart

Frequently Asked Questions

Q1: What is the main difference between OS&Y and NRS gate valves?

A: OS&Y (Outside Screw and Yoke) gate valves have a rising stem that provides visual position indication and protects the stem threads from the process fluid. NRS (Non-Rising Stem) gate valves have a stem that rotates in place without vertical movement, making them ideal for underground and space-constrained installations.

Q2: Can gate valves be used for throttling (flow regulation)?

A: Maya. Gate valves are designed for fully open or fully closed service only. Using them for throttling can cause erosion of the seat and disk, leading to premature failure. Use globe or control valves for throttling applications.

Q3: What is the difference between API 600 and ASME B16.34 gate valves?

A: ASME B16.34 is the general valve design standard covering pressure-temperature ratings for all valve types. API 600 is a stricter, industry-specific standard for gate valves in oil and gas service, requiring heavier construction, metal seats, and more rigorous testing.

Q4: What material should I choose for a gate valve in a corrosive media application?

A: For corrosive media (acids, alkalis, biyaha cusbada leh), choose stainless steel (CF8/CF8M), duplex stainless steel, or nickel alloys such as Hastelloy or Monel. The choice depends on the specific chemical composition, xooga saarid, and temperature of the media.

Q5: How do I know if I need an API 600 or an ASME B16.34 gate valve?

A: Choose API 600 for oil and gas, refinery, high-pressure steam (>5MPa), or fire-risk applications. Choose ASME B16.34 for general industrial applications with ordinary media (biyo, hawo, low-pressure steam) iyo Fasalka 150-300 pressure ratings.

Factory production and inventory of industrial gate valves

Why Choose Our Gate Valves?

At Hal qayb oo ka mid ah Luoyang Datang Energy Tech Co., Ltd., Ltd. , we are a professional industrial valve supplier, dedicated to providing reliable flow control solutions for fire protection, HVAC, water treatment, and industrial piping systems worldwide. Our gate valves are manufactured to international standards with UL/FM, CE, iyo ISO 9001 certifications. With over 10 years of experience, a modern facility of 80,000 m², iyo 200+ professional employees, we serve customers in 10+ countries with quality products, competitive pricing, and reliable delivery.

Our gate valve product range includes:

• ✅ OS&Y Gate Valves / OS&Y – API 600, ASME B16.34, with visual position indication
• ✅ NRS Gate Valves / NRS – Compact design for underground and confined spaces
• ✅ Soft-Seal Gate Valves – Zero leakage for water supply applications
• ✅ Metal-Seal Gate Valves – High-temperature and wear-resistant for severe service
• ✅ Multiple Materials – WCB carbon steel, ductile iron, bir aan lahayn, and alloy steel

Contact us today for expert gate valve selection advice, product specifications, and factory-direct quotes.
