How many ways to connect HDPE Drain Pipes?

In modern building drainage systems, high-density polyethylene (HDPE) drain pipes have become the first choice for more and more projects due to their excellent corrosion resistance, light weight, long service life, and excellent noise reduction properties. However, the core of an efficient, long-lasting, leak-free drainage system lies not only in the quality of the pipe itself, but also in the subtle application of connection technology. Different connection methods, as for the piping system to give different “joints”, determines its installation efficiency, sealing performance, maintenance convenience and even the reliability of the overall system and the application of the scene.The connection methods of HDPE Silent Drainage Pipe show a remarkable diversity, and each technology gathers unique engineering wisdom to cope with the complex and changing application requirements.

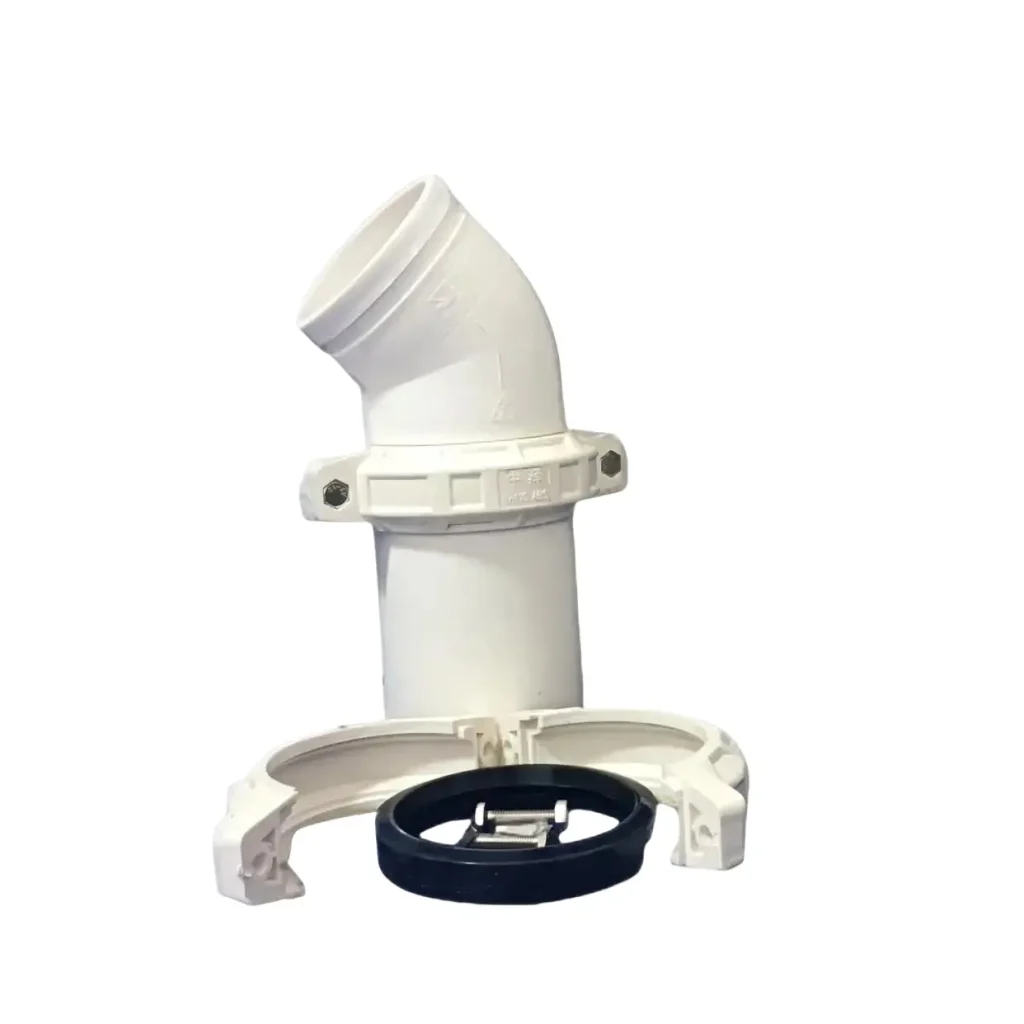

1.HDPE groove connection

Grooved connection HDPE drainage system pipe fittings: Produced with high-density polyethylene pipe material, grooved ABS pressure ring (clamp) and C-type EPDM rubber ring flexible connection, mechanical connection, easy to install, not affected by climate and environment. Flat butt joint, no damage required for maintenance, easy to disassemble and assemble straight up and down, reusable. For dn110 and dn160 risers, hollow inner spiral tubes can be used for better noise reduction.

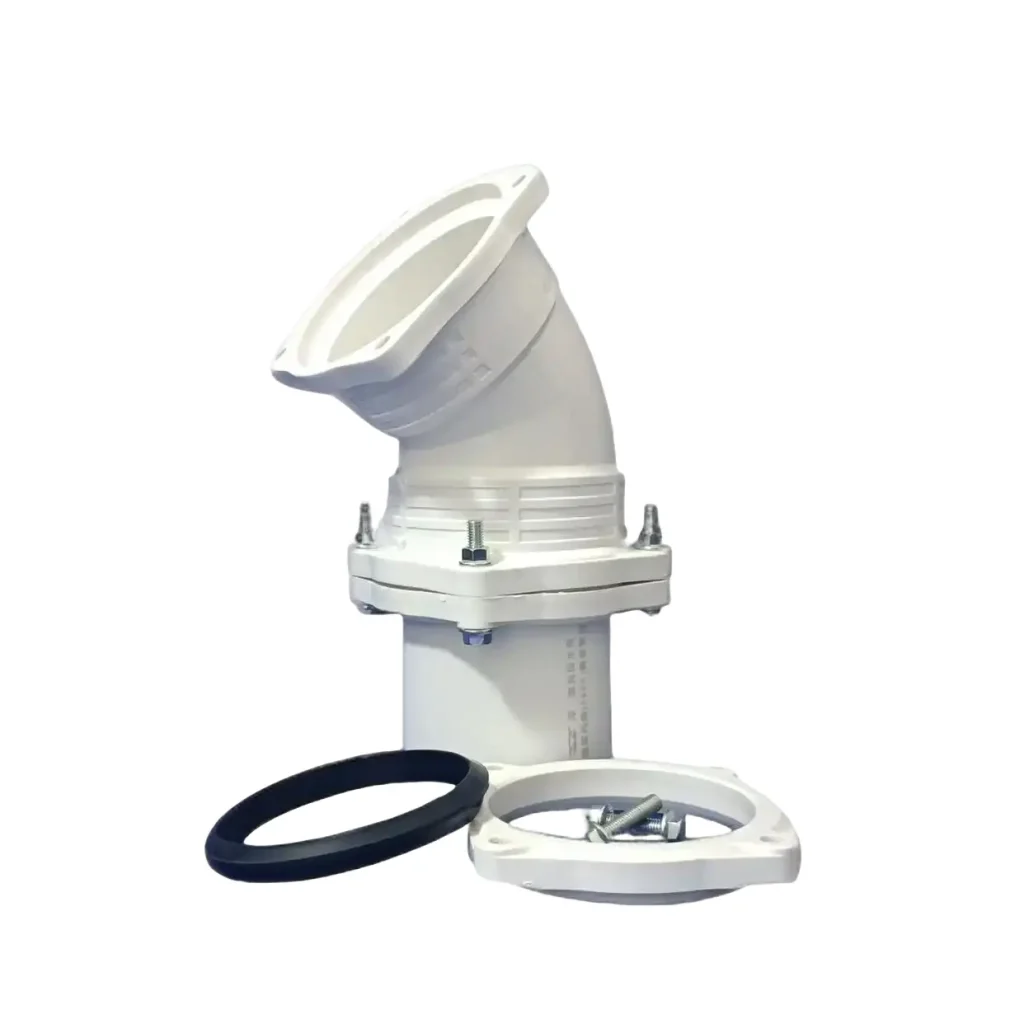

2.HDPE flange connection

Flanged connection HDPE pressure drainage system pipe fittings: Made of high-density polyethylene pipe material, flanged flexible socket with stainless steel anti-disengagement ring connection, mechanical connection, easy to install, not affected by climate and environment. Maintenance requires no damage, is easy to disassemble and assemble, and can be reused.

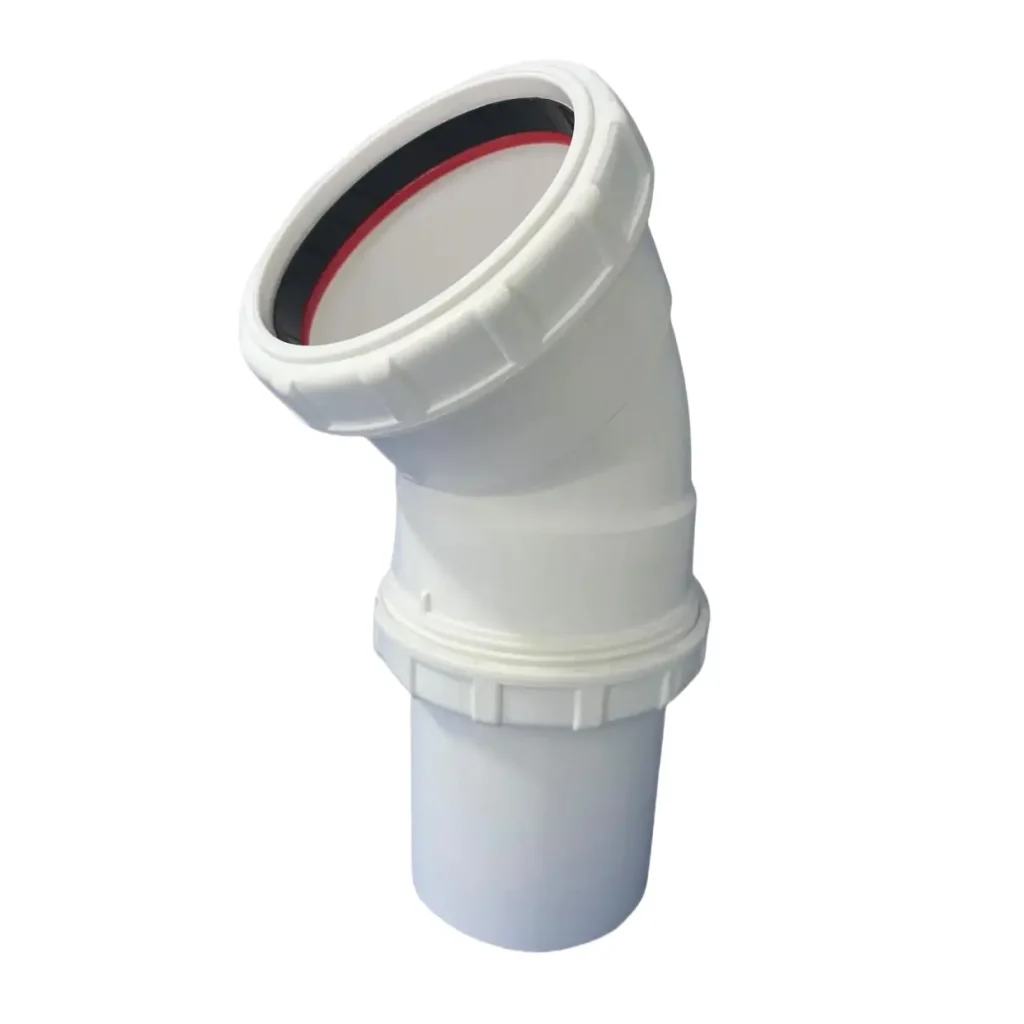

3. HDPE screw cap type connection

Threaded cap type socket connection HDPE drainage system: The pipe fittings are made of high-density polyethylene pipe material, and the fittings are flexibly connected with threaded cap, ABS locking ring and O-ring silicone rubber, with extensibility function, belonging to mechanical connection, no more special equipment and tools are required for installation, simple and convenient.

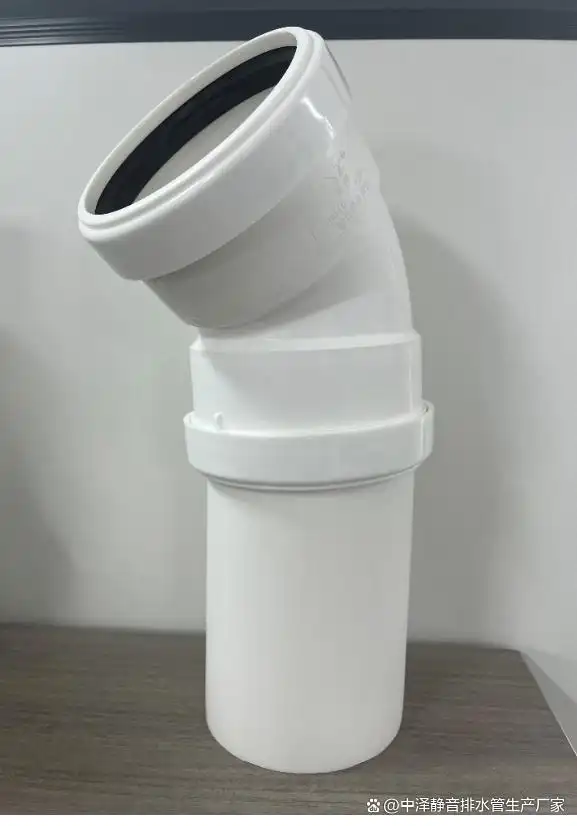

4. HDPE fixed cover type connection

Fixed cap flexible socket connection HDPE silent drainage system pipe fittings: Made of high-density polyethylene pipe material, the cap and rubber ring are fixed at the socket end of the pipe fitting, the rubber ring is made of ethylene propylene diene monomer rubber, when in use the pipe can be directly inserted into the socket end of the pipe fitting, flexible socket connection has telescopic function, belongs to mechanical flexible connection, is difficult to install Auxiliary equipment is required and the rubber ring is prone to misalignment.

5. HDPE hot-melt socket connection

Hot-melt socket connection HDPE drainage system pipe fittings: produced with high-density polyethylene pipe material, when installed, use a hot-melt socket welding machine when needed, there is no flanging of the molten material at the welding site, and the step and ring blockage formed by butt welding is solved. The interface can achieve zero leakage, the system has pressure-bearing capacity and can be used for high-rise rainwater and pre-buried use.

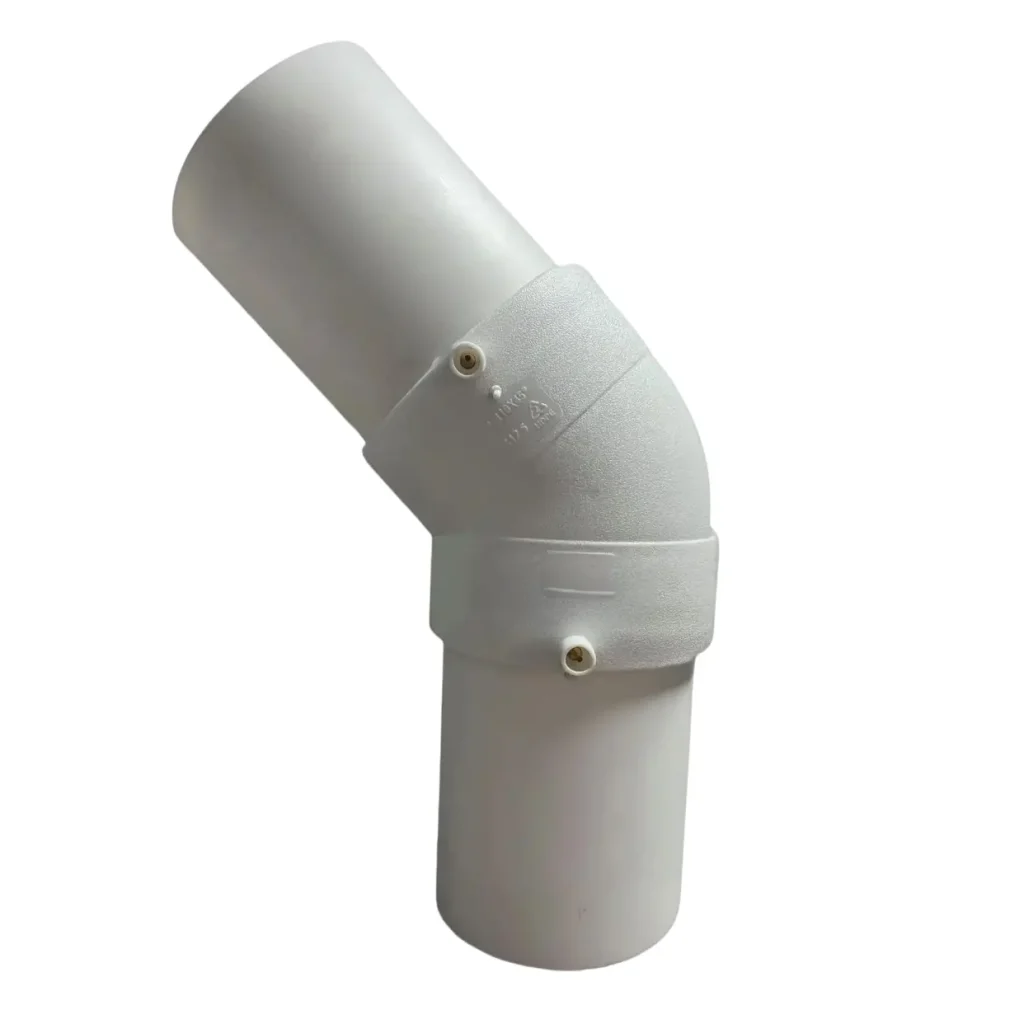

6. HDPE electrofusion connection

Electrofusion connection HDPE drainage system pipe fittings: Produced with high-density polyethylene PE80 grade pipe material, installation requires professional electrofusion welding machine, simple and convenient, no flanging of molten material at the welding site, solves step and ring blockage formed by butt welding, the interface can achieve zero leakage, the system has pressure-bearing capacity.

There are many ways to connect HDPE silent drainage pipes, and the choice mainly depends on the specific engineering requirements, pipe size and material, etc. In practical application, the appropriate connection method can be selected according to the specific situation to ensure the sealing and stability of the connection.
