এই ব্রাস পায়ের পাতার মোজাবিশেষ ফিটিং আপনার পায়ের পাতার মোজাবিশেষ ফিট হবে? আকার এবং থ্রেড ম্যাচিং ব্যাখ্যা করা হয়েছে

Ordering a brass hose fitting is not simply about choosing the right connector. A fitting that looks correct may still fail if the hose size, barb diameter, or thread standard does not match. Every year, countless buyers open a package, thread a fitting onto a hose, and watch water or air leak from a joint that “looked right” on the screen. The problem is almost never the quality of the brass itself. It is a mismatch between what the hose actually measures and what the fitting is designed to connect.

This article walks through the exact measurements, thread standards, and selection logic you need before you place an order. No guesswork. No returns.

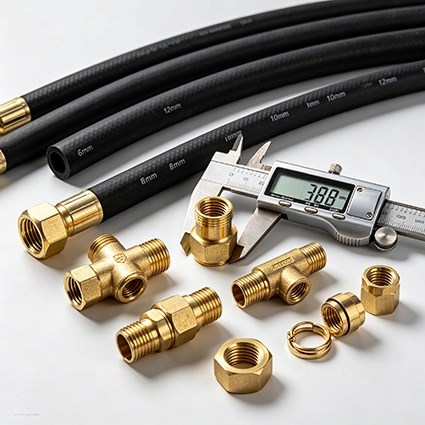

Brass Hose Fittings

Why Choosing the Correct Brass Hose Fitting Size Matters

A brass hose fitting that is one size off will not “sort of work.” Brass does not compress, flex, or forgive. A fitting that is slightly too large will not seat. A fitting that is slightly too small will cut into the hose wall or slide under pressure.

Brass hose fitting আকার is the single most important variable in the entire selection process.

Here is what happens when the size is wrong:

Problem	কারণ
Leakage	Fitting OD does not match hose ID
Difficult installation	Barb too large or too small for the hose wall
Reduced flow	Internal diameter restriction at the fitting
Connection failure	Thread does not engage properly or backs out under vibration

Purchase reminder：Never select a fitting based only on how the hose looks on the outside. The outer diameter tells you almost nothing about the size fitting you need. Measure the inside diameter first, then match the fitting to that number.

Brass Hose Fitting in Plumbing

Understand Hose Size Before Selecting a Brass Hose Fitting

There are three measurements you need. Most buyers skip one of them, and that is where the mismatch begins.

1. Hose ID (Inside Diameter)

This is the number that matters most. The barb of a brass hose fitting is sized to the hose ID, not the OD. A 1/2″ hose barb goes into a hose with a 1/2″ inside diameter. A 1/2″ hose from one manufacturer may have a different outside diameter than a 1/2″ hose from another, but the inside diameter is the standard the fitting is built around.

2. Hose OD (Outside Diameter)

The OD matters for clamp selection, not fitting selection. A hose clamp needs to sit flush around the outside of the hose after the barb is inserted. If the OD is measured incorrectly, the clamp will either not close or crush the hose.

3. Fitting Connection Size

This is the size printed on the fitting itself. It refers to the hose ID the barb is designed for, or the thread size of the threaded end. A fitting labeled “1/2″ barb × 1/2″ NPT” has a barb that fits a 1/2″ ID hose and a 1/2″ NPT male thread on the other end.

Here is a reference table to orient yourself. Always verify against the actual hose in hand — manufacturer tolerances vary.

Hose ID	Typical Application	Common Brass Fitting Size
1/4″	Small air lines, জ্বালানী লাইন	1/4″ barb
3/8″	Water lines, pneumatic systems	3/8″ ফিটিং
1/2″	General hose connection	1/2″ brass fitting
3/4″	Industrial water hose	3/4″ ফিটিং
1″	Heavy-duty applications	1″ hose fitting

The barb-to-hose-ID relationship is where most sizing errors happen. A 3/8″ barb will not seal in a 1/2″ hose, no matter how tight the clamp is. The brass will not deform to fill the gap. The hose will not shrink to close the space. The only outcome is a leak.

how to measure hose size for brass hose fitting

Brass Hose Fitting Types and How They Match Different Hoses

Not every hose connection is the same, and not every fitting is designed for the same job. The three main categories you will encounter are barb fittings, থ্রেডেড জিনিসপত্র, এবং কাপলিংস.

1. Brass Barb Fittings

কbrass barb fitting slides into the hose and grips the inner wall. The angled ridges on the barb create resistance against pull-out, and a hose clamp compresses the hose wall against those ridges to complete the seal.

বৈশিষ্ট্য	বিস্তারিত
সংযোগ পদ্ধতি	Hose barb + hose clamp
Best for	Flexible hose, rubber hose, PVC hose
ইনস্টলেশন	Push-in, clamp, done
Removable	হ্যাঁ, with clamp removal
Typical pressure range	Low to medium

Barb fittings are the workhorses of water, বায়ু, and fuel hose systems because they are fast, নির্ভরযোগ্য, and require no special tools beyond a screwdriver or clamp pliers.

2. Threaded Brass Hose Fittings

A threaded fitting does not grip the hose directly. Instead, one end connects to the hose via a barb or compression mechanism, and the other end threads into a port, adapter, or another fitting.

Threaded connections are the choice when the system needs to be disassembled for maintenance, when the connection point is a rigid port on a pump or valve, or when the hose must be replaced without cutting into a permanent assembly.

3. Brass Hose Couplings

কbrass hose coupling connects two hoses together, or connects a hose to a threaded port, using a quick-connect or threaded interface. The defining feature is that a coupling joins two elements rather than terminating a single hose.

A garden hose coupling joins two lengths of garden hose. A pneumatic coupling joins an air hose to a tool. কbrass hose connector is the broader category term that covers any fitting that makes a hose-to-something connection.

Internal Link: For a deeper look at coupling types and configurations, see our ব্রাস মেশিন কাপলিং গাইড.

Brass Hose Fitting Types

How to Choose the Right Thread for Brass Hose Fittings

If the barb side of the fitting is about hose ID, the threaded side is abouthose fitting thread মান. Get this wrong, and the fitting will not thread in. It may look like it starts, because some thread standards are visually similar, but forcing it will damage both the fitting and the port.

Three thread families dominate the brass hose fitting world:

থ্রেড টাইপ	Primary Region	মূল বৈশিষ্ট্য
এনপিটি (জাতীয় পাইপ টেপার)	North America (U.S., Canada)	60° thread angle, tapered, flat crests
বিএসপি (ব্রিটিশ স্ট্যান্ডার্ড পাইপ)	Europe, এশিয়া, আফ্রিকা, অস্ট্রেলিয়া	55° thread angle, rounded crests
Metric	Europe, machinery, automotive	Measured in millimeters, parallel or tapered

NPT is the default in the United States and Canada. BSP is the default in most of the rest of the world. A brass hose fitting made for the North American market will almost certainly have NPT threads. A fitting sourced from Europe or Asia will likely carry BSP threads unless it was specifically manufactured for export to North America.

This is not a quality difference. It is a regional standard difference, and it is the single most common reason buyers end up with fittings that will not install.

NPT vs BSP: Which Thread Should You Choose?

The question is not which is “better.” The question is which standard the existing port or mating fitting uses.

	এনপিটি	বিএসপি
স্ট্যান্ডার্ড	American (ANSI B1.20.1)	British (আইএসও 7/1, আইএসও 228/1)
Thread angle	60°	55°
Crest and root	Flat	Rounded
Taper	Tapered by default (এনপিটি)	Straight by default (বিএসপিপি); tapered is BSPT
Primary market	USA, Canada	Europe, এশিয়া, most of the world
Threads per inch (1/4″)	18	19
Interchangeable?	না	না

The 60° versus 55° difference is not cosmetic. An NPT male thread will not seat properly in a BSP female port. It may start by hand for a turn or two, which is exactly what makes this mistake so dangerous. Forcing it further damages the threads on both sides. The connection will never seal, and the port may be ruined.

Internal Link: For the complete technical comparison, including thread pitch charts and sealing methods, read এনপিটি বনাম বিএসপি থ্রেড: কোন থ্রেড আপনি ব্রাস ফিটিং জন্য চয়ন করা উচিত?

NPT and BSP thread comparison for brass hose fittings

Brass Hose Fitting Selection by Application

Different applications demand different fittings. A fitting that works flawlessly in a garden hose system may fail in a pneumatic line, not because the brass is different, but because the pressure, media, and connection requirements are different.

আবেদন	Recommended Fitting Type	মূল বিবেচনা
Garden hose	Brass connector / coupling	জারা প্রতিরোধের, ease of hand-tightening
Air hose	Barb or threaded fitting	চাপ রেটিং, vibration resistance
Water system	Brass hose adapter	সীসা মুক্ত সম্মতি, thread seal compatibility
Industrial equipment	Heavy-duty brass coupling	চাপ রেটিং, তাপমাত্রা পরিসীমা
প্লাম্বিং	Threaded brass fitting	NPT or BSP match, sealing method

Industrial hose fittings এবংwater hose fittings are not the same product category even when they share a thread standard. An industrial fitting is built for higher pressure cycles and often for a specific media. A water hose fitting is built for potable water compatibility and corrosion resistance over years of exposure.

Air hose fittings sit in a middle ground. They need to handle pressure spikes and vibration without loosening. A barb fitting with a properly sized clamp handles air well in low-pressure systems. A threaded fitting with thread sealant is the better choice when the connection point is a rigid port.

Brass Hose Fitting in Garden hose

Common Mistakes When Buying Brass Hose Fittings

These are the mistakes that generate returns, leak complaints, and wasted project time. Each one is avoidable with a measurement and a standard check.

Mistake	Result
Ignoring hose ID	Poor connection, leak at the barb
Choosing wrong thread standard	Cannot install, damaged threads
Mixing NPT and BSP	Leakage, stripped threads
Ignoring pressure rating	Safety risk, fitting failure under load
Measuring hose OD instead of ID	Wrong barb size ordered
Not accounting for hose material	Barb does not grip correctly

The hose material matters more than most buyers expect. A barb fitting that grips a soft PVC hose firmly may struggle to insert into a reinforced rubber hose with a thick wall. A fitting designed for a rigid hose may not compress enough to seal against a flexible one.

Always match the fitting to both the hose dimensions and the hose material.

Brass Hose Fitting in Air Hose

A Simple Checklist Before Ordering Brass Hose Fittings

Run through this before you add anything to a cart. It takes two minutes and prevents the entire cycle of wrong-part delivery and return.

Check Item	Confirm
Hose inner diameter	________
Hose material	________
Connection type	Barb / Thread / কাপলিং
Thread standard	এনপিটি / বিএসপি / Metric
Thread size	________
কাজের চাপ	________
মিডিয়া (জল / বায়ু / জ্বালানী)	________
পরিমাণ	________

If you can fill every line, you can order with confidence. If any line is blank, stop and measure before proceeding.

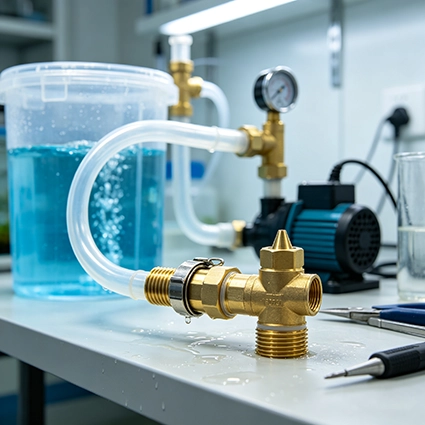

Brass Hose Fitting in Water System

FAQ

প্রশ্ন ১: How do I know what size brass hose fitting I need?

Measure the inside diameter of the hose first. That number tells you the barb size. Then determine the thread size and standard on the connection point. A fitting is defined by both ends, not just one.Brass hose fitting size is always a two-part answer: hose end size + thread end size.

প্রশ্ন ২: Are NPT and BSP brass hose fittings interchangeable?

না. NPT uses a 60° thread angle with flat crests. BSP uses a 55° thread angle with rounded crests. The pitch differs in most sizes as well. They may start by hand for a turn or two, but they will not seal and will damage threads if forced. There is no adapter that makes them “work” without a proper conversion fitting.

Q3: What is the difference between a brass hose connector and coupling?

কbrass hose connector is a broad term for any fitting that connects a hose to something. A coupling is a specific type of connector that joins two hoses or a hose to a port. In practice, the terms overlap, but when a supplier lists both, the connector is the general category and the coupling is the specific joining component.

Q4: Can brass hose fittings be used for high-pressure applications?

Brass is a strong material, but the pressure rating depends on the fitting design, the hose, and the connection method. A barb fitting with a clamp typically handles low to medium pressure. Threaded fittings with proper sealant can handle higher pressures. Always check the manufacturer’s pressure rating and never exceed it. For very high pressure, stainless steel or specialty fittings are the safer choice.

প্রশ্ন5: How do I measure a hose before ordering fittings?

Use calipers or a hose ID gauge. Do not measure the outside. Insert the gauge into the hose end and read the inside diameter. If the hose end is distorted from previous clamping, cut a clean section and measure that. For thread measurement, use a thread pitch gauge and a caliper, or compare against a known thread sample.

Brass Hose Fitting in Industrial Equipment

Need the Right Brass Hose Fitting for Your Project?

Tell us four things:

1. Hose size (inside diameter)
2. Thread standard (এনপিটি, বিএসপি, or metric)
3. আবেদন (জল, বায়ু, জ্বালানী, শিল্প)
4. পরিমাণ

লুওয়াং দাতাং এনার্জি টেক কো., লিমিটেড can help recommend suitable brass hose fittings for your exact setup. No guessing, no wrong parts.

Contact us with your specifications and we will match the fitting to your hose.
