Product Overview

TheNRS Ductile Iron Resilient Seated Gate Valve is a high-performance valve designed for reliable isolation service in water supply, wastewater treatment, және өнеркәсіптік құбыр жүйелері. Featuring a ductile iron body and an EPDM rubber-encapsulated gate, it ensures bubble-tight, zero-leakage shut-off in bi-directional flow applications. Its non-rising stem design makes it an ideal choice for underground installations, valve chambers, and compact spaces with limited vertical clearance, offering a reliable and cost-effective solution for water distribution, суару, and general industrial use.

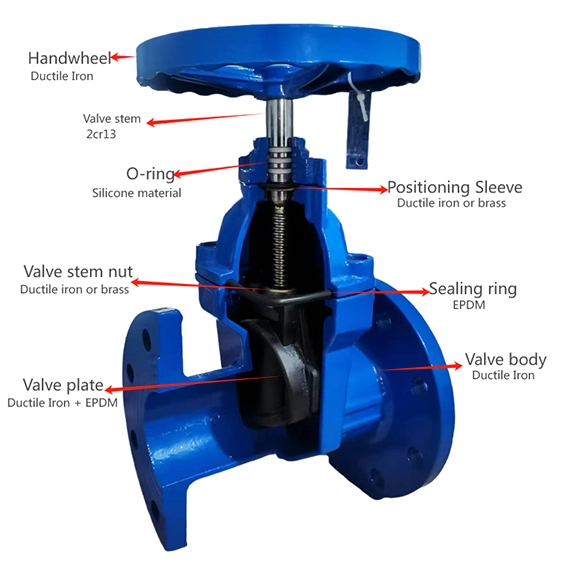

NRS ductile iron resilient seated gate valve with EPDM wedge

Technical Specifications

NRS ductile iron resilient seated gate valve with EPDM wedge

Негізгі мүмкіндіктер

1. Resilient Wedge / Soft-Seal Design – Zero Leakage
2. NRS (Non-Rising Stem) Design – Space Saving
3. Ductile Iron Body – Superior Strength & Impact Resistance
4. Flanged Connection – EN 1092-2 PN10/PN16
5. Fusion-Bonded Epoxy Coating – Superior Corrosion Protection
6. Wide Size Range – DN50 to DN600
7. OEM / ODM / OBM Customization Support
8. Bi-Directional Sealing – Flexible Installation

Қолданбалар

1. Municipal Water Supply Systems
2. Wastewater Treatment Plants
3. Irrigation Systems
4. HVAC жүйелері
5. Fire Protection Systems

NRS ductile iron resilient seated gate valve with EPDM wedge

Қаптама және жөнелту

Packing depends on the product type and quantity. Options include carton boxes or wooden crates with proper protection for flange faces. Shipment can be arranged by sea, темір жол, ауа, or as per customer’s request.

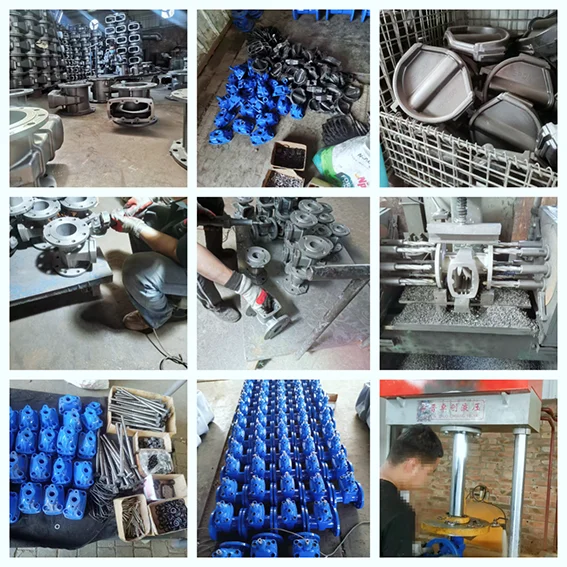

Компания профилі

LUOYANG DATANG ENERGY TECH CO., LTD is a professional industrial valve supplier, dedicated to providing reliable flow control solutions for fire protection, HVAC, суды өңдеу, және бүкіл әлем бойынша өнеркәсіптік құбыр жүйелері. All products are manufactured to international standards with UL/FM, CE, және ISO 9001 certifications. With over 10 years of experience, a modern facility of 80,000 m², және 200+ professional employees, we serve customers in 10+ countries with quality products, competitive pricing, and reliable delivery.

Төлем шарттары

Т/Т, Қарағанда L/C, Вестерн юнион, PayPal, Apple Pay, Google Pay, Credit Card, т.б.

NRS ductile iron resilient seated gate valve with EPDM wedge

 Жиі қойылатын сұрақтар | FAQ

1-тоқсан: What is the difference between NRS gate valve and OS&Y gate valve?

А: The NRS (concealed stem) gate valve does not raise or lower the valve stem during operation and is suitable for underground installations and valve wells with limited clearance. The valve stem of the OS&Y (rising stem) gate valve rises and falls during operation, providing a visual indication of the valve position. It is suitable for occasions on the ground where visual confirmation of the switch status is required.

Q2: What is the difference between elastic wedge gate valve (soft seal) and hard seal gate valve?

А: The gate plate of the elastic wedge gate valve (soft seal) is entirely covered with EPDM rubber, providing a zero-leakage seal (bubble level) and suitable for water, sewage and mild chemicals. Hard-sealed gate valves (metal-to-metal) are suitable for high temperatures (>150°C) and abrasive media, but have higher leakage rates. For most water supply and HVAC applications, resilient wedge gate valves are the most cost-effective option.

3-тоқсан: What is the maximum working pressure and temperature of this gate valve?

А: The standard configuration provides two pressure levels, PN10 and PN16, with a temperature range of -10°C to +80°C. For higher temperatures or pressures, please contact our sales team for custom options.

4-тоқсан: Is this valve suitable for drinking water systems?

А: Иә. This valve uses lead-free EPDM sealing material, meets drinking water safety standards, and can be safely used in drinking water distribution systems.

5-сұрақ: What is the minimum order quantity?

А: The minimum order quantity for standard orders is 1 piece. Customization services (өлшемі, түс, packaging, logo) please contact our sales team for details.
