Visão geral do produto

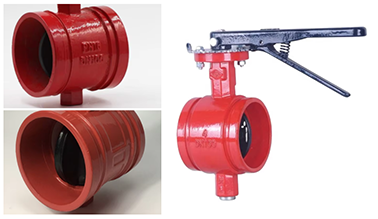

OIndustrial Signal Manual Grooved Butterfly Valve is a specialized control valve designed for fire protection systems, automatic sprinkler systems, and fire hydrant networks. Manufactured from high-strength ductile iron (QT450-10) with a fully EPDM-encapsulated disc, this valve provides bubble-tight shut-off and bidirectional sealing with zero leakage. The integrated signal feedback device converts the valve’s open/closed status into electrical signals (DC24V/3A), enabling real-time monitoring from the fire control center to prevent accidental valve closure that could compromise system safety. Available in sizes from DN50 to DN1200 (2″ to 48″) with grooved end connections compliant with AWWA-C606 standards, this valve offers fast, tool-free installation — up to 3 times faster than flanged connections. This valve is the trusted choice for fire protection, fornecimento de água, chemical, comida, and industrial piping systems requiring both flow control and supervisory signaling.

Grooved Butterfly Valve | Sistema de proteção contra incêndio

Especificações Técnicas

Grooved Butterfly Valve | Sistema de proteção contra incêndio

Principais recursos

1. EPDM Fully Encapsulated Disc – Bubble-Tight Sealing
2. Integrated Signal Feedback – Real-Time Status Monitoring
3. Grooved End Connection – Fast, Tool-Free Installation
4. Worm Gear Self-Locking Operation – Safe & Reliable
5. Bi-Directional Sealing – Flexible Installation
6. Wide Size Range – DN50 to DN1200
7. Multiple Material Options – Customizable
8. OEM / Suporte à personalização ODM

Working Principle

The signal grooved butterfly valve operates through a simple yet reliable mechanism integrating flow control and status monitoring:

1. Normal Operating State: The valve remains fully open (90°) to ensure unobstructed water flow in the fire protection network. The worm gear self-locking mechanism maintains the valve position, preventing accidental closure due to pressure fluctuations or external impacts.
2. Flow Control Operation: To close the valve for maintenance or isolation, turn the handwheel clockwise. The worm gear drives the disc to rotate 90° to the fully closed position. Reverse rotation opens the valve.
3. Signal Feedback: The valve’s internal cam mechanism activates micro switches at specific positions: fully open (90°) triggers the “Open” signal, fully closed (0°) triggers the “Close” signal. If the valve is closed 25% (1/4 of full opening), the signal device triggers an alarm to the fire control center.
4. Emergency Locking: The handwheel features a locking hole that allows a padlock to secure the valve in position, preventing unauthorized operation.

Grooved Butterfly Valve | Sistema de proteção contra incêndio

Aplicações

1. Automatic Fire Sprinkler Systems
2. Fire Hydrant Supply Systems
3. Abastecimento de Água Industrial & Drenagem
4. Químico & Petrochemical Plants
5. Food & Beverage Processing

Embalagem e Expedição

A embalagem depende do tipo e quantidade do produto. Options include carton boxes or wooden crates with proper protection for grooved ends and signal device. O envio pode ser organizado por via marítima, ferrovia, ar, ou conforme solicitação do cliente.

perfil de companhia

Luoyang Datang Energia Tech Co., Ltda é um fornecedor profissional de válvulas industriais, dedicada a fornecer soluções confiáveis ​​de controle de fluxo para proteção contra incêndio, AVAC, tratamento de água, e sistemas de tubulação industrial em todo o mundo. All products are manufactured to international standards with CE and ISO 9001 certificações. Com mais 10 anos de experiência, uma moderna instalação de 80,000 m², e 200+ funcionários profissionais, atendemos clientes em 10+ países com produtos de qualidade, preços competitivos, e entrega confiável.

Condições de pagamento

T/T, L/C à vista, Western Union, PayPal, Apple Pague, Google Pay, Cartão de crédito, etc..

Grooved Butterfly Valve | Sistema de proteção contra incêndio

Perguntas frequentes

1º trimestre: What is the difference between a supervised butterfly valve and a standard butterfly valve?

UM: Supervised butterfly valves feature a built-in microswitch and signal feedback mechanism that converts the valve’s open/closed status into an electrical signal for transmission to the fire control center. Standard butterfly valves offer only manual flow control. Supervised butterfly valves are critical components in fire protection systems, meeting code requirements for valve status monitoring.

2º trimestre: What are the advantages of grooved connections?

UM: Grooved connections eliminate the need for welding, rosqueamento, or hot work, allowing for rapid installation using just two couplings. Installation is three times faster than flanged connections, requires fewer bolts, and takes up less space. They are particularly suitable for fire protection projects with tight schedules, space constraints, ou “no hot work” policies.

3º trimestre: What media and temperatures are EPDM seals suitable for?

UM: EPDM (Ethylene Propylene Diene Monomer) seals are suitable for water, clean water, and mild chemicals, with an operating temperature range of -20°C to +80°C. EPDM offers excellent resistance to aging, ozone, and weathering, making it the standard choice for fire protection systems and water treatment applications.

4º trimestre: How does the signal feedback mechanism work?

UM: The valve features a built-in cam linked to a microswitch. An “Open” signal is triggered when fully open (90°), and a “Closed” signal is triggered when fully closed (0°). If the valve is inadvertently closed by 25% (one-quarter of its full travel), the signaling device transmits an alarm signal to the fire control center. The output is a DC24V/3A passive switch signal.

Q5: What is the difference between worm gear operation and lever (handle) operation?

UM: Worm gear operation utilizes a gear reduction mechanism to provide mechanical advantage, resulting in lower operating torque and easier, smoother handling; it is suitable for large-diameter valves (DN100 and above). The worm gear mechanism includes a self-locking function to prevent accidental valve closure. Lever operation is simpler and more cost-effective, making it suitable for small-diameter valves (DN100 and below).
