Product Overview

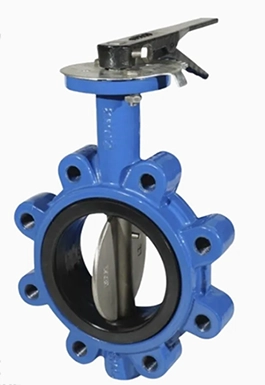

Этот lever-operated lug butterfly valve is a high-performance, bi-directional flow control device designed for reliable on/off and proportional flow control in industrial piping systems. This valve is suitable for a wide range of applications including water treatment, ОВК, сточные воды, textile, chemical, food processing, and oil & gas industries.

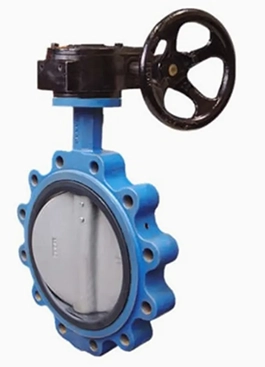

Durable lug butterfly valve

Technical Specifications

Durable lug butterfly valve

Ключевые особенности

1. 100% Bi-Directional Bubble-Tight Sealing
2. Lug Type Design for Dead-End Service
3. Double Shaft Design for Minimal Head Loss
4. Electrostatic FBE Coating for Superior Corrosion Protection
5. ИСО 5211 Direct Actuator Mounting
6. Versatile Material Options – EPDM / НБР / Plastic Seats
7. Wide Application Compatibility
8. Customizable Color and Actuation

Приложения

1. Water Treatment Systems
2. Системы отопления, вентиляции и кондиционирования
3. Масло & Газопроводы
4. Industrial Process Lines
5. Fire Protection Systems

Durable lug butterfly valve

Упаковка и отгрузка

Packing depends on the product type and quantity. Options include bundle packing, wooden crates, or carton boxes with proper protection for flange faces. Shipment can be arranged by sea, железная дорога, воздух, or as per customer’s request.

Условия оплаты

Т/Т, Аккредитив по предъявлении, Western Union, PayPal, Apple Pay, Google Pay, Credit Card, и т. д..

Профиль компании

LUOYANG DATANG ENERGY TECH CO., LTD is a professional industrial valve supplier, dedicated to providing reliable flow control solutions for fire protection, ОВК, water treatment, and industrial piping systems worldwide. All products are manufactured to international standards with UL/FM, CE, и ИСО 9001 certifications. With over 10 years of experience, a modern facility of 80,000 m², и 200+ professional employees, we serve customers in 10+ countries with quality products, competitive pricing, and reliable delivery.

Durable lug butterfly valve

FAQ

1 квартал: What is the difference between wafer-style and lug-style butterfly valves?

А: Wafer-style butterfly valves are clamped between two flanges using through-bolts and cannot isolate flow from a single side. Lug-style butterfly valves feature threaded lugs on both sides, allowing each flange to be bolted independently; this supports end-of-line service (dead-end isolation), enabling the removal of downstream piping for maintenance without draining the entire system. Lug-style valves are better suited for applications requiring regular maintenance.

2 квартал: What are the differences between EPDM, НБР, and plastic seats?

А: EPDM (Ethylene Propylene Diene Monomer) is resistant to water and steam, with a maximum temperature of +130°C, and is cost-effective; НБР (Nitrile Butadiene Rubber) is resistant to oil and fuel, with a maximum temperature of +100°C; plastic seats withstand high temperatures up to +220°C and are suitable for steam and high-temperature media. The choice depends on your specific medium and temperature requirements.

Q3: Can this butterfly valve be used for steam?

А: Да. For steam applications, the plastic seat option is recommended, as it supports temperatures up to +220°C. EPDM seats are also suitable for saturated steam (up to +130°C). Please specify the steam operating conditions when placing your order to ensure the correct seat configuration.

Q4: Can lug-style butterfly valves be fitted with electric or pneumatic actuators?

А: Да. The valve’s top flange complies with the ISO 5211 стандартный, allowing for the direct mounting of electric or pneumatic actuators without the need for additional intermediate adapters. This simplifies automation upgrades and on-site installation.

Q5: What are the advantages of FBE epoxy coating?

А: Fusion-Bonded Epoxy (ФБЕ) coating, applied via electrostatic spraying and heat curing, offers excellent adhesion, коррозионная стойкость, и износостойкость. Coating both internal and external surfaces ensures reliable long-term operation in humid, corrosive, or harsh environments, extending the service life and reducing maintenance frequency.
