Founga ke fili ai 'a e ngaahi paipa HDPE ki he ngaahi poloseki 'o e ma'u'anga vai .

Choosing the right Paipa HDPE for a water supply project involves more than picking a diameter off a spec sheet. Engineers and procurement teams routinely face a stack of variables—flow demand, operating pressure, burial depth, jointing method, and local standards—that all feed into one decision: what exactly goes into the ground? This guide walks through the key factors you should weigh when specifying HDPE pipes for water supply systems, from initial project requirements through to the final purchase order.

HDPE pipes for water supply project

What Should You Consider When Choosing an HDPE Pipe?

Before diving into calculations, step back and look at the full picture. Most specification errors happen not because someone got the math wrong, but because they treated pressure, taiamita, and installation as separate problems instead of one integrated system.

Quick Selection Overview

The most important factors are fakamālohi, taiamita, SDR, installation conditions, and applicable standards. Get those five right, and the rest usually falls into place.

1. Understand the Water Supply Project Requirements

Every project starts with a simple question: what is this pipeline actually doing? A municipal distribution network and an agricultural irrigation main have completely different load profiles, design lives, and risk tolerances. Misidentify the application early, and you will either over-specify (wasting budget) or under-specify (creating liability).

Identify the Application

Hangē ko 'eni, a long-distance HDPE water transmission line running 15 km between a treatment plant and a storage reservoir will prioritize pressure class and joint integrity over everything else. A residential estate developer, ‘i he tafa‘aki ‘e tahá ., is usually optimizing for installed cost per meter while still meeting the local water authority’s minimum pressure requirements.

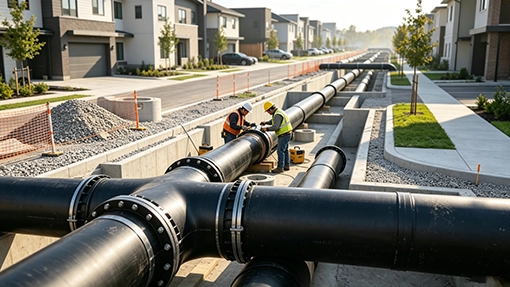

HDPE pipe in Residential distribution

2. Choose the Right HDPE Pipe Material

Not all polyethylene is created equal. For pressure water applications, the conversation almost always centers on material grade.

Kalasi Naunau: PE100

PE100 HDPE pipes are widely specified for pressure water supply systems where long-term strength and reliability matter. Ko e “100” refers to the Minimum Required Strength (FEFINE MALI) ʻo 10.0 MPa, which translates directly into higher allowable operating pressures and thinner walls for the same pressure class compared to lower grades.

That said, do not assume PE100 is automatically the right call for every job. If the project specification explicitly calls for PE80, or if you are dealing with a gravity-fed irrigation line where pressure never exceeds 4 pā, PE100 might be unnecessary over-engineering. Always check the tender documents.

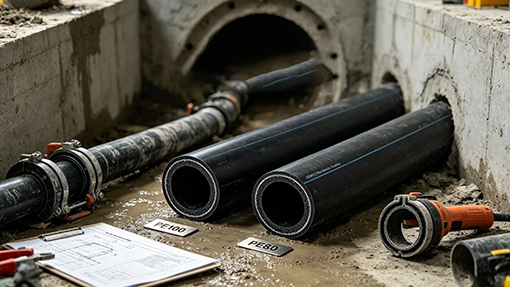

PE100 vs PE80

3. Determine the Required Pressure Rating

This is where specifications get won—or lost. Pressure rating is not just about the number on the pump curve.

Start with the Operating Pressure

You need to look at three numbers, not one:

• Normal operating pressure – The steady-state pressure during typical demand.
• Ko e 'omi 'o e ngaue lahi taha – The highest pressure the system will see under normal control (e.g., at night with no draw-off).
• Transient conditions – Pressure surges, water hammer, and pump stop/start events.

A pipe rated for 10 bar static pressure might see 16 bar for a fraction of a second during a pump trip. That fraction of a second matters. HDPE handles water hammer better than brittle materials like PVC, but you still need to account for it in your PN/SDR selection.

Match Pressure Rating to Project Requirements

The selected pipe should have a pressure rating suitable for the actual operating and transient conditions of the pipeline—not just the nominal design pressure. If your system runs a PN16 pump but experiences regular surges above that, you need to either select a higher pressure class or install surge protection.

Related Reading: For a deeper breakdown of pressure classes, vakai ki he'etau fakahinohino 'i he . [HDPE Pipe Pressure Rating: Founga ke Fili PN10 ., PN12.5, mo e ngaahi Paipa PN16 .].

4. Select the Correct HDPE Pipe Diameter

Diameter is not just “what fits in the trench.” It is a balance between flow capacity, velocity limits, pressure loss, and future-proofing.

Flow Rate and Pipe Diameter

The relationship is straightforward but often misunderstood:

• Higher flow requirement → larger diameter needed
• Larger diameter → lower flow velocity → lower friction loss → lower pumping cost

But there is a ceiling. Most water supply designs keep velocity between 0.9 m/s and 2.5 m/s. Go too low, and you risk sediment settling in low-flow zones. Go too high, and you generate excessive head loss and noise. For HDPE water supply pipes, engineers typically target the 1.0–1.5 m/s range for economic operation.

Consider Future Capacity

Here is a mistake we see on job sites regularly: sizing the pipe for today’s demand only. Municipal and industrial projects often have 20- to 50-year design horizons. If future expansion is expected, the pipe diameter should include additional capacity now—because you cannot easily upsize a buried HDPE line later without excavating the whole run.

Related Reading: See our [Fakahinohino ki he ngaahi lahi mo e ngaahi tafa'aki 'o e paipa HDPE] for standard OD and ID tables.

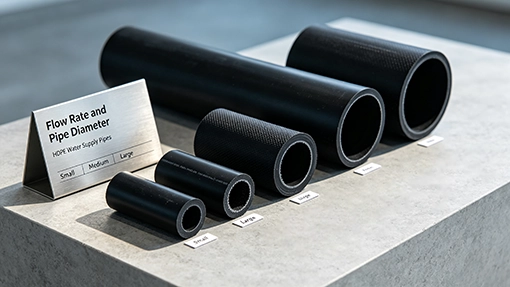

Flow Rate and Pipe Diameter

5. Choose the Appropriate SDR and Wall Thickness

If pressure rating tells you how much the pipe can take, SDR (Fakafuofua'i 'o e Dimension Tu'unga) explains why it can take it. SDR is the ratio of outside diameter to wall thickness. It is the single most useful number for linking pipe geometry to pressure capacity.

What Does SDR Mean in Practice?

A lower SDR means a thicker wall relative to the diameter. A higher SDR means a thinner wall. It is that simple.

SDR and Pressure Rating Work Together

SDR should not be selected independently from the project’s pressure requirements. A contractor once told us they ordered SDR17 because it was “easier to handle in the trench,” only to discover the system ran at 12 pā. That is a costly error.

For water supply projects, SDR11 and SDR17 are the most commonly specified ratios. SDR11 gives you higher pressure capacity and better resistance to external loads (kelekele, traffic), while SDR17 offers a lighter, more economical option where pressure demands are lower.

Related Reading: Compare the two most common options in [SDR11 mo e SDR17 Paipa HDPE: Ko e Fē ʻa e Fakafuofua ʻo e Tenge ʻOku Totonu Ke Ke Filí .?].

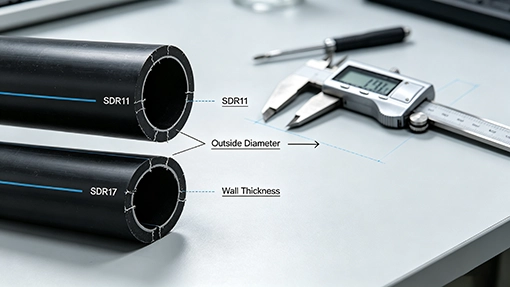

HDPE pipe SDR and wall thickness comparison

6. Consider Water Temperature and Operating Conditions

This is a factor that many buyers overlook—and it can have serious consequences.

Temperature Affects:

• Allowable working pressure – the PN rating assumes 20°C
• Material performance – PE loses strength as temperature rises
• Long-term service life – higher temperatures accelerate creep

The Derating Principle

The PN stamped on an HDPE pipe is a20°C rating. Run the same pipe at 40°C and it effectively becomes a lower-rated pipe; at 60°C, it is down to about half its marked rating.

Important: Pressure ratings must be evaluated under the actual temperature and service conditions specified for the project. A PN16 pipe at 40°C behaves like a PN12 pipe.

What to Consider

• Water temperature – is the source water warm (e.g., industrial cooling water)?
• Ambient temperature – is the pipe exposed to sunlight or installed in hot climates?
• 'Atakai 'o e fokotu'u – black pipe in direct sun can get much hotter than the water inside.

7. Choose the Right Installation Method

The way you join the pipe should influence the pipe you select. Not because HDPE itself changes, but because the installation environment—trench width, access, presence of existing utilities—dictates what is feasible.

Fakatahataha'i 'o e Butt

Best suited for:

• Lōlōa, continuous pipeline sections
• Ngaahi paipa lahi hono diameter (typically ≥ 90 mm OD)
• Permanent systems where joint strength must equal pipe strength

Butt fusion creates a homogeneous joint. When done correctly, the weld zone is indistinguishable from the parent material in terms of strength. It requires access to both sides of the pipe and several meters of working space.

Fakafehokotaki faka'uhila

Best suited for:

• Restricted installation areas (tight trenches, congested utility corridors)
• Connections requiring fittings (tuliki, tees, ngaahi meʻa fakasiʻisiʻi)
• Repair, modification, or tie-in situations

The installation method should be considered when selecting the pipe mo e fittings together. There is no point specifying SDR11 pipe if your electrofusion fittings inventory only covers SDR17.

Related Reading: Review fusion techniques in [HDPE paipa Fusion ngaahi founga 'o e uelo .] and installation best practices in [How to Install HDPE Pipes Underground].

HDPE pipe installation and fusion welding for water supply

8. Select Compatible HDPE Pipe Fittings

Pipes and fittings are a system. Mixing incompatible components is one of the fastest ways to create a failure point.

Fittings Must Match the Pipe System

Before you order, verify compatibility across:

• Taiamita 'o e paipa – Nominal size must align exactly.
• SDR – An SDR11 fitting on an SDR17 pipe creates a step and a stress riser.
• Fakafuofua'i 'o e 'omi – Fittings must meet or exceed the pipe’s PN class.
• Founga fehokotaki . – Butt fusion, fakafetongi ʻuhila, or mechanical.
• Material grade – PE100 fittings with PE100 pipe.
• Project standards – Potable water approval, if required.

Typical fittings for water supply systems include elbows (45° and 90°), equal and reducing tees, concentric reducers, stub ends with backing flanges, ngaahi fakafehokotaki, mo e ngaahi valve fakamavahe'i .. Each one needs to be specified as part of the same system, not picked from a generic catalog.

Related Reading: See [Ko e Lisi Sivi Kakato ki hono fakapapau'i 'o e ngaahi me'a fakapipiki 'o e paipa HDPE .].

9. Check Applicable Standards and Project Requirements

Before placing an order, confirm that the pipe meets all relevant standards.

Key Standards for HDPE Water Supply Pipes

Pre-Order Confirmation Checklist

Before ordering, confirm:

• Required product standard (ISO 4427, ʻI LOTO 12201, ASTM, mo e ngaahi me'a pehē.)
• Pipe dimensions (outside diameter, matolu ʻo e ʻā)
• Pressure class (PN rating)
• Material grade (PE100 minimum)
• Testing and certification requirements
• Potable water compliance (if applicable)
• Local project specifications and regulatory requirements

Ngaahi Paipa Ma'u'anga Vai HDPE

Need Help Choosing the Right HDPE Pipe?

If you have a water supply project and need support narrowing down the specification, our team can help. Provide us with:

• Tohi kole – What is the pipeline for?
• Taiamita 'o e paipa – Required nominal size, if known
• Required pressure – Operating and maximum pressure
• SDR / PN – If already specified in the project documents
• Quantity – Total length required
• Ngaahi tu'unga 'o hono fokotu'u – Underground, above ground, trench conditions
• Project location – Relevant standards and delivery requirements

Fetu'utaki Ko e Kautaha Tekinolosia ʻo e Malohi ʻo Luoyang Datang., Ltd with these details, and we will help confirm the suitable HDPE pipe specification for your project.
