Objašnjene veličine mesinganih cijevnih fitinga: Threads, Dimenzije i vodič za odabir

Odabir pravog mesinganog nastavka nije tako jednostavan kao uparivanje dva broja. Označen spoj 1/2 inch does not necessarily have a 1/2-inch thread diameter, and a fitting with a similar measured diameter may still use a completely different thread standard.

Understanding brass pipe fittings sizes, thread dimensions, nominal pipe size, and thread standards is essential when selecting brass elbows, tees, spojnice, adapteri, hose connectors, and other threaded fittings.

This guide explains the most common brass fitting sizes, NPT and BSP threads, how to measure a brass fitting, and how to specify the correct size when ordering.

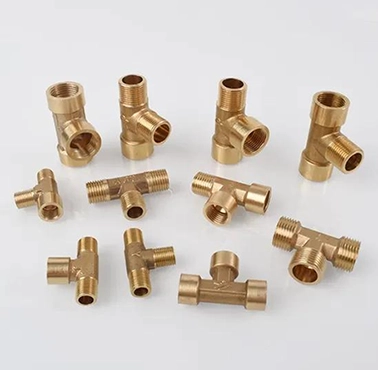

Brass Pipe Fitting

What Does “Brass Pipe Fitting Size” Actually Mean?

When suppliers or buyers refer to a brass fitting size, they are usually referring to the nominal connection size, not the actual physical diameter of the fitting.

Several different measurements may be involved:

Na primjer, a 1/2″ NPT brass fitting has a nominal size of 1/2 inch, but its external thread major diameter is approximately 0.840 inch (21.34 mm).

This is why simply measuring a fitting with a caliper is not enough to identify its size.

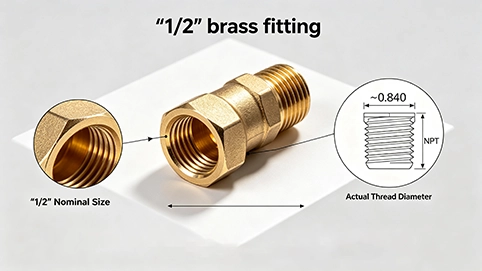

Nominal Size vs. Actual Diameter

The nominal size is a standardized designation used to describe the pipe or connection. It should not automatically be interpreted as the actual thread diameter or pipe outside diameter.

For accurate identification, check the following together:

• Nominal fitting size
• Thread standard
• Male or female thread
• Thread major or internal diameter
• TPI or thread pitch
• Thread profile

Important: The dimensions in the following tables are standard reference dimensions for thread identification. Actual product dimensions can vary according to the applicable standard, tolerance, fitting design, i proizvođač.

Nominal Size vs. Actual Diameter

Brass Pipe Fitting Size Chart

The most common brass pipe fittings are available in sizes ranging from small plumbing connections to larger industrial piping systems.

The following table provides common reference sizes for BSP threads:

These dimensions refer to the thread, not the overall outside diameter of the brass fitting.

Na primjer, a 1/2″ BSP threaded fitting has a thread major diameter of about 20.955 mm. The body of the elbow, tee, or coupling will normally be larger.

Common Brass Fitting Sizes

For plumbing, HVAC, vode, gas, and general industrial applications, commonly requested brass fitting sizes include:

• 1/8″
• 1/4″
• 3/8″
• 1/2″
• 3/4″
• 1″
• 1-1/4″
• 1-1/2″
• 2″

Smaller sizes are common in instrumentation, small water lines, and hose connections, while larger sizes are frequently used in industrial and commercial piping.

1/2″ Brass Fitting

NPT Brass Fitting Sizes

NPT (National Pipe Taper) is one of the most widely used inch-based pipe thread standards, particularly in North America.

NPT threads are tapered and use a 60-degree thread form. The thread dimensions are standardized under ASME B1.20.1.

A typical NPT brass fitting size chart is:

Ovo su thread reference dimensions, not the overall dimensions of the fitting.

Na primjer, if you measure approximately 21.3 mm across the external thread of a fitting, it may be a 1/2″ NPT thread. Međutim, diameter alone does not prove that identification. TPI and thread profile should also be checked.

Why NPT Size Can Be Confusing

A common mistake is assuming:

1/2″ NPT = 1/2″ thread diameter

It does not.

The 1/2″ designation refers to the nominal pipe size, while the external thread diameter is approximately 0.840 inch.

This difference is normal for pipe thread sizing and is one of the main reasons buyers should specify the complete thread standard when ordering brass fittings.

NPT Brass Fitting Sizes

BSP Brass Fitting Sizes

BSPP (Parallel) i BSPT (Tapered)

BSP—British Standard Pipe—is the dominant thread family in the UK, Evropa, and many Commonwealth markets. Unlike NPT, BSP comes in two distinct forms:

BSPP (G thread, ISO 228-1): Parallel threads. They do not seal on the threads themselves. A separate sealing surface—usually a bonded washer, O-ring, or gasket—provides the seal.

BSPT (R/Rp thread, ISO 7-1): Tapered threads. Like NPT, BSPT seals by thread compression. Međutim, the thread angle is 55 stepeni (Whitworth form), not 60 stepeni.

Common BSP Sizes

Thread dimensions per ISO 228-1 (BSPP) i ISO 7-1 (BSPT). Thread angle: 55° (Whitworth form). BSPP is parallel; BSPT is tapered at 1:16.

A common field observation: A thread measuring roughly 1/2 inch (12.7 mm) across the outside is likely a1/4″ BSP thread, not a 1/2″ BSP. The 1/2″ BSP thread actually measures20.955 mm across its major diameter. This “quarter-inch larger” rule of thumb holds approximately for BSP sizes up to about 1″, but always verify with a thread gauge rather than relying on visual estimation alone.

BSP Brass Fitting Sizes

NPT vs BSP: Why the Same Size May Not Fit

This is not a deep comparison—there is a dedicated article coming on that topic. But you need to know the essentials:

Never specify a brass fitting only as “1/2 inch.” Always confirm the thread standard.

Even when nominal sizes match—for example, both are labeled 1/2″—NPT (60° thread angle) and BSP (55° Whitworth) will not thread together properly. The 5° angle difference causes cross-threading and guarantees leaks. Forcing them together damages both threads.

How to Measure a Brass Pipe Fitting

When you have an unmarked fitting in hand, five measurements will identify it:

Korak 1: Check the Fitting Type

Lakat, tee, coupling, adapter, or connector? The type tells you what the fitting does, but not its size.

Korak 2: Measure the Thread Diameter

Use a vernier caliper. For male threads, measure across the outside diameter at the widest point. For female threads, measure the inside diameter.

Korak 3: Count the Threads (TPI)

Use a thread pitch gauge or place a ruler along the thread and count how many complete threads fit within one inch. This is the TPI.

Korak 4: Identify the Thread Profile

Tapered or parallel? NPT and BSPT taper; BSPP and metric threads are parallel. Roll the fitting on a flat surface—a tapered thread will wobble visibly.

Korak 5: Check Male or Female

A thread identification kit containing pitch gauges, a caliper, and reference profiles is worth the investment if you regularly handle mixed-standard fittings.

Measure a Brass Pipe Fitting

How to Choose the Right Brass Fitting Size

Once you understand what the size number actually means, selection becomes systematic. Run through these seven checks before placing an order:

Common brass grades for fittings include CW617N (CuZn40Pb2) for general-purpose plumbing and CW602N (CuZn36Pb2As) for dezincification-resistant applications in aggressive water conditions.

Brass Fittings in industrial applications

Common Mistakes When Choosing Brass Fitting Sizes

Greška 1: Treating Nominal Size as Actual Diameter

A 1/2″ fitting does not necessarily have a 1/2-inch thread diameter.

Greška 2: Measuring Only the Fitting Body

The body diameter does not identify the thread size.

Greška 3: Ignoring NPT vs. BSP

A similar diameter does not mean the threads are compatible.

Greška 4: Confusing BSPP and BSPT

Both belong to the BSP family, but one is parallel and the other is tapered.

Greška 5: Ignoring Male/Female Configuration

A correct thread size is not enough if the connection gender is wrong.

Greška 6: Selecting by Diameter Without Checking TPI

Two threads can have similar diameters but different pitches or TPI.

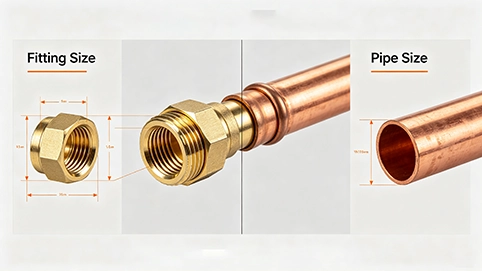

Brass Fitting Size vs Pipe Size: Are They the Same?

No—and this is where the confusion peaks.

A fitting marked 1/2″ does not have a 12.7 mm thread OD. In NPT, the 1/2″ size has a 0.840″ thread OD. In BSP, the 1/2″ size has a 20.955 mm major diameter. The nominal size is a matching reference, not a physical dimension.

Brass Fitting Size vs Pipe Size
