How to Choose Check Valves for Pump Systems in Water Pipelines (Water Hammer & Backflow Prevention Guide)

In any water pipeline system with pumps, el check valve is arguably the most critical component for protecting equipment and ensuring system reliability. It may seem like a simple device—a valve that allows flow in only one direction—but selecting the wrong check valve can lead to catastrophic failures: water hammer that shatters pipes, pumps spinning backward at destructive speeds, or valves that chatter themselves to pieces within months.

This guide covers everything you need to know about industrial check valve selection for pump systems in water pipelines. We will compare swing check valve vs lift check valve dissenys, explain how to prevent cop d'ariet, provide a practical check valve sizing guide, and share essential check valve maintenance tips to avoid common failure causes.

Why Every Pump System Needs a Check Valve

A non-return valve for water system is not optional—it is essential. When a pump stops, the column of water in the discharge pipeline does not stop instantly. It continues moving due to inertia, creating a reverse flow that can:

• Spin the pump backward at speeds exceeding normal operation, damaging the pump and motor
• Create water hammer pressure surges that can burst pipes and damage fittings
• Allow contaminated water to flow back into the clean water source
• Cause pump impellers to unscrew or suffer mechanical damage

El check valve for pump protection prevents reverse flow automatically, without operator intervention. It opens when the pump runs and closes when the pump stops, ensuring that water only flows in the intended direction.

Check valve installed on pump discharge pipeline

Swing Check Valve vs Lift Check Valve – Which One Do You Need?

The two most common types of check valves for water pipeline pump systems are swing check valves i lift check valves. Understanding their differences is the first step in industrial check valve selection.

Swing Check Valve

A swing check valve uses a disc that swings on a hinge pin. Forward flow pushes the disc open; when flow stops or reverses, the disc swings back onto the seat by gravity.

Key Characteristics:

✅Low pressure drop – Minimum pressure drop of approximately 0.5 psi when fully open

✅Simple design – Fewer moving parts, lower maintenance

✅Ideal for large diameters – Common choice for NPS 2″ and above

✅Best for water and other liquids

❌Horizontal installation required – Must be installed in horizontal or slightly sloping lines

❌Not suitable for vertical-up flow – Gravity cannot return the disc to its seat

Lift Check Valve

A lift check valve (also called a piston check valve) uses a disc or piston that lifts off the seat under forward flow and drops back by gravity and spring force when flow reverses. It operates similarly to a globe valve.

Key Characteristics:

✅Superior sealing – Better for high-pressure environments

✅Suitable for vertical-up flow – Works well in vertical pipelines

✅Can be installed horizontally – Horizontal lift check valves available

❌Higher pressure drop – Approximately 2.0–3.0 psi minimum

❌Higher fluid resistance

❌More complex design – More moving parts, higher maintenance

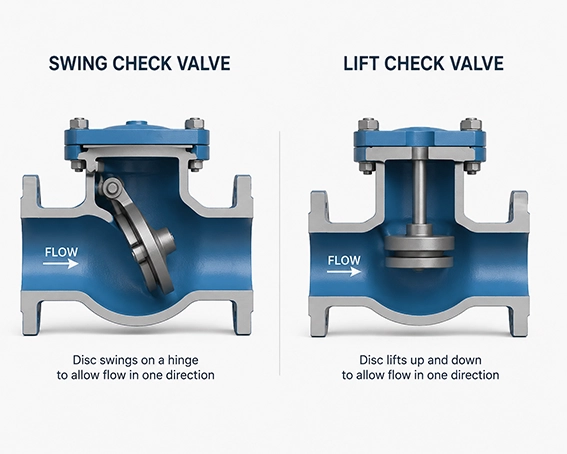

Swing check valve vs lift check valve internal structure comparison

Comparison Table

Consell de selecció: For most water pipeline pump systems with horizontal piping, a swing check valve is the preferred choice due to its low pressure drop and simple design. For vertical pipelines or high-pressure applications, a lift check valve may be more appropriate.

Preventing Water Hammer – The Silent System Killer

Water hammer (also called hydraulic shock) occurs when a fluid in motion is suddenly forced to stop or change direction. In pump systems, this happens when the pump stops and the check valve slams shut, or when a valve downstream is closed too quickly.

• El water hammer prevention valve must be carefully selected to avoid:
• Check valve slam – When the disc slams against the seat, creating a pressure wave that travels through the system
• Pressure surges – Can exceed 10 times the normal operating pressure
• Pipe rupture – Extreme pressure spikes can burst pipelines
• Pump damage – Reverse flow can spin pumps backward at destructive speeds

How to Select a Water Hammer Prevention Valve

To prevent water hammer in your pump discharge pipeline:

• Choose non-slam check valves – Valves with spring-assisted closing mechanisms close before reverse flow can occur, significantly reducing water hammer
• Use dashpot or damping devices – Some check valves include dashpots that slow the closing speed
• Match valve closing time to system dynamics – Faster closing is not always better; the valve must close fast enough to prevent backflow but slow enough to avoid pressure surges
• Consider slow-closing check valves – These are designed to close gradually, allowing pressure to dissipate gradually rather than instantly

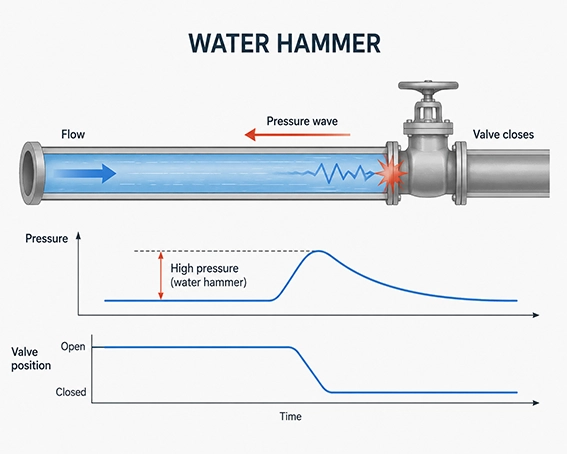

Water hammer pressure wave diagram

Check Valve Sizing Guide – Getting It Right

Proper check valve sizing is essential for reliable operation. An incorrectly sized valve can cause chattering (rapid opening and closing), excessive pressure drop, or failure to open fully.

The Pressure Drop Rule

The size of a check valve should be determined by the specified pressure drop, not simply by pipe size.

Rule of thumb: To keep a check valve fully open, the differential pressure should be at least two times the cracking pressure (the minimum pressure needed to open the valve).

Step-by-Step Sizing Process

Pas 1: Determine flow data

Gather the media type, temperatura, and expected flow rate for your system.

Pas 2: Calculate required Cv

The flow coefficient (Cv) must be less than the Cv calculated when using your desired pressure drop in the flow sizing equations.

Pas 3: Verify minimum flow

Determine what minimum flow rates the check valve can handle. If flow falls below this minimum, the valve may not fully open, causing chattering.

Pas 4: Check the pressure drop

Meeting the minimum pressure drop criteria will determine whether the sizing equation is correct. A check valve that is not fully open may cause chattering and damage.

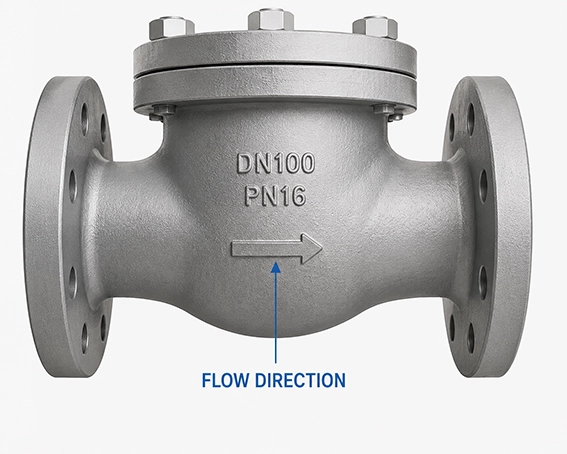

Flow arrow on check valve body

Check Valve Installation Direction & Best Practices

Check valve installation direction is critical. Every check valve has a flow arrow cast or stamped on the body indicating the required flow direction. Installing the valve backwards is a common and costly mistake.

Installation Requirements by Valve Type

Swing check valves: Must be installedhorizontally (or in lines that slope slightly). They will not work in vertical-up lines because gravity cannot return the disc to its seat.

Lift check valves: Can be installedhorizontally or vertically (vertical-up flow is recommended).

Installation Checklist

✅ Confirm flow arrow direction matches process flow

✅ Ensure the valve mechanism operates properly before installation

✅ Install with adequate straight pipe upstream (consult manufacturer recommendations)

✅ Use appropriate gaskets and torque bolts to specification

✅ Test the system for leaks after installation

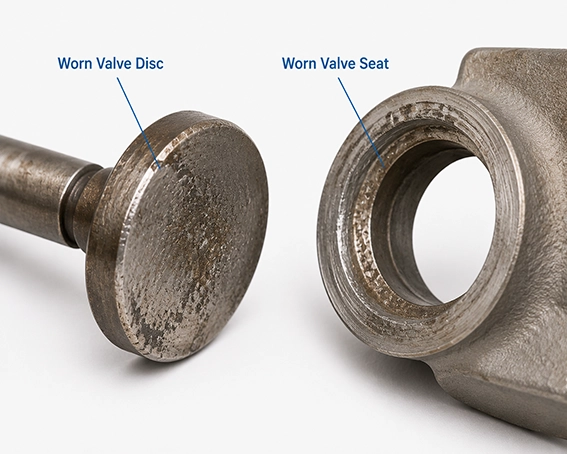

Worn check valve disc and seat

Common Check Valve Failure Causes – And How to Avoid Them

Comprensió common check valve failure causes can help you prevent costly downtime.

A dalt 5 Failure Causes

How to Extend Check Valve Life

Inspecció periòdica: Check for wear on the disc and seat at scheduled intervals

Proper sizing: Ensure the valve is correctly sized for your flow and pressure conditions

Media compatibility: Confirm valve materials are compatible with your process media

Address chattering immediately: Chattering indicates the valve is not fully open—investigate flow and pressure conditions

Replace worn parts promptly: Excessive play in the disc can cause binding and failure

How to Prevent Reverse Flow in Piping Systems – Beyond the Check Valve

While a properly selected and installed check valve is the primary method to prevent reverse flow in piping systems, a comprehensive approach includes:

• Multiple check valves in critical systems – Redundant protection if one valve fails
• Pressure monitoring – Detect abnormal pressure drops that indicate check valve failure
• Manteniment regular – Scheduled inspection and replacement of worn components
• Proper pump control – Avoid rapid pump starts and stops that create water hammer
• Air chambers or surge tanks – Absorb pressure surges to protect the system

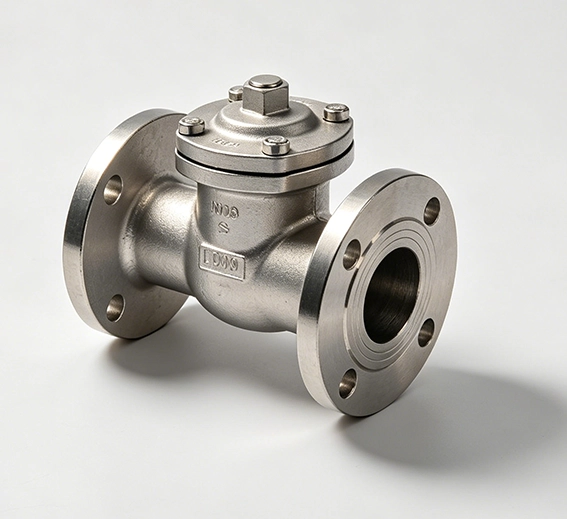

Industrial check valve product display

Frequently Asked Questions

Q1: What is the difference between a swing check valve and a lift check valve?

A: A swing check valve uses a disc that swings on a hinge, offering low pressure drop and simple design. It must be installed horizontally. A lift check valve uses a piston that lifts vertically, offering superior sealing but higher pressure drop. It can be installed in vertical or horizontal piping.

P2: How do I prevent water hammer in my pump system?

A: Choose non-slam or damped check valves that close before reverse flow can occur, ensure proper valve sizing, avoid rapid pump starts and stops, and consider adding air chambers or surge tanks to absorb pressure surges.

P3: What is the minimum pressure drop for a check valve?

A: For swing check valves, the minimum pressure drop is approximately 0.5 psi. For lift check valves, it is approximately 2.0–3.0 psi. The valve must be sized to meet these minimum pressure drop criteria to ensure full opening.

P4: Why is my check valve chattering?

A: Chattering occurs when the valve is not fully open, typically due to insufficient flow or pressure drop. It can also be caused by worn internal components. Check your flow conditions and valve sizing.

P5: Can I install a swing check valve vertically?

A: No. Swing check valves must be installed horizontally or in slightly sloping lines. Gravity is required to return the disc to its seat, which does not work in vertical-up flow.

Why Choose Our Check Valves?

A les Luoyang Datang Energy Tech Co., Ltd. , we supply high-quality check valves for pump protection and water pipeline systems. Our products feature:

✅Wide range of types – Swing check valves, lift check valves, dual-plate check valves, and more

✅Multiple materials – Cast iron, ductile iron, carbon steel, acer inoxidable, bronze, and alloy

✅Various connection options – Flanged, threaded, wafer, and grooved ends

✅Non-slam designs – Spring-assisted closure for water hammer prevention

✅Sizes from 1/2″ to 48″ – Suitable for all pipeline applications

✅Pressure ratings up to Class 2500 – For high-pressure systems

✅CE and ISO 9001 certificat – Quality assured

✅Competitive pricing – Factory-direct supply with OEM/ODM support

Contact us today for expert check valve selection advice, especificacions del producte, and competitive quotes.

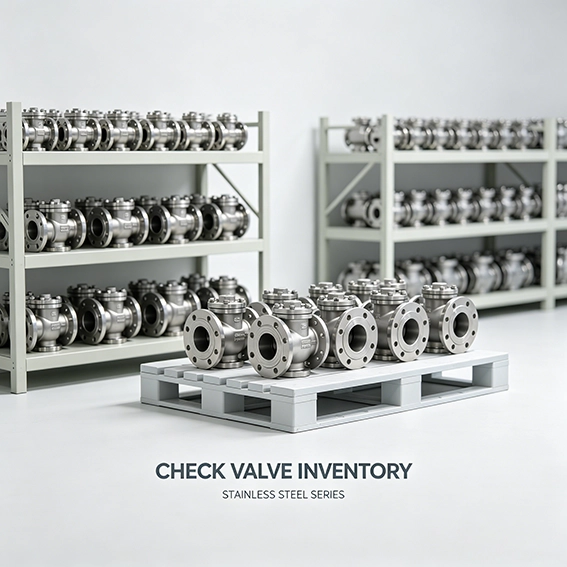

Check valve factory inventory
