PVC (Polyvinylchlorid) Erklärt: Struktur, Eegeschaften, Fabrikatioun & Global Uwendungen (2026 Guide)

1. Wat ass PVC? Understanding the Molecular Structure

PVC (Polyvinylchlorid) is a thermoplastic polymer produced by polymerizing vinyl chloride monomer (VCM).

• Chemical structure: –CH₂–CHCl–
• Chlorine content: ~56.8%
• Typ: Polar polymer

Schlëssel technesch Asiicht:

D'Präsenz vu Chloratome gëtt PVC:

• exzellent flame retardancy
• Staark chemesch Resistenz
• Héich mechanical rigidity

Allerdéngs, pure PVC is brittle → requires additives (plasticizers, stabilizers).

2. PVC Manufacturing Process (Industrial Perspective)

There are three main production methods:

Typical Process Flow (Suspension PVC):

1. VCM compression
2. Polymerization (40–70°C)
3. Degassing (remove residual VCM)
4. Drying
5. Final resin output

Industry Trends:

• Ultra-low residual VCM (<1 ppm)
• Mercury-free catalysts
• Continuous production systems

3. Key Properties of PVC (Engineering Data)

👉 Conclusioun:
PVC offers an optimal balance of strength + kascht + Sécherheet

4. Rigid PVC vs Flexible PVC

👉 Core Difference: Plasticizer content determines flexibility.

5. Major Applications of PVC Worldwide

1. Bau (60%+ demand)

• Water supply pipes
• Drainage systems
• Window profiles

2. Electrical Industry

• Cable insulation
• Conduits

3. Medical Sector

• Blood bags
• Tubing

4. Renewable Energy (Hot Trend)

• Solar cable insulation
• Energy storage wiring

👉 PVC is becoming critical in solar + energy storage systems

6. PVC vs PE vs PP (Material Comparison)

👉 PVC stands out in fire safety + structural strength

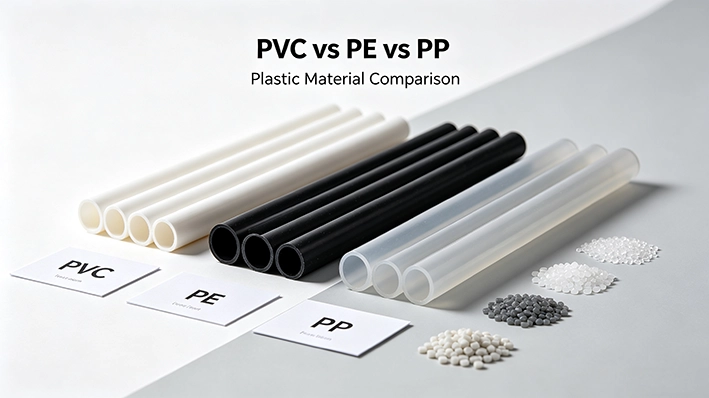

PVC PE PP pipe material performance comparison

7. Environmental Challenges & Solutions

Challenges:

• Plasticizer restrictions (phthalates)
• Chlorine-related concerns

Solutions:

• Bio-based plasticizers
• Lead-free stabilizers
• Recycling technologies

👉 EU regulations (REACH) are shaping the future of PVC

8. Why PVC Still Dominates the Market

• Käschten-effikass (20–30% cheaper than alternatives)
• Highly customizable
• Wide industrial applications

👉 PVC is not just plastic — it’s an engineering platform material

9.PVC Types: PVC, uPVC, and CPVC Differences

Although PVC is a general material category, different modification methods create different PVC types for specific applications. Understanding these differences is essential for selecting the right pipe material.

uPVC (Unplasticized PVC)

uPVC is rigid PVC that contains no plasticizers. This makes it stronger, more durable, and more chemically resistant than plasticized PVC. uPVC is the most widely used material for cold water supply and drainage systems due to its excellent mechanical properties and long service life.

Key Characteristics:

• ✅ No plasticizers added
• ✅ Higher rigidity and strength
• ✅ Excellent chemical resistance
• ✅ Long service life (50+ Joer)
• ✅ Suitable for cold water and drainage
• ❌ Not suitable for hot water (temperature limit ~60°C)

CPVC (Chlorinated PVC)

CPVC is produced by chlorinating PVC resin, which increases the chlorine content and enhances the material’s heat resistance. CPVC can handle temperatures up to 93°C (200°F), making it suitable for hot water distribution and industrial piping systems where higher temperatures are encountered.

Key Characteristics:

• ✅ Higher chlorine content
• ✅ Better heat resistance (up to 93°C/200°F)
• ✅ Suitable for hot water applications
• ✅ Excellent chemical resistance
• ✅ Good fire resistance properties
• ❌ Higher cost than uPVC

Key Takeaway: For piping systems, uPVC anCPVC are the most important PVC derivatives. uPVC is the standard choice for cold water and drainage; CPVC is required for hot water and high-temperature industrial applications.

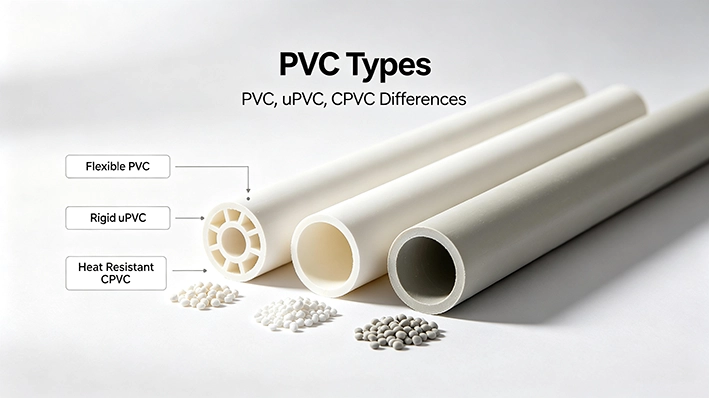

PVC uPVC CPVC plastic pipe type difference comparison

10.PVC Pipe Standards and Quality Requirements

PVC pipes used in engineering projects must meet international standards to ensure safety, Zouverlässegkeet, and interoperability. Different standards apply to different regions and applications.

Common International Standards :

Key Quality Parameters

1. Drock Bewäertung

PVC pipes are classified according to pressure capability, with common ratings including PN6, PN 10, and PN16. Higher PN ratings indicate stronger pressure resistance. Selecting the correct pressure rating is essential for system safety and longevity.

2. Wall Thickness

Thicker pipe walls provide higher pressure resistance, better impact strength, and longer service life. Wall thickness is specified by the pipe’s Schedule (SCH) or SDR (Standard Dimensioun Verhältnis) rating.

3. Chemesch Resistenz

PVC pipes perform well in water treatment, chemical transportation, and industrial drainage applications due to their excellent resistance to a wide range of chemicals, including acids, Alkalien, a Salzer.

11.PVC Pipe Manufacturing Process

PVC pipes are manufactured through extrusion technology, a continuous process that produces pipes of consistent quality and dimensional accuracy. Understanding the manufacturing process helps buyers evaluate product quality and supplier capabilities.

Typical Production Steps

Step 1: PVC Resin Mixing

PVC resin is blended with stabilizers, lubricants, processing additives, and impact modifiers to create a homogeneous compound. The formulation determines the pipe’s final properties, including strength, Flexibilitéit, and UV resistance.

Step 2: Extrusion

The compounded material is heated and pushed through an extrusion die that shapes the pipe. The extruder melts the PVC compound and forces it through the die, forming a continuous pipe of the desired diameter and wall thickness.

Step 3: Cooling and Sizing

The extruded pipe passes through vacuum calibration tanks where it is cooled and sized to achieve accurate dimensions. This step ensures the pipe meets the required tolerances for diameter, Wanddicke, and roundness.

Step 4: Cutting and Testing

Finished pipes are cut to standard lengths and tested for diameter accuracy, Drock Resistenz, impact strength, and appearance quality. Testing is performed according to the applicable international standards.

Step 5: Packaging

Pipes are packed according to diameter and project requirements, typically in bundles with end caps or protective wrapping to prevent damage during transport and storage.

PVC plastic pipe production flow chart with raw material and finished pipes

12.Advantages of PVC Pipes in Modern Piping Systems

PVC pipes remain one of the most widely used plastic piping solutions because of several distinct advantages over traditional materials like steel, Koffer, and concrete.

PVC pipes remain one of the most widely used plastic piping solutions because of several advantages:

Lightweight Installation

PVC pipes are much lighter than metal alternatives:

• Easier transportation
• Méi séier Installatioun
• Lower labor costs

Corrosion Resistenz

Unlike steel pipes, PVC does not rust or corrode.

It is suitable for:

• Water supply
• Wastewater
• Chemical systems

Low Maintenance

PVC piping systems require minimal maintenance due to:

• Smooth inner surface
• Reduced scaling
• Laang Service Liewen

Cost Efficiency

PVC provides excellent performance at a lower cost compared with:

• Copper pipes
• Stainless steel pipes
• Carbon steel pipes

UPVC PVC pipes and fittings diagram for modern plumbing piping system

13.PVC Pipe Applications in Different Industries

Waasserversuergung Systemer

PVC Päifen are widely used for:

• Drinking water distribution
• Municipal pipelines
• Building water systems

Agriculture Irrigation

PVC irrigation pipes provide:

• Stable water flow
• Resistance to fertilizers
• Long outdoor service life

Drainage and Sewer Systems

PVC pipes are preferred because of:

• Smooth flow characteristics
• Korrosiounsbeständegkeet
• Easy installation

Industriell Uwendungen

PVC piping is used for:

• Chemical processing
• Wastewater treatment
• Industrial fluid transportation

14.PVC Sustainability and Recycling

Modern PVC production focuses increasingly on environmental performance. The industry has made significant progress in reducing environmental impact through improved formulations and recycling technologies.

Lead-Free Stabilizers

The PVC industry is replacing traditional stabilizers with safer alternatives, eliminating lead and other heavy metals from PVC formulations. This makes modern PVC pipes safer for drinking water applications and environmentally friendly.

PVC Recycling

PVC can be recycled through mechanical recycling and material recovery processes. Recycled PVC is used in the production of new pipes, fittings, and other products, reducing the demand for virgin material and minimizing landfill waste.

Longer Service Life

Long-lasting PVC products reduce replacement frequency, resource consumption, and maintenance requirements. A properly installed PVC pipe system can last 50 years or more, making it a sustainable choice for infrastructure projects.

PVC plastic pipe sustainability recycling diagram with recycle icon

15.How to Choose the Right PVC Pipe System

When selecting PVC piping systems, consider several key factors to ensure optimal performance and long-term reliability.

Applikatioun

Determine whether the system is for water supply, Drainage, Bewässerung, or industrial use. This determines the type of PVC required — uPVC for cold water and drainage, CPVC for hot water applications.

Pressure Requirement

Choose pipe pressure rating according to operating pressure, Temperatur, and safety margin. Higher pressure ratings (PN 16) are required for main supply lines; lower ratings (PN 6) may suffice for gravity drainage systems.

Temperature Conditions

PVC has temperature limitations. For cold water systems, uPVC is suitable. For higher temperatures (above 60°C), CPVC may be more appropriate. Always check the temperature rating of the pipe material.

Connection Method

Common joining methods for PVC pipes include solvent cement welding, threaded connections, and mechanical fittings. Solvent cement is the most common method for uPVC and CPVC pipes, creating a permanent, leck-proof joint.

Local Standards

Always confirm compliance with ASTM, ISO, VUN, or local regulations. Different countries and regions may have specific requirements for PVC pipes used in public infrastructure projects.

16.PVC Market Outlook and Future Trends (2026)

The global PVC industry continues to grow due to demand from infrastructure development, water management projects, urbanization, and renewable energy systems.

Smart Manufacturing

PVC production is becoming more automated, more energy efficient, and more environmentally controlled. Industry 4.0 technologies are being integrated into PVC pipe manufacturing, improving quality control and reducing waste.

Sustainable Additives

The industry is moving toward bio-based additives, low-impact formulations, and improved recycling technologies. These developments reduce the environmental footprint of PVC production and make PVC pipes an even more sustainable choice.

Growing Infrastructure Demand

PVC remains an important material for water networks, sewer systems, and building construction. As urbanization continues and aging infrastructure requires replacement, demand for PVC pipes is expected to grow steadily. The global PVC pipes market is projected to expand at a CAGR of 5-6% through 2030, driven by water and wastewater infrastructure investments worldwide.

2026 PVC industry market trend chart with plastic pipe products

Frequently Asked Questions

1. What is the difference between PVC, uPVC, and CPVC?

PVC is the base polyvinyl chloride material. uPVC (unplasticized PVC) contains no plasticizers, making it harder and stronger, suitable for cold water and drainage systems. CPVC (chlorinated PVC) is chlorinated for higher heat resistance, suitable for hot water applications. uPVC and CPVC are the two most commonly used PVC types for piping systems.

2. What is the difference between PN6, PN 10, and PN16 pressure ratings for PVC pipes?

PN ratings indicate the maximum allowable working pressure at 20°C (in MPa). PN6 is 0.6 MPa, suitable for low-pressure irrigation. PN10 is 1.0 MPa, suitable for standard water supply. PN16 is 1.6 MPa, suitable for high-pressure mains. Selecting the correct pressure rating is essential for system safety.

3. Can PVC pipes be used for hot water?

Standard uPVC pipes are not suitable for hot water (temperature limit approximately 60°C). For hot water applications (up to 93°C), CPVC pipes should be used. CPVC is chlorinated to improve heat resistance and is specifically designed for hot water distribution and high-temperature industrial applications.

4. What are the main connection methods for PVC pipes?

The most common method is solvent cement welding — clean the pipe end and fitting socket, apply solvent cement, push the pipe into the fitting and hold until set. Other methods include threaded connections (small diameters) and mechanical fittings (for easy disassembly).

5. How long do PVC pipes last?

A properly installed PVC pipe system can last 50 years or more. PVC’s corrosion resistance, glat banneschten Mauer, and aging resistance ensure long-term reliable performance, making PVC a sustainable choice for infrastructure projects.

Why Choose Our PVC Pipes?

Luoyang Datang Energy Tech Co.Ltd ass e féierende chinesesche Hiersteller spezialiséiert op héichqualitativ Plastiksleitungen an Armaturen. Equipéiert mat Staat-vun-der-Konscht automatiséiert Produktioun Linnen an ënnerstëtzt vun engem Team vun 200 professionell, mir bidden eng extensiv Produit Linn mat iwwer 150 Aarte vu Plastiksleitungen an Armaturen fir Waasserversuergung an Drainagesystemer entworf, Gas Transmissioun, a Buedemheizungssystemer. Eis Haaptprodukter enthalen PVC Pipes a Fittings, PE (HDPE) Pipes a Fittings, PPR Pipes a Fittings, a PEX Buedemheizungsleitungen.

Our products feature:

• ✅ Complete range — uPVC, CPVC, and specialized PVC pipes
• ✅ Multiple pressure ratings — PN6, PN 10, PN 16
• ✅ Wide size range — 20mm to 630mm
• ✅ International standards — ASTM, ISO, VUN, GB compliant
• ✅ 100% quality tested — Guaranteed reliability
• ✅ Competitive pricing — Factory-direct supply with OEM/ODM support

Kontaktéiert eis haut fir Expert Auswiel Rot, Produit Spezifikatioune, and competitive quotes.
