Aina za Viunganishi vya Hose ya Shaba: Jinsi ya Kuchagua Inayofaa?

Katika maji, hewa, mafuta, na mifumo ya maji ya viwanda, kiunganishi cha hose ya unyenyekevu ni shujaa asiyeimbwa ambaye huweka kila kitu kinapita. Ikiwa unaendesha njia ya umwagiliaji ya bustani, kudumisha mfumo wa HVAC, or managing high-pressure industrial equipment, yabrass hose connector serves as the critical link between flexible hoses and pipes, equipment, or other hose sections.

Choose the wrong connector, and you’re looking at leakage, poor sealing, and a dramatically reduced service life. Choose the right one, and you’ve got a connection that performs reliably for years. The problem? There are dozens of types on the market — threaded connectors, barb connectors, quick connectors, couplings — and picking the right one requires more than a quick glance at a catalog.

This guide breaks down the most common brass hose fitting types, explains how to match them to your application, and gives you the practical knowledge to make a confident purchasing decision.

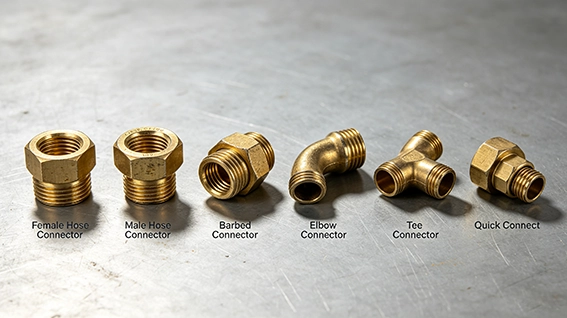

Brass Hose Fittings

What Is a Brass Hose Connector?

A brass hose connector is a fitting used to connect flexible hoses with pipes, equipment, or other hose sections. It is typically machined from brass alloys such as C36000, known for its excellent machinability and corrosion resistance. Compared to plastic alternatives, brass connectors offer significantly longer service life — plastic tends to become brittle and snap over time, while brass maintains its structural integrity for years.

Brass Hose Connector Basic Information

A brass hose connector is used to connect flexible hoses with pipes.

Common Types of Brass Hose Connectors

This is where the rubber meets the road — or rather, where the hose meets the fitting. Understanding the brass hose connector types available is the foundation for making the right choice.

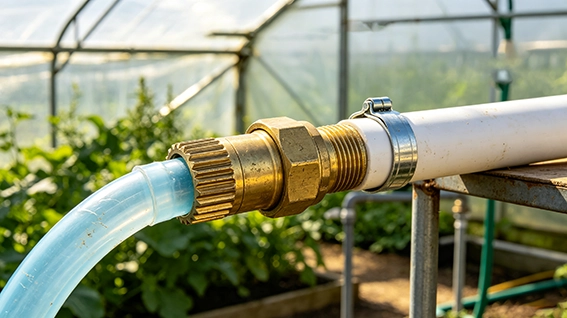

Brass Barb Hose Connector

The barb connector is the workhorse of hose fittings. The barbed end is inserted into the hose bore, with the ridges gripping the interior wall without damaging it. Barbed fittings work best with soft tubing — flexible PVC, polyurethane, silicone, and thermoplastic rubber — because the tubing must give slightly to fit around the barbed end. A hose clamp or crimped ferrule is then used to secure the connection.

Pro tip: The outer diameter of the barbed area must be larger than the inner diameter of the tubing, and there should be noticeable resistance during insertion. Kwa mfano, 1/4″ I.D. tubing should use a barbed fitting with a barb O.D. of at least 0.270″.

Brass Barb Hose Connector

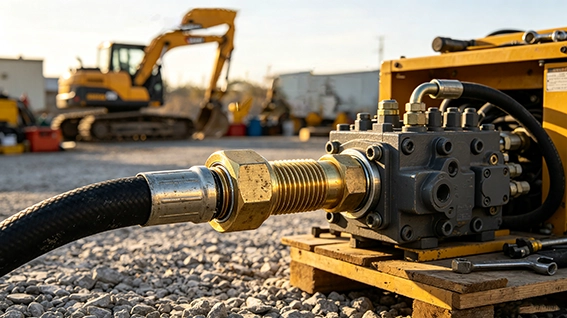

Threaded Brass Hose Connector

Threaded connectors usekiume aukike threads to create a sealed connection. They’re the go-to choice when you need a high-sealing, pressure-resistant joint. The two dominant thread standards are NPT (Kitambaa cha Bomba la Taifa) and BSP (Bomba la Kawaida la Uingereza).

NPT threads have a 60° thread angle and are flattened at the peaks and valleys. BSPP threads have a 55° angle with rounded peaks and valleys. These differences meanNPT and BSP are not interchangeable — mixing a male BSPP fitting into a female NPT port simply won’t create a reliable seal.

Related reading: NPT dhidi ya nyuzi za BSP: What’s the Difference?

Threaded Brass Hose Connector

Brass Quick Hose Connector

Quick connectors (also called quick-disconnect or quick-release couplers) allow hoses to be connected and disconnectedwithout tools using a push-button or lever mechanism. They’re especially popular in compressed air systems, zana za nyumatiki, and industrial equipment where frequent changeovers are needed. A key caveat: different coupling series (BSP, Euro, Milton) arenot interchangeable — both halves must come from the same series.

For a representative product example, Parker’s brass quick-acting barbed fittings are rated for a maximum operating pressure of 16 bar and can handle temperatures from -20°C to +100°C in water applications.

Brass Hose Coupling Connector

A coupling connectstwo hose sections together, while a connector typically connects a hose to equipment. The distinction matters: a fitting is a single connection between a hose and a threaded port, while a coupling is a set of units used together, often with male and female halves.

Related reading: Mwongozo wa Kuunganisha Mashine ya Shaba

Brass Quick Hose Connector vs Brass Hose Coupling Connector

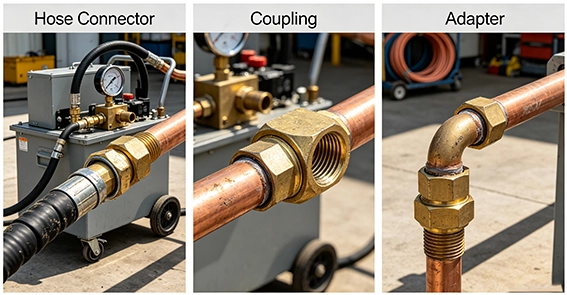

Brass Hose Connector vs Coupling vs Adapter: What’s the Difference?

This is one of the most common sources of confusion in the industry — and getting it wrong means ordering the wrong part.

Think of it this way: aconnector is a one-ended link to a fixed point. Acoupling joins two moving parts. Anadapter translates between two different standards.

Related reading: Brass Hose Coupling Guide

Brass Hose Connector vs Coupling vs Adapter

How to Choose the Right Brass Hose Connector?

This is where purchasing decisions are won or lost. Below are the five factors that matter most.

1. Check Hose Size

The single most common mistake in connector selection is a size mismatch. Always match the connector size to your hose’sinner diameter (I.D.) .

2. Consider Connection Type

3. Consider Working Pressure

Brass hose fittings have varying pressure ratings depending on size, aina, and construction. A typical brass barb fitting from Dixon is rated for amaximum working pressure of 250 PSI at 72°F, with an operating temperature range of -40°F to 160°F. Parker’s brass quick-acting barbed fittings are rated at16 bar (takriban 232 PSI) .

Key takeaway: Always check the manufacturer’s pressure rating for your specific fitting, ukubwa, and operating temperature. Pressure ratings decrease as temperature increases.

4. Check Material Compatibility

Brass is compatible with a wide range of media including water, hewa, mafuta, mafuta, inert gases, and many industrial fluids. Parker’s brass compression fittings are suitable for water, machining oil, mafuta, hydraulic oil, compressed air, chemical fluids, and disinfectants.

Hata hivyo, brass isnot suitable for all applications. It should not be used with acetylene, ammonia, or prolonged seawater contact — stainless steel is the right choice for those scenarios.

5. Consider Application Environment

Brass Hose Connector in Heavy-duty water transfer

Brass Hose Connector Applications

Brass hose connectors are commonly found in water and power plants, Mifumo ya HVAC, na mifumo ya joto, where they provide watertight seals under both domestic and industrial conditions.

Related reading: Vipimo vya Bomba la Shaba Vilivyoelezwa

Why Choose Brass Hose Connectors?

Rather than listing generic advantages, here’s what actually matters in practice:

The price difference between brass and plastic connectors is real — brass costs more upfront. But as one user review put it: shaba “should work out much cheaper due to plastic becoming brittle and snapping”.

Related reading: Why Brass Hose Fittings Are Still a Preferred Choice

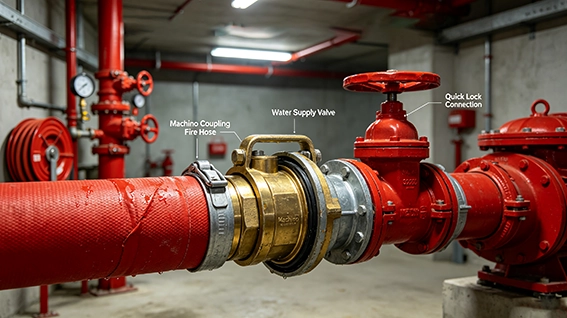

Machino coupling in Fire Protection

Common Mistakes When Selecting Brass Hose Connectors

Maswali Yanayoulizwa Mara kwa Mara

Q1: What is a brass hose connector used for?

A brass hose connector is used to join a flexible hose to a pipe, tap, piece of equipment, or another hose section. Inahakikisha usalama, leak-free connection for transferring water, hewa, mafuta, or other fluids.

Q2: Are brass hose connectors suitable for high pressure?

It depends on the type and size. A standard brass barb fitting is typically rated for up to 250 PSI at 72°F. Threaded and heavy-duty industrial connectors can handle higher pressures. Always verify the specific pressure rating for your fitting and operating temperature.

Q3: What is the difference between a hose connector and coupling?

A hose connector (kufaa) connects a hose to a fixed point (equipment, bomba, tap). A coupling connects two hose sections together. Couplings are typically sold as matched sets (male and female halves).

Q4: How do I choose the right brass hose connector size?

Match the connector to your hose’s inner diameter. Common sizes are 1/2″, 5/8″, na 3/4″. If connecting to a threaded port, also confirm the thread size and standard (NPT or BSP).

Q5: Are brass hose connectors better than plastic connectors?

For most applications requiring durability and long service life, yes. Brass resists corrosion and won’t become brittle over time. Plastic connectors are cheaper and lighter but typically don’t last as long, especially under UV exposure or temperature cycling.

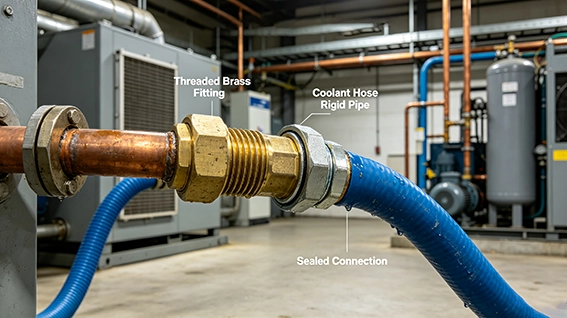

Threaded in coolant lines
