Udhëzuesi i zgjedhjes së valvulave të kontrollit për sistemet e pompës: Llojet, Aplikacionet & Përmasat (Uji, HVAC & Industriale)

Every pump system shares a common vulnerability: when the pump stops, the water column in the discharge pipeline doesn’t stop instantly. Ai vazhdon të lëvizë për shkak të inercisë, creating a reverse flow that can spin pumps backward at destructive speeds, generate water hammer pressure surges that burst pipes, and allow contaminated water to flow back into the clean water source. The solution is a pump system check valve — a non-return valve that automatically prevents reverse flow without operator intervention.

Kjo Zgjedhja e valvulave të kontrollit industrial guide covers everything you need to know about choosing the right non-return valve for pump systems in water, HVAC, dhe aplikime industriale. We will compare the three most common check valve types — swing check, spring loaded silent check, and dual plate check — and provide a practical selection framework to help you protect your pumps and pipelines.

Why Every Pump System Needs a Non-Return Valve

A non-return valve for pump systems is not optional — it is essential. Kur një pompë ndalon, kolona e ujit në tubacionin e shkarkimit nuk ndalet menjëherë. Ai vazhdon të lëvizë për shkak të inercisë, duke krijuar një rrjedhë të kundërt që mund:

• Rrotulloni pompën prapa me shpejtësi që tejkalojnë funksionimin normal, duke dëmtuar pompën dhe motorin
• Krijoni rritje të presionit të çekiçit të ujit që mund të shpërthejnë tubat dhe të dëmtojnë pajisjet
• Lëreni ujin e ndotur të rrjedhë përsëri në burimin e ujit të pastër
• Shkaktoni që shtytësit e pompës të zhvishen ose të pësojnë dëmtime mekanike

A check valve opens when the pump runs and closes automatically when the pump stops, duke siguruar që uji të rrjedhë vetëm në drejtimin e synuar. The key to successful performance is Zgjedhja e valvulave të kontrollit industrial — choosing the right type, madhësia, and specification for your specific application.

Pump system check valve installed on discharge pipeline

Three Check Valve Types for Pump Systems — A Side-by-Side Comparison

1. Valvula e kontrollit të lëkundjes

A valvula e kontrollit të lëkundjes përdor një disk që lëkundet në një kunj të menteshës. Rrjedha përpara shtyn diskun të hapet; kur rrjedha ndalon ose kthehet mbrapsht, disku lëkundet përsëri në ndenjëse nga graviteti. Swing checks are the workhorse for horizontal piping lines NPS 2″ and above.

Karakteristikat kryesore:

✅Rënie e ulët e presionit — Minimum pressure drop of approximately 0.5 psi kur hapet plotësisht

✅Dizajn i thjeshtë — Fewer moving parts, mirëmbajtje më të ulët

✅Ideale për diametra të mëdhenj — Common choice for NPS 2″ and above

✅Më e mira për ujë dhe lëngje të tjera

❌Kërkohet instalimi horizontal — Must be installed in horizontal lines

❌Slower closing response — Can lead to water hammer in systems with rapid flow reversals

Cast iron swing check valve for pump discharge

2. Valvula kontrolluese e heshtur e ngarkuar me pranverë

A spring loaded silent check valve uses a spring-assisted disc that closes the instant forward flow ceases — before reverse flow can occur. The spring force ensures positive seating regardless of pipe orientation, making it ideal for vertical installations and systems where water hammer must be minimized.

Karakteristikat kryesore:

✅Instant closure — Closes before flow reversal, eliminating water hammer

✅Any orientation — Works in horizontal, vertical, or any angle

✅Silent operation — No slamming noise

✅Low cracking pressure — Opens with minimal upstream pressure

❌ Rënie më e lartë e presionit — Higher than swing check valves

Spring loaded silent check valve for pump protection

3. Dual Plate Check Valve

A dual plate check valve (also called double door or wafer check valve) uses two spring-loaded semi-circular plates hinged at the center. It is the go-to choice when weight and space matter. The compact wafer design saves significant installation space and reduces pipeline weight.

Karakteristikat kryesore:

✅Compact design — Wafer type saves space

✅Të lehta — 60-80% lighter than conventional swing check valves

✅Fast closing — Spring-assisted plates close quickly

✅Rënie e ulët e presionit — Streamlined flow path

✅Ideal for pump outlets — Preferred on pump discharge lines

❌Not for reciprocating pumps — Not recommended for pulsating flow

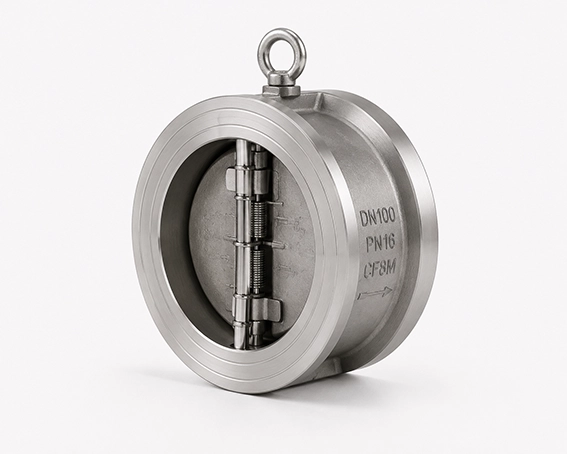

Dual plate wafer check valve for compact installations

Comparison Table — Swing vs Spring Loaded vs Dual Plate

How to Select the Right Industrial Check Valve for Your Pump System

Hapi 1: Define Your Installation Orientation

Horizontal piping: Swing check valve or dual plate check valve

Vertical piping: Spring loaded silent check valve (or lift check valve)

Tight spaces: Dual plate check valve (wafer type)

Hapi 2: Consider Water Hammer Risk

If your pump system experiences rapid flow reversals, frequent starts and stops, or long discharge pipelines, water hammer is a real concern. Spring loaded silent check valves are specifically designed to eliminate water hammer. For high-flow applications with moderate risk, dual plate check valves offer faster closing than swing checks.

Hapi 3: Size the Valve Correctly

E duhura pump system check valve sizing is essential. A valve that is too large will not open fully, causing chattering and premature wear. A valve that is too small creates excessive pressure drop.

Sizing Guidelines:

Rregulli i madh: Minimum pressure drop for swing check valves is 0.5 psi; for lift checks, 2.0 psi

Flow velocity: Should not exceed 10 feet per second (fps); 7 fps is a conservative target

Match to actual flow conditions: Size the valve to fit the actual flow, not just the line size

Hapi 4: Consider Media and Temperature

Uji, ujërat e zeza, mild chemicals: Cast iron swing check valve with EPDM seal (0°C to +80°C)

Corrosive media, high-temperature: Stainless steel spring loaded silent check valve (-40°C to +210°C)

Steam, high-temperature process: Metal-seated options available

industrial check valve applications water hvac pipeline system

Application-Specific Recommendations

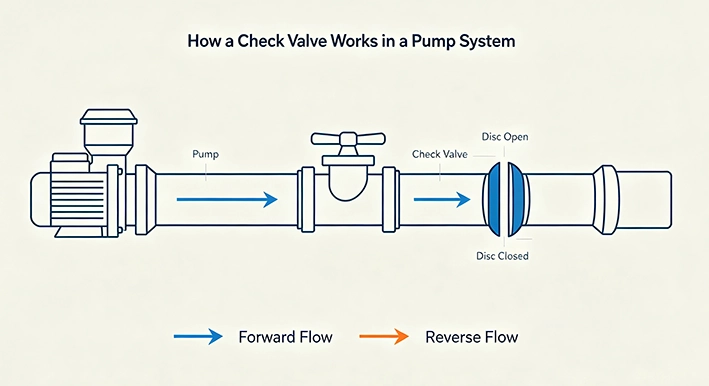

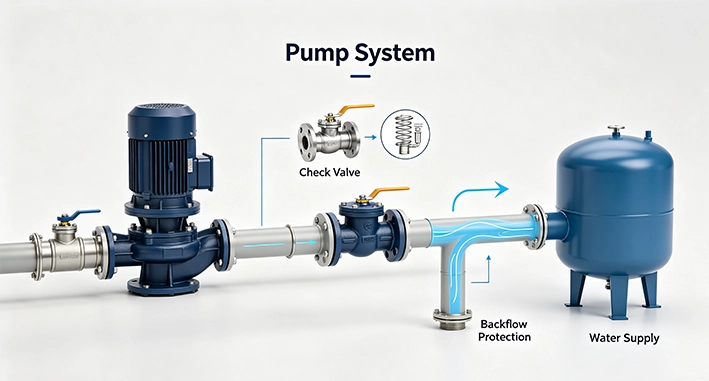

pump system check valve working principle diagram

Pyetjet e bëra më shpesh

Q1: What is the difference between a swing check valve and a spring loaded silent check valve?

A: A swing check valve uses a hinged disc that swings open and closes by gravity. It must be installed horizontally and has a slower closing response, which can cause water hammer. A spring loaded silent check valve uses a spring-assisted disc that closes instantly when flow stops, eliminating water hammer and working in any orientation.

Q2: Si mund ta parandaloj çekiçin e ujit në sistemin tim të pompës?

A: Choose a check valve with fast closing response — spring loaded silent check valves are specifically designed for this purpose. Dual plate check valves also close faster than swing checks. Ensure the valve is properly sized for your flow conditions.

Q3: Which check valve is best for vertical installation?

A: For vertical-up flow, use a spring loaded silent check valve. Unlike swing check valves, spring-loaded designs do not rely on gravity for closure and work reliably in vertical piping.

Q4: How do I size a check valve for my pump system?

A: Size the valve based on actual flow conditions, not just line size. Ensure the valve remains fully open at normal operating conditions. Follow manufacturer pressure drop guidelines: 0.5 psi minimum for swing check valves. Keep flow velocities below 10 fps (7 fps recommended).

P5: Can I use a swing check valve in a vertical pipeline?

A: Nr. Swing check valves rely on gravity to close the disc and must be installed horizontally. For vertical pipelines, use a spring loaded silent check valve or a lift check valve.

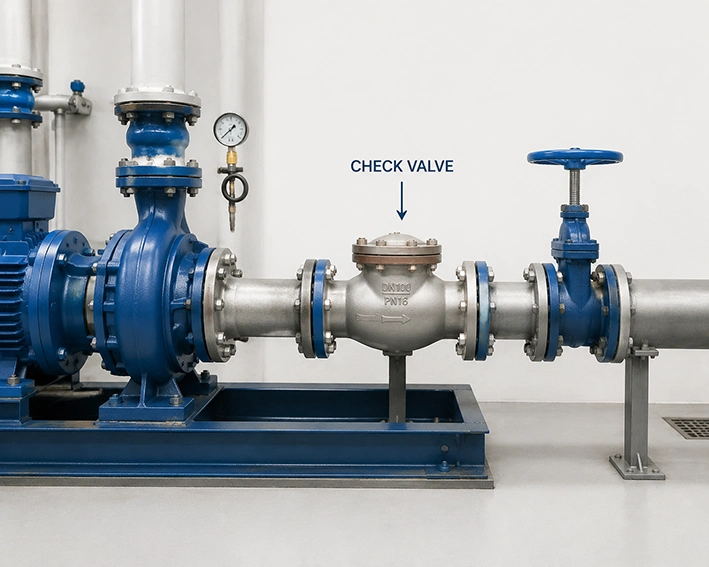

Check valve installed on pump system pipeline
